Part Number # 2736
SKU # 2443497
Image Disclaimers Message
Brand: LEVITON
2736
Leviton 2736
Part Number # 2736
SKU # 2443497
$657.50 / 10Each
Typical price:$1477.20 / Each
LEVITON 2736 Key Features
| Brand: | LEVITON |
|---|---|
| Part Number # : | 2736 |
| SKU #: | 2443497 |
| Amperage Rating: | 30 A |
| Dimensions: | 33 in Dia |
| Horsepower: | 10 hp |
| NEMA Rating: | NEMA L16-30R |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Temperature Rating (Degrees F): | -40 to 60 deg C |
| Terminal Type: | Back Wire |
| Type: | 3-Phase Grounding Receptacle |
| Color: | White |
| Country of origin: | MX |
| Material: | Nylon |
| Manufacturer Name: | Leviton |
| UNSPSC: | 39121406 |
| UPC: | 00078477806470 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$657.50 / 10Each
Typical price:$1477.20 / Each
Quantity:

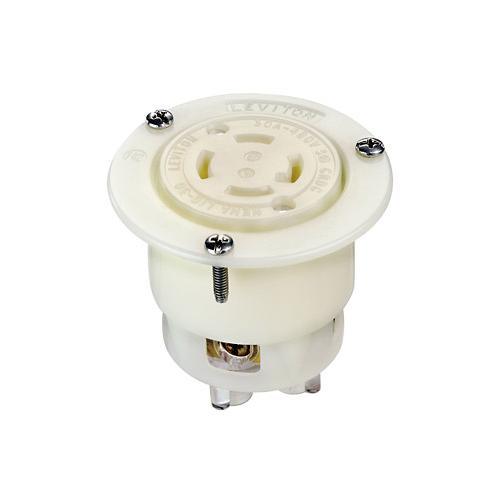

- Leviton, 2736, Locking Flanged Outlet, 3-Phase Grounding Receptacle, 480 V AC, 30 A, 10 hp, 3 Pole, 4 Wires, NEMA L16-30R NEMA Rating, Industrial Grade, -40 to 60 deg C, Back Wire Terminal, Nylon, White, 33 in Dia Dimensions
2736 Application
Commercial Applications2736 Item Features
- 14 to 8 AWG terminal accommodation, grounding
- 2000 VAC minimum dielectric strength
- Maximum 30 deg C after 250 cycles OL at 200% rated current temperature rise
- Nylon face material, solid brass line contacts
- #10-32 brass terminal screws
- #8-32 brass grounding screws
- Thermoplastic nylon strap
- Brass-hot, green ground, white-neutral terminal ID
- Ratings are permanently marked on device product ID
- Rugged nylon flange fits flush and wont crack in high abuse applications
- Individual deep-funneled chamfered wire wells guide each wire into rectangular chambers
- Wire clamps bundle stranded wire without cutting wire strands
2736 Standards
ANSI C73|CSA C22.2 No.42 File No. LR406|NOM 057|NEMA WD1/WD6|UL 498 File No. E13399/E13393|UL94 V-2 Flammability RatingSKU #2443497Part Number #2736UNSPSC39121406UPC00078477806470
