Part Number # 3032-2I
SKU # 2450108
Image Disclaimers Message
Brand: LEVITON
3032-2I
Leviton 3032-2I
Part Number # 3032-2I
SKU # 2450108
$745.50 / 30Each
Typical price:$2521.20 / Each
LEVITON 3032-2I Key Features
| Brand: | LEVITON |
|---|---|
| Part Number # : | 3032-2I |
| SKU #: | 2450108 |
| Actuator: | Toggle |
| Amperage Rating: | 30 A |
| Contact Configuration: | DP |
| Contact Rating: | 2 hp at 120 to 240 V AC, 2 hp at 120 to 240 VAC |
| Dimensions: | 46 in H x 1.31 in W x 13 in D |
| Enclosure: | NEMA WD-1/WD-6 |
| Environmental Conditions: | -40 to 65 deg C Operating Temperature |
| Mounting: | Surface |
| Number of Poles: | 2 |
| Operating Cycles: | 50000 cycles |
| Terminal Type: | Back/Side Wire |
| Type: | Self-Grounding |
| Color: | Ivory |
| Country of origin: | MX |
| Material: | Thermoplastic |
| Manufacturer Name: | Leviton |
| UNSPSC: | 39122211 |
| UPC: | 00078477361924 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$745.50 / 30Each
Typical price:$2521.20 / Each
Quantity:

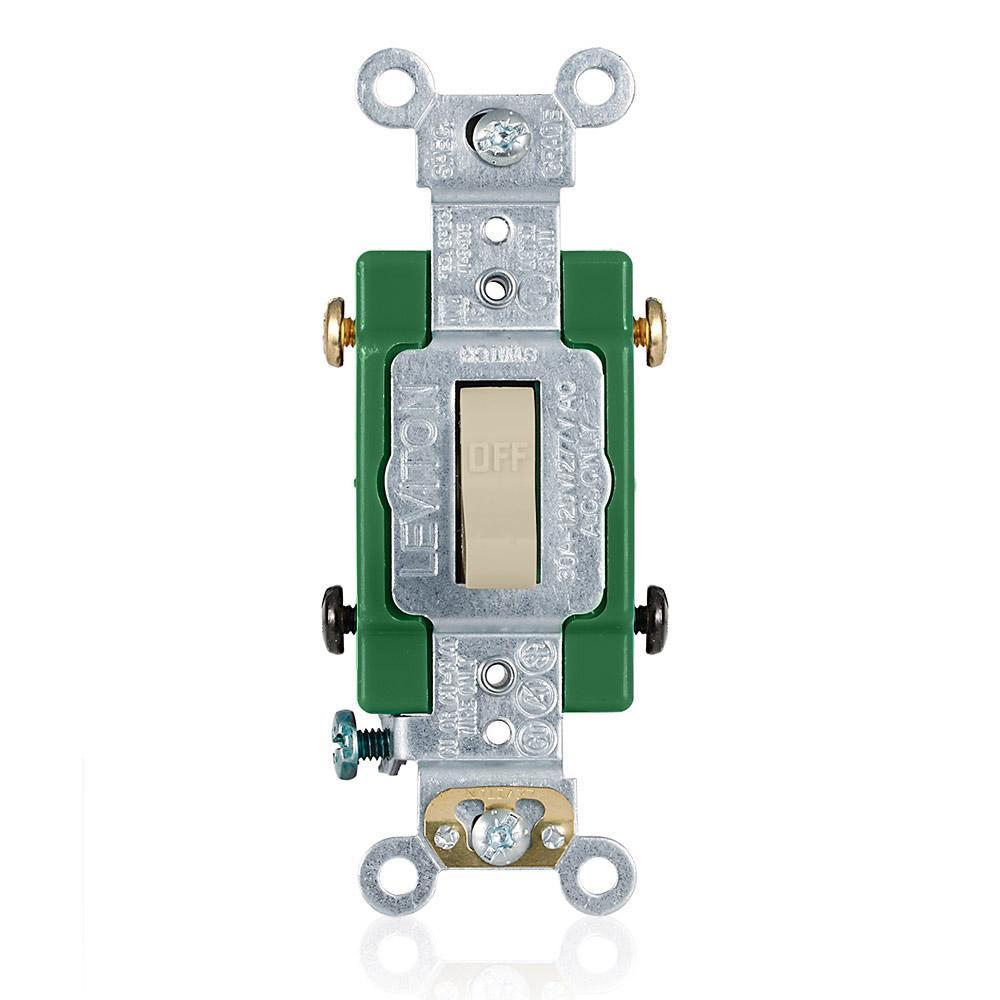

- Leviton, 3032-2I, Toggle Switch, Self-Grounding, 120/277 V AC, 30 A, 2 hp Power, 2 hp at 120 to 240 V AC Contact, 2 Pole, Toggle Actuator, NEMA WD-1/WD-6 Enclosure, Surface Mounting, Back/Side Wire Terminal, 50000 Cycles Operating Cycles, Thermoplastic, Ivory, Environmental Conditions: -40 to 65 deg C Operating Temperature, 46 in H x 1.31 in W x 13 in D Dimensions
3032-2I Application
Commercial Applications3032-2I Item Features
- Top of the line industrial quality
- Heavy gauge copper alloy brush arm for superior performance
- Large silver alloy contacts for long life prevent sticking, welding and excessive pitting
- Fully enclosed switch mechanism in rugged housing for strength, tracking and arc resistance
- Self-grounding clip (self grounding when used with a grounded metal wallbox)
- 2 hp at 120 to 277 VAC power rating
3032-2I Standards
RoHS Compliant|ANSI C73|CSA C22.2 No. 111 File No. 152105|NOM 057|Federal Specification WS896E File No. E7458|UL 20|UL94 V-2 Flammability RatingSKU #2450108Part Number #3032-2IUNSPSC39122211UPC00078477361924
