5252-GY
Leviton 5252-GY
Part Number # 5252-GY
SKU # 2468334
$358.50 / 50Each
Typical price:$1210.50 / Each
LEVITON 5252-GY Key Features
| Brand: | LEVITON |
|---|---|
| Part Number # : | 5252-GY |
| SKU #: | 2468334 |
| UNSPSC: | 39121406 |
| UPC: | 00078477819579 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$358.50 / 50Each
Typical price:$1210.50 / Each
Quantity:

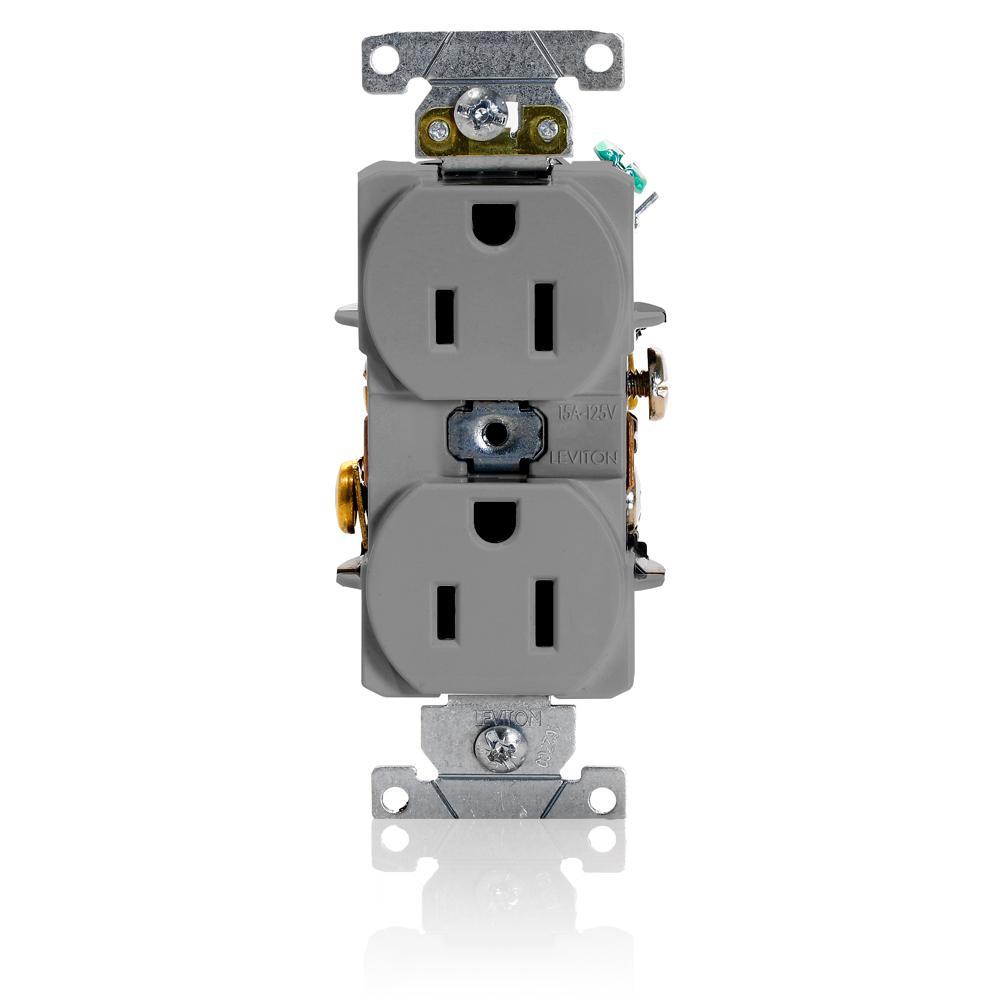

- Leviton, 5252-GY, Straight Blade Duplex Receptacle, Heavy Duty, 125 V AC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Industrial/Specification Grade, NEMA WD-1/WD-6 Enclosure, -40 to 60 deg C, Back/Side Wire Terminal, Thermoplastic, Gray, 4.06 in H x 1.55 in W x 1.12 in D Dimensions
5252-GY Application
Commercial Applications5252-GY Item Features
- Impact resistant thermoplastic nylon cover and body
- Smooth face does not collect dirt
- Four corner latches securely fasten face
- Large, triple-wipe, brass T contacts for superior contact and conductivity
- Back and side wiring options
- Brass terminal screws to reduce conductor oxidation
- Break-off tabs for easy two-circuit conversion
- Apron barrier to prevent accidental contact between terminal screw heads and metal box
- Exclusive V-shaped, serrated back-wiring clamps for superior contact and conductivity
- Wire lead receptacles for fast and easy installation
- Wallbox mounting
- Self-grounding
- 1-phase
- 2000 VAC minimum dielectric strength
- Industrial series heavy duty specification grade
- Galvanized steel strap
- 8-hole feed-through wired termination
- 14 to 10 AWG wire terminal
5252-GY Standards
NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Fed Spec WC-596 (File E13399);UL Listed 498 (File E13399)SKU #2468334Part Number #5252-GYUNSPSC39121406UPC00078477819579
Image provided may only be a representation of final product and may include optional equipment
