5622-2W
Leviton 5622-2W
Part Number # 5622-2W
SKU # 2465332
$65.32 / 2Each
Typical price:$164.38 / Each
LEVITON 5622-2W Key Features
| Brand: | LEVITON |
|---|---|
| Part Number # : | 5622-2W |
| SKU #: | 2465332 |
| Action: | Maintained/Momentary |
| Actuator: | Rocker |
| Amperage Rating: | 20 A |
| Contact Rating: | 20 A at 120/277 V AC |
| Dimensions: | 46 in H x 1.76 in W x 1.6 in D |
| Environmental Conditions: | -40 to 120 deg C Operating Temperature |
| Mounting: | Surface |
| Number of Poles: | 2 |
| Operating Cycles: | 50000 cycles |
| Terminal Type: | Back/Side Wire |
| Type: | Self-Grounding |
| Country of origin: | MX |
| Material: | Thermoplastic |
| Manufacturer Name: | Leviton |
| UNSPSC: | 39122226 |
| UPC: | 00078477515198 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$65.32 / 2Each
Typical price:$164.38 / Each
Quantity:
- Leviton, 5622-2W, AC Quiet Switch, Self-Grounding, 120/277 V AC, 20 A, 1 hp, 2 hp Power, 20 A at 120/277 V AC Contact, 2 Pole, Maintained/Momentary Action, Rocker Actuator, Surface Mounting, Back/Side Wire Terminal, 50000 Cycles Operating Cycles, Thermoplastic, White, Environmental Conditions: -40 to 120 deg C Operating Temperature, 46 in H x 1.76 in W x 1.6 in D Dimensions
5622-2W Application
Commercial Applications5622-2W Item Features
- Full rated current capacity with tungsten, fluorescent or resistive loads
- Motor capacity is 80% of switch rating
- Back and side wiring terminals accept both solid and stranded wire for easy installation
- New architecturally styled smooth action concave rocker
- Heavy duty impact resistant thermoplastic construction for long service life in commercial applications
- Two ground connection options a green grounding screw and a self-grounding clip
- Engineered for fine tolerances and top performance
- Decora plus switches feature impact resistant thermoplastic construction for long service life
5622-2W Standards
ANSI C73|CSA File No. LR3413|CSA C22.2 No. 111 File No. 152105|Federal Specification WS896E File No. E7458|NEMA WD1/WD6|NOM 057|UL 20|UL94 V-2 Flammability RatingSKU #2465332Part Number #5622-2WUNSPSC39122226UPC00078477515198

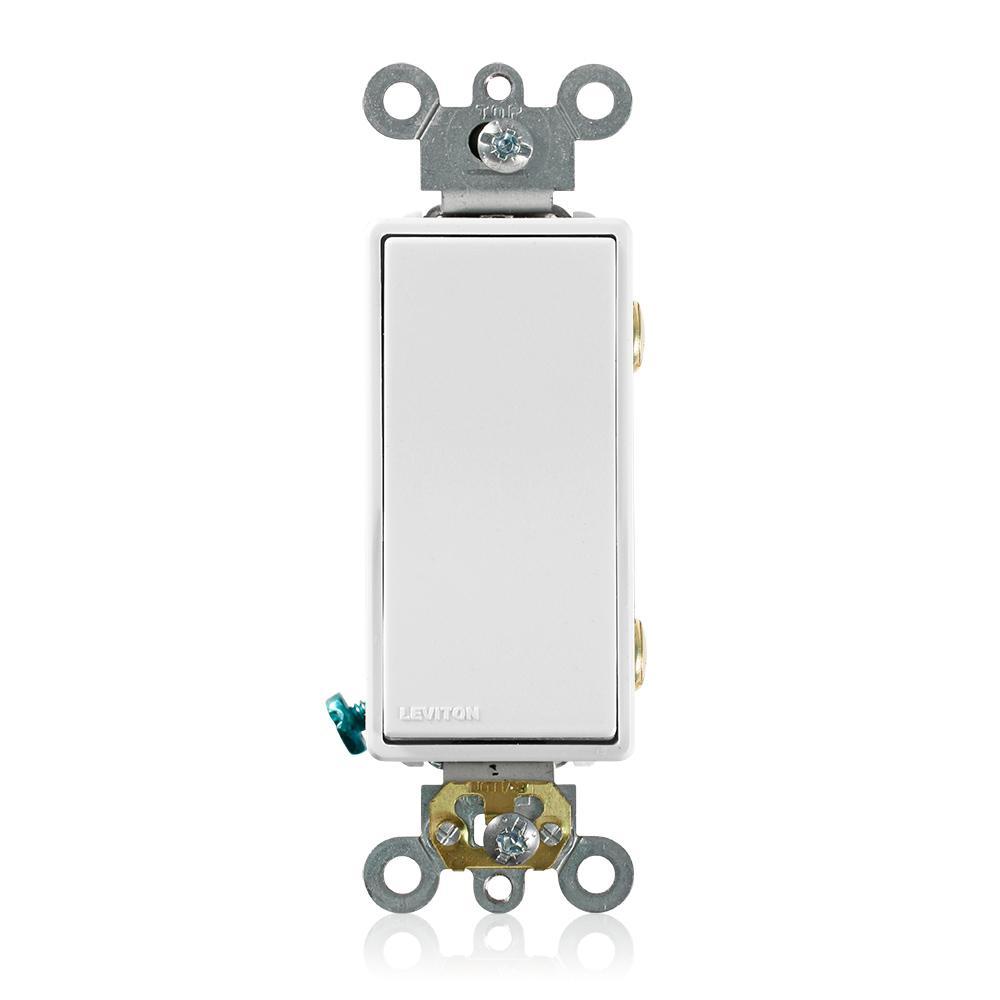

Image provided may only be a representation of final product and may include optional equipment
