Part Number # 9550-P
SKU # 2448628
Image Disclaimers Message
Brand: LEVITON
9550-P

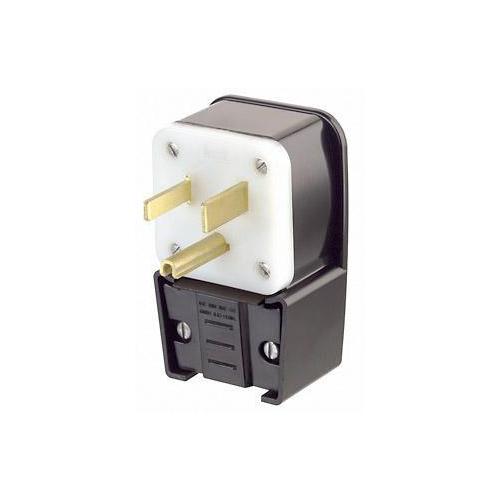

Leviton 9550-P
Part Number # 9550-P
SKU # 2448628
$774.50 / 10Each
Typical price:$1179.80 / Each
LEVITON 9550-P Key Features
| Brand: | LEVITON |
|---|---|
| Part Number # : | 9550-P |
| SKU #: | 2448628 |
| Amperage Rating: | 50 A |
| Cord Diameter: | 5/8 to 1-3/8 in |
| Dimensions: | 4.37 in H x 2.76 in W x 1.89 in D |
| Horsepower: | 2 hp |
| NEMA Rating: | NEMA 5-50P |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 60 deg C |
| Type: | Angled Cable Mount Grounding |
| Color: | Black |
| Country of origin: | MX |
| Material: | Nylon |
| Manufacturer Name: | Leviton |
| UNSPSC: | 0 |
| UPC: | 00078477809884 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$774.50 / 10Each
Typical price:$1179.80 / Each
Quantity:
- Leviton 9550-P Straight Blade Plug, Angled Cable Mount Grounding, 125 V AC, 50 A, 2 hp, 2 Pole, 3 Wires, NEMA 5-50P NEMA Rating, Industrial Grade, 5/8 to 1-3/8 in Diameter Cord, -40 to 60 deg C, Nylon, Black, 4.37 in H x 2.76 in W x 1.89 in D Dimensions
9550-P Application
Industrial Applications9550-P Item Features
- Rugged cord clamp for secure cable grip accommodates cord diameters from 5/8 to 1-3/8 in and does not tear conductor jacket
- Made of tough, heavy duty nylon for long service life
- Devices feature heavy sectioned dead front right angle
- Pressure clamp terminal design
- Terminals accept up to #4 AWG stranded conductor
- Solid brass blades for maximum conductivity
- 10 to 4 AWG terminal accommodation
- Super tough nylon body
9550-P Standards
ANSI C73|NOM 057|NEMA WD1/WD6|CSA C22.2 No. 42 File No. 152105|UL 498 File No. E13399|UL94 V-2 Flammability RatingSKU #2448628Part Number #9550-PUNSPSC0UPC00078477809884
