Part Number # AGTR2-W
SKU # 2447300
AGTR2-W
Leviton AGTR2-W
Part Number # AGTR2-W
SKU # 2447300
LEVITON AGTR2-W Key Features
| Brand: | LEVITON |
|---|---|
| Part Number # : | AGTR2-W |
| SKU #: | 2447300 |
| Dimensions: | 1.68 in W x 1.38 in D x 4.21 in H |
| Type: | Dual Function |
| UNSPSC: | 39121406 |
| UPC: | 00078477744420 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Leviton AGTR2-W
Brand: LEVITON
Part Number: AGTR2-W

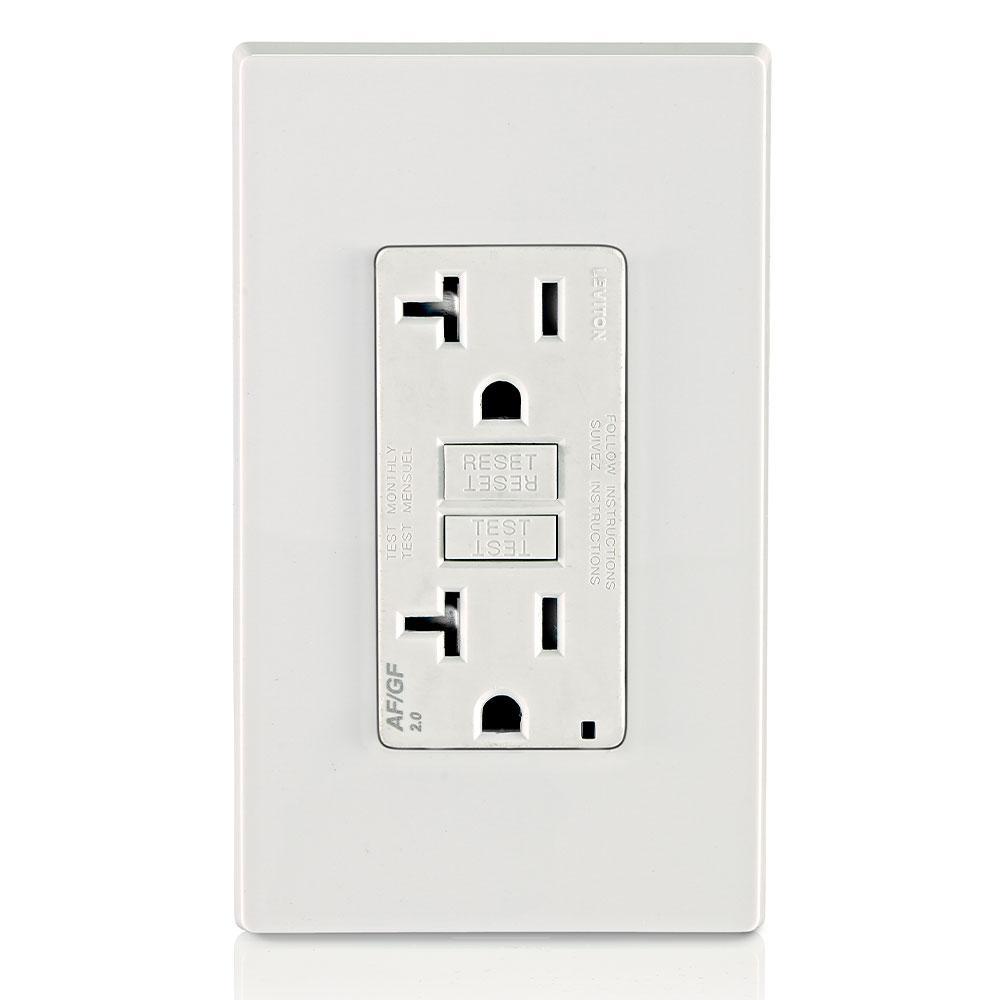

Leviton® Decora® AFCI/GFCI Receptacle, Dual Function, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R Rating, -35 to 66 deg C, Back/Side Wire Terminal, Polycarbonate, White, 1.68 in W x 1.38 in D x 4.21 in H Dimensions
Additional Description: LVTN-AGTR2-W WH 2-FUNCTION AFCI ST GFCI REC 20A-125V
Catalog Description: 20 Amp, 125 Volt Dual Function AFCI/GFCI Receptacle, 20 Amp Feed-Through, Tamper-Resistant, Monochromatic, back and side wired, nylon wallplate/faceplate, screws and self-grounding clip included – White
AGTR2-W Application
For protection in residential kitchens and laundry areasAGTR2-W Includes
Nylon Wallplate/Faceplate, Screws and Self-Grounding ClipAGTR2-W Item Features
- Trip threshold meets or exceeds UL requirements for tripping time on ground faults and on both series and parallel arcs for optimal safety
- Engineered to meet the latest UL standard for auto-monitoring (self-test)
- On initial power up, tests the GFCI circuit within 3 sec
- Patented lockout action prevents reset if the device is damaged
- Status indicator light provides simple, intuitive feedback on power and protection status as well as indication of line load reversal for at a glance analysis
- Test and reset buttons are readily accessible on the face of the device
- Improved immunity to high frequency noise reduces nuisance tripping
- Superior resistance to electrical surges and over voltages enhancing reliability
- Patented bridge contact design provides individual sets of contacts for receptacle face and downstream receptacles, no power will be delivered to receptacle face if improperly wired (line load reversed)
- 1-piece T-design trip latch mechanism provides efficient operation
- Impact-resistant thermoplastic cover and body for durability
- Expanded wiring options with nine back wire holes (two for each line and load connection plus one for ground with an internal clamp) for easy installation
- Compatible with all Decora devices and wallplates for multi-gang installation option
- Tamper-resistant to comply with the latest NEC requirements for tamper-resistant receptacles in residences and childcare facilities
- https://www.youtube.com/embed/ajINNibEMjA
AGTR2-W Standards
ANSI C73|CSA C22.2/M-02A|Federal Specification WC-596|NEMA WD6|NOM Certified|UL 498|UL 1699AAGTR2-W Warranty
2 Years LimitedSKU #2447300Part Number #AGTR2-WUNSPSC39121406UPC00078477744420
Image provided may only be a representation of final product and may include optional equipment
