Part Number # C2623
SKU # 2300905
Image Disclaimers Message
Brand: LEVITON
C2623

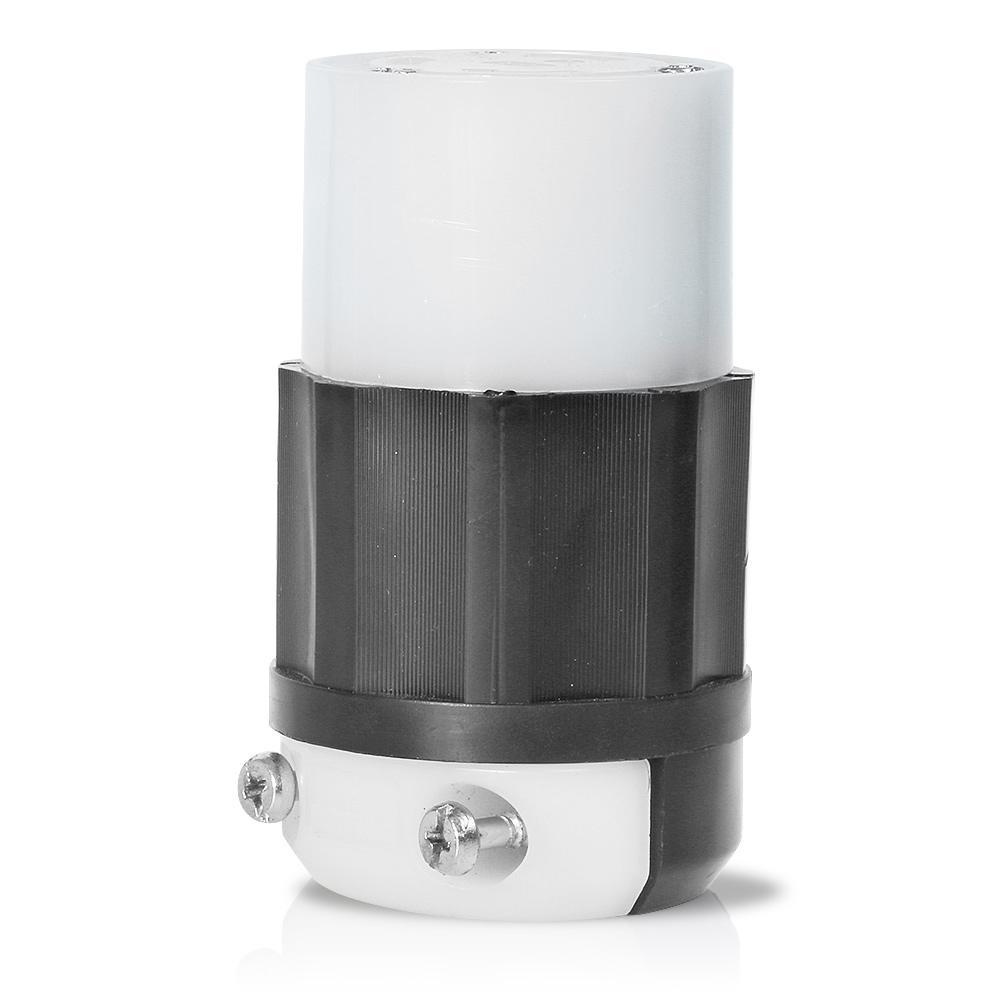

Leviton C2623
Part Number # C2623
SKU # 2300905
$23.80 / Each
Typical price:$109.69 / Each
LEVITON C2623 Key Features
| Brand: | LEVITON |
|---|---|
| Part Number # : | C2623 |
| SKU #: | 2300905 |
| Amperage Rating: | 30, 30 A |
| Cord Diameter: | 0.385 to 0.93, 0.385 to 0.93 in |
| Dimensions: | 28 in Dia x 3.53 in L |
| Horsepower: | 2, 2 hp |
| NEMA Rating: | NEMA L6-30R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 60, -40 to 60 deg C |
| Terminal Type: | Screw |
| Type: | 1-Phase Cable Mount Grounding |
| Color: | Black/White |
| Country of origin: | MX |
| Material: | Nylon |
| Manufacturer Name: | Leviton |
| UNSPSC: | 39121402 |
| UPC: | 00078477811139 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$23.80 / Each
Typical price:$109.69 / Each
Quantity:
- Leviton, C2623, Locking Connector, 1-Phase Cable Mount Grounding, 250 V AC, 30 A, 2 hp, 2 Pole, 3 Wires, NEMA L6-30R NEMA Rating, Industrial Grade, 0.385 to 0.93 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Nylon, Black/White, 28 in Dia x 3.53 in L Dimensions
C2623 Specifications
- Super tough nylon body resists damage from severe impact, abrasion and chemicals
- Ergonomic, fluted body design with radial grip ridge is ideal for gripping, turning and pulling
- Cord clamp does not have to be disassembled from body for wiring - accepts wire mesh connection strain reliefs
- 1-piece, rivetless 0.035 in THK brass connector contacts and solid brass plug blades provide maximum conductivity and long service life
- Power Indication™ 15 a locking plugs and connectors equipped with green neon bulb rated at 30000 hr (24/7 for 3.5 years)
- Power Indication™ 20 and 30 a locking plugs and connectors equipped with green LED rated at 100000 hr (24/7 for 10 years)
- Impact modified nylon body
C2623 Application
Industrial ApplicationsC2623 Item Features
- Super tough nylon body resists damage from severe impact, abrasion and chemicals
- Ergonomic, fluted body design with radial grip ridge is ideal for gripping, turning and pulling
- Cord clamp does not have to be disassembled from body for wiring - accepts wire mesh connection strain reliefs
- 1-piece, rivetless 0.035 in THK brass connector contacts and solid brass plug blades provide maximum conductivity and long service life
- Power Indication 20 and 30 a locking plugs and connectors equipped with green LED rated at 100000 hr (24/7 for 10 years)
- https://www.youtube.com/embed/H3ZhlBYwRZw
C2623 Standards
ANSI C-73|CSA File No. LR-406 Certified|NEMA WD-1/WD-6|UL 498 File No. E13393|UL94 V-2 Flammability Rating|ANSI C73|CSA File No. LR406|NOM 057 Certified|Federal Specification WC-596|File E13393 ListedSKU #2300905Part Number #C2623UNSPSC39121402UPC00078477811139
