Part Number # PCSKY
SKU # 2451906
PCSKY
Leviton PCSKY
Part Number # PCSKY
SKU # 2451906
$3335.20 / 10Each
Typical price:$5081.10 / Each
LEVITON PCSKY Key Features
| Brand: | LEVITON |
|---|---|
| Part Number # : | PCSKY |
| SKU #: | 2451906 |
| Amperage Rating: | 10 mA |
| Dimensions: | 1.28 in Dia x 2.25 in H |
| Enclosure Type: | IP65 |
| Environmental Conditions: | -11 to 60 deg C Operating Temperature, 20% to 90% Non Condensing Humidity |
| Type: | Skylight |
| Country of origin: | US |
| Mounting type: | Screw |
| Sensitivity: | 0 to 2000 fc |
| Manufacturer Name: | Leviton |
| UNSPSC: | 45111808 |
| UPC: | 00078477235621 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3335.20 / 10Each
Typical price:$5081.10 / Each
Quantity:
Leviton PCSKY
Brand: LEVITON
Part Number: PCSKY

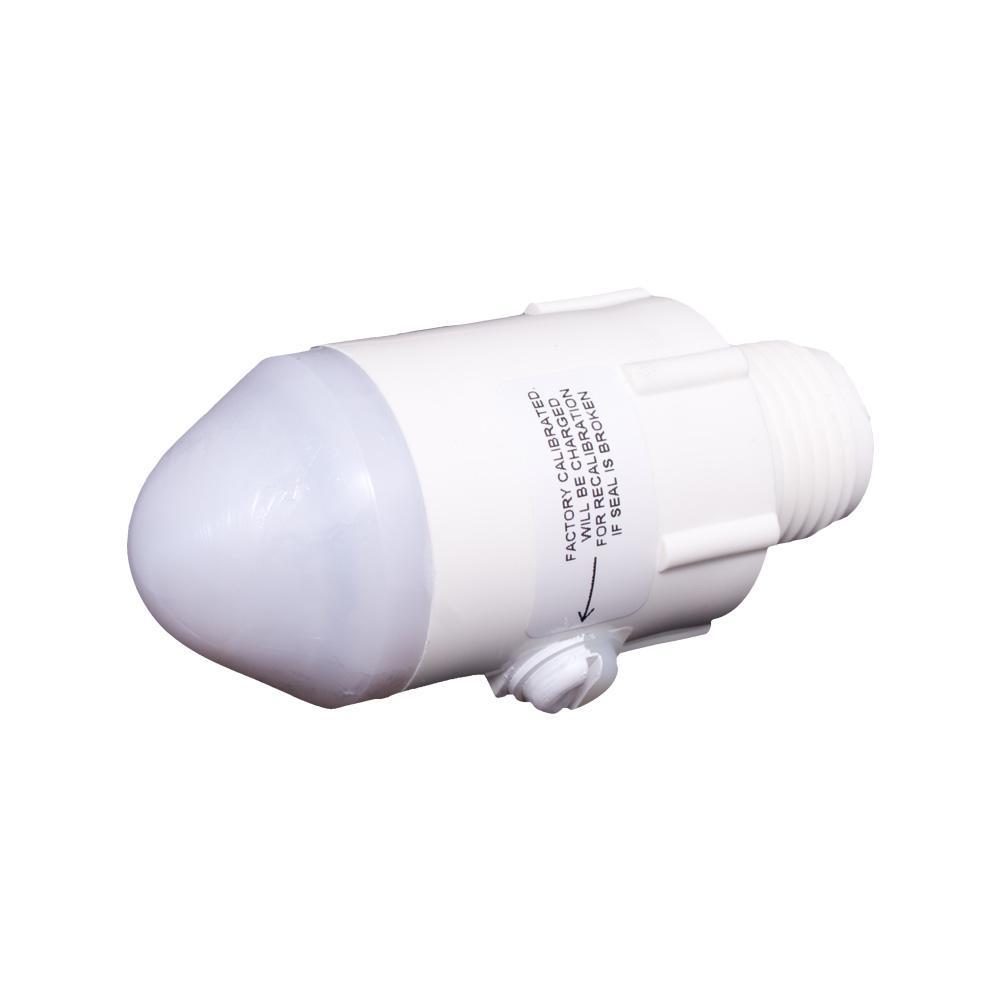

Leviton® Skylight Photocell, 24 VDC, 10 mA, Environmental Conditions: 12 to 140 deg F Operating Temperature, 14 to 185 deg F Storage Temperature, 1/2 in IPT Mounting, 1.28 in Dia x 2.25 in H Dimensions
Additional Description: LVTN-PCSKY LITE SENS SKYLITE FACTORY SET / 0-200FC
Catalog Description: Leviton Photocell, Skylight, 200-2500FC, Translucent Lens, 1/2" KO or Conduit, 24V Supply, 0-10VDC Output, White
PCSKY Application
Commercial ApplicationsPCSKY Includes
Dome/Frost LensPCSKY Item Features
- PCSKY skylight photocell with dark dome lens filters 90% of light level in skylight
- Default setting 1076 to 8072 FC sensing range, can be field adjusted to 8072 FC maximum sensing range
- Constant lighting at the optimal level for greater visual comfort and acuity, which contributes to improved productivity
- Provides convenient, automatic hands-free daylight harvesting when integrated with Leviton lighting control products
- Lowers electric bills by reducing usage of lighting where ambient natural light is also present
- Lumens maintenance opportunity compatible
- Indoor photocells designed with a flat Fresnel lens looks downward in a 60 deg cone of reference to measure actual light on the work surface and reduce the influence of stray light striking the photocell from nearby windows or incidental side lighting
- Measures light from any source in the visible spectrum within a 60 deg cone or 180 deg angle of response depending on the model
- PCSKY-000 skylight photocell with dark dome lens filters 90% of light level in skylight
- Can be field adjusted to 8072 FC max sensing range
- Up orientation
PCSKY Standards
ASHRAE 90.1|Title 24 CompliantPCSKY Warranty
2 Years LimitedSKU #2451906Part Number #PCSKYUNSPSC45111808UPC00078477235621
