Part Number # T5015-W
SKU # 2454678
Image Disclaimers Message
T5015-W

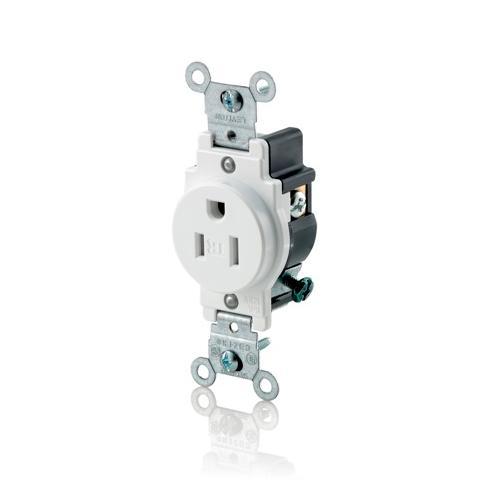

Leviton T5015-W
Part Number # T5015-W
SKU # 2454678
$337.50 / 50Each
Typical price:$514.50 / Each
LEVITON T5015-W Key Features
| Brand: | LEVITON |
|---|---|
| Part Number # : | T5015-W |
| SKU #: | 2454678 |
| Amperage Rating: | 15 A |
| Dimensions: | 46 in H x 1.31 in W x 16 in D |
| Horsepower: | 1/2 hp |
| NEMA Rating: | NEMA 5-15R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 60 deg C |
| Terminal Type: | Back/Side Wire |
| Type: | 1-Phase Self-Grounding Single Tamper Resistant |
| Color: | White |
| Country of origin: | MX |
| Material: | Thermoplastic |
| Manufacturer Name: | Leviton |
| UNSPSC: | 39121406 |
| UPC: | 00078477381793 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$337.50 / 50Each
Typical price:$514.50 / Each
Quantity:
- Leviton, T5015-W, Self-Grounding Single Tamper Resistant Straight Blade Receptacle, 125 V AC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial Grade, -40 to 60 deg C, Back/Side Wire Terminal, Thermoplastic, White, 46 in H x 1.31 in W x 16 in D Dimensions
T5015-W Item Features
- Manufactured to withstand the demands of commercial and institutional applications
- Heavy duty brass power contacts for maximum conductivity and plug retention
- Shallow design for maximum wiring room in box
- Self-grounding
- 1-phase
- 2000 VAC minimum dielectric strength
- #10-32 brass terminal screws
- 2000 VAC dielectric strength
- Maximum 30 deg C after 250 cycles OL at 200% rated current temperature rise
- Single, tamper resistant
- 14 to 10 AWG wire terminal
- Thermoplastic nylon face
- #8-32 brass grounding screws
- Zinc plated steel strap and clamp nuts
- Brass-plated ground clips
- Brass triple wipe line contacts
- Tamper resistant single receptacle
T5015-W Standards
NEMA WD-1/WD-6|ANSI C-73|NOM 057|CSA C22.2 No. 42 File No. 152105|UL Federal Specification WC596 File No. E13399|UL 498 File No. E13399|UL94 V-2 Flammability RatingSKU #2454678Part Number #T5015-WUNSPSC39121406UPC00078477381793
