Part Number # WBR20-E
SKU # 2452950
WBR20-E
Leviton WBR20-E
Part Number # WBR20-E
SKU # 2452950
LEVITON WBR20-E Key Features
| Brand: | LEVITON |
|---|---|
| Part Number # : | WBR20-E |
| SKU #: | 2452950 |
| Amperage Rating: | 20 A |
| Dimensions: | 3.28 in H x 1.71 in W x 1.07 in D |
| Horsepower: | 1 hp |
| NEMA Rating: | NEMA 5-20R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Terminal Type: | Back/Side Wire |
| Type: | Duplex Weather Resistant |
| Country of origin: | MX |
| Material: | Polybutylene Terephthalate/Polyester Blend |
| Manufacturer Name: | Leviton |
| UNSPSC: | 39121406 |
| UPC: | 00078477907726 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Leviton WBR20-E
Brand: LEVITON
Part Number: WBR20-E
Leviton® Straight Blade Receptacle, Duplex Weather Resistant, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Industrial Grade, -40 to 75 deg C, Back/Side Wire Terminal, Polybutylene Terephthalate/Polyester Blend, Black, 3.28 in H x 1.71 in W x 1.07 in D Dimensions
Additional Description: LVTN-WBR20-E EB WR DUPLEX REC 2P3W GROUND 20A125V
Catalog Description: 20 Amp, 125 Volt, NEMA 5-20R, 2P, 3W, Wide Body Duplex Receptacle, Straight Blade, Industrial Grade, Self Grounding, Weather-Resistant, Back & Side Wired, Nickel-Plated Brass Strap - BLACK
WBR20-E Standards
ANSI C73SKU #2452950Part Number #WBR20-EUNSPSC39121406UPC00078477907726

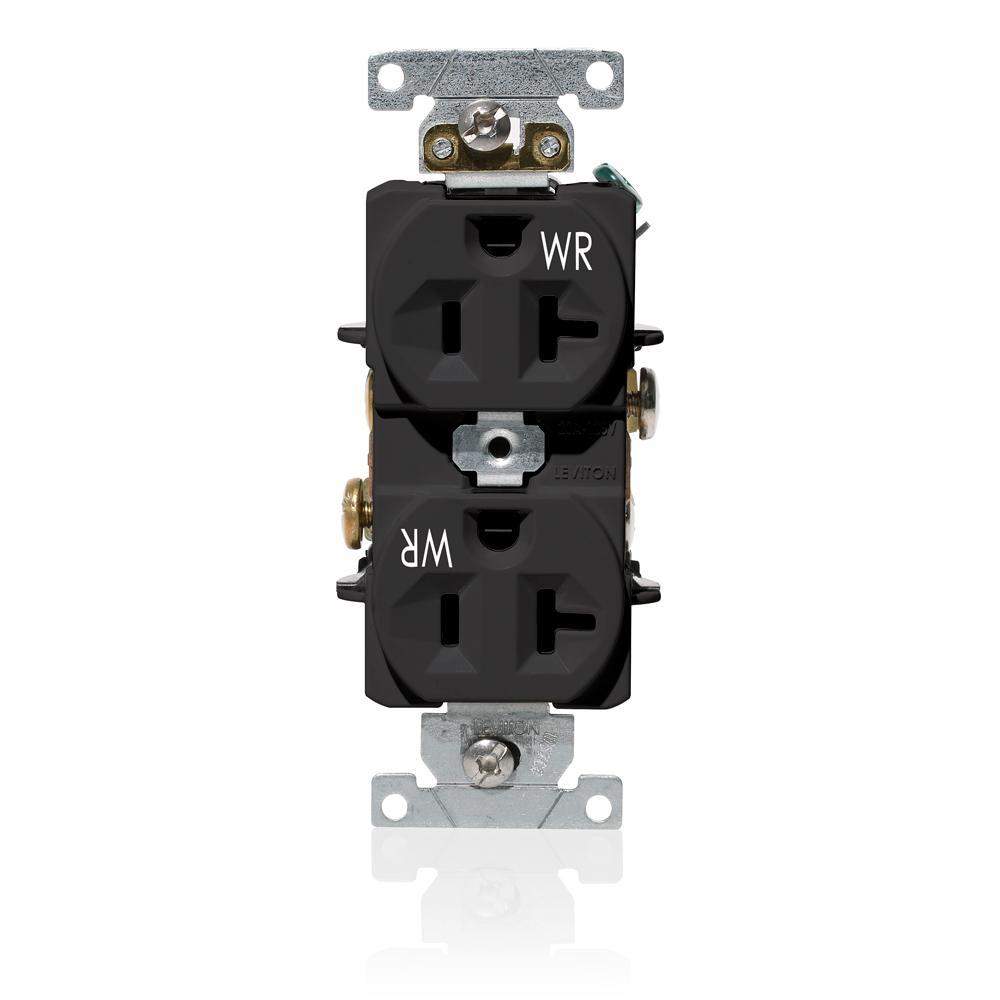

Image provided may only be a representation of final product and may include optional equipment
