Part Number # LFJ600301CID-HX
SKU # 2348183
Image Disclaimers Message
LFJ600301CID-HX

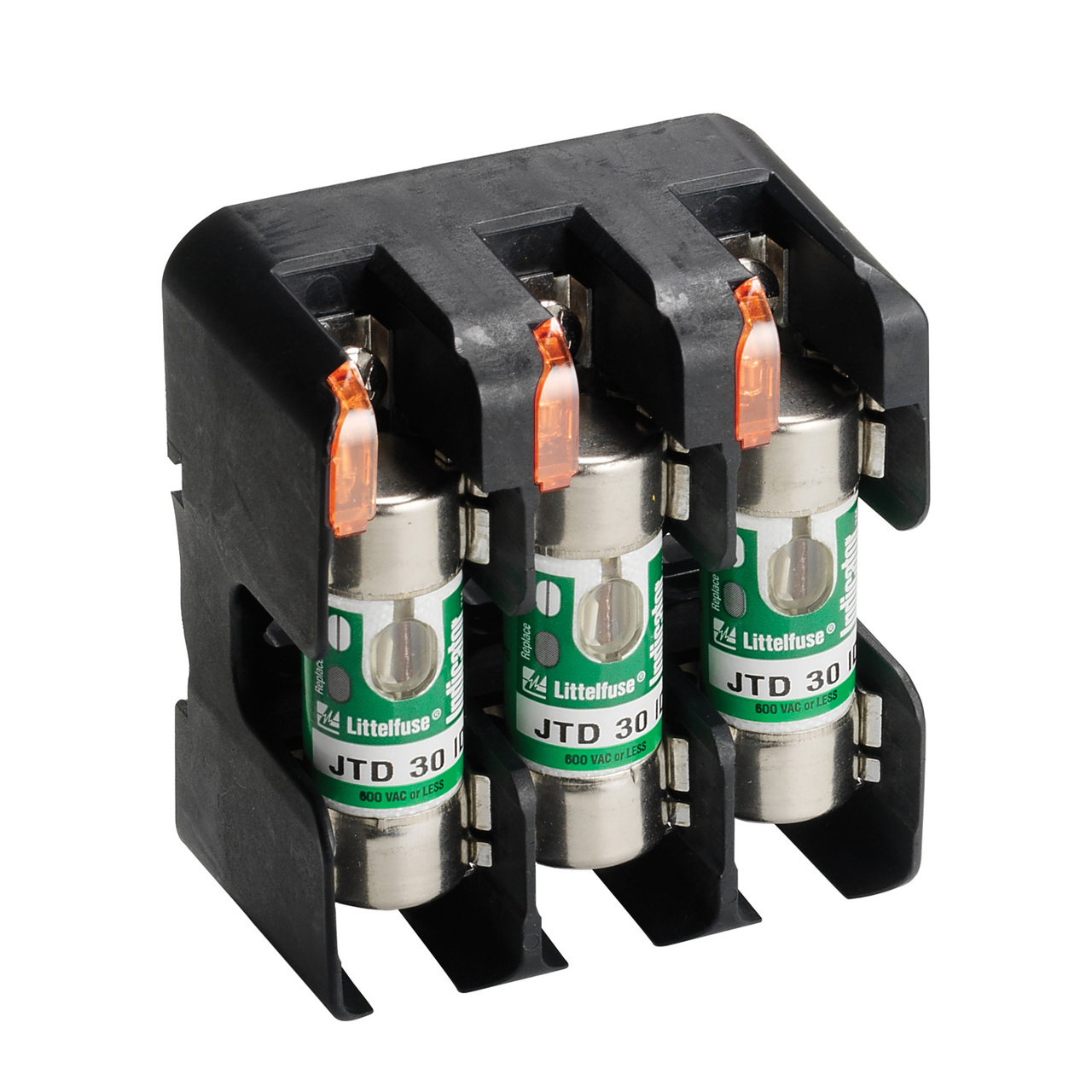

Littelfuse LFJ600301CID-HX Fuse Block
Part Number # LFJ600301CID-HX
SKU # 2348183
$33.04 / Each
Typical price:$82.60 / Each
Littelfuse LFJ600301CID-HX Key Features
| Brand: | Littelfuse |
|---|---|
| Part Number # : | LFJ600301CID-HX |
| SKU #: | 2348183 |
| Amperage Rating: | 30 A |
| Class: | J |
| Dimensions: | 1.95 in H x 3.25 in W x 2.70 in L |
| Number of Poles: | 1 |
| Series: | LFJ |
| Temperature Rating (Degrees F): | 125 deg C |
| Type: | Indicating |
| Wire Size: | 6 to 14 AWG |
| Material: | Thermoplastic |
| Mounting type: | DIN Rail/Panel |
| Manufacturer Name: | Littelfuse |
| UNSPSC: | 39121629 |
| UPC: | 00007945822167 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$33.04 / Each
Typical price:$82.60 / Each
Quantity:
- Littelfuse, LFJ60030-1CIDHX, Fuse Blocks, Indicating, Series: LFJ, 600 V AC, 30 A, 1 Pole, Class: J, 6 to 14 AWG Wire, DIN Rail/Panel Mounting, 125 deg C, Thermoplastic, 1.95 in H x 3.25 in W x 2.70 in L Dimensions
LFJ600301CID-HX Item Features
- Space-saving design up to 45 % smaller
- Universal mounting holes for easy replacement
- One hand release from DIN rail for ferrule style fuses
- Reinforced fuse clips are standard on all Class J blocks
- Both hex and slot set screw options available on 30 A and 60 A box lugs
LFJ600301CID-HX Standards
UL Listed (File: E14721)|CSA Certified (File: LR7316)|RoHS CompliantSKU #2348183Part Number #LFJ600301CID-HXUNSPSC39121629UPC00007945822167
