Part Number # LS7R04002PS00L
SKU # 2405016
Image Disclaimers Message
LS7R04002PS00L

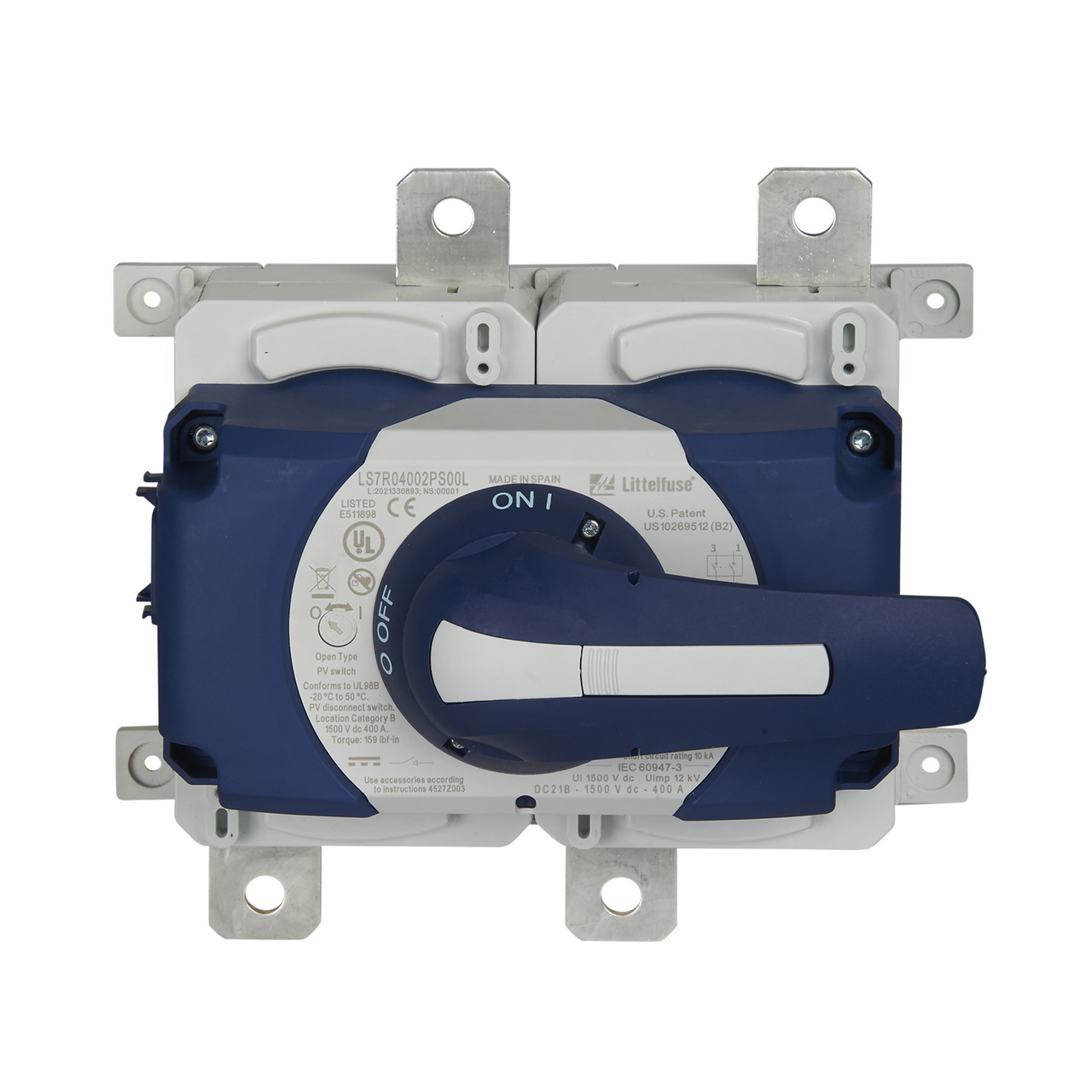

Littelfuse LS7R04002PS00L LS7R Disconnect Switches, 1500 VDC, 400 A
Part Number # LS7R04002PS00L
SKU # 2405016
$1489.48 / Each
Typical price:$2933.12 / Each
Littelfuse LS7R04002PS00L Key Features
| Brand: | Littelfuse |
|---|---|
| Part Number # : | LS7R04002PS00L |
| SKU #: | 2405016 |
| Actuator Type: | Handle |
| Amperage Rating: | 400 A |
| Series: | LS7R |
| Temperature Rating (Degrees F): | -4 to 122 deg F |
| Type: | Disconnect Switches |
| Country of origin: | ES |
| Material: | Plastic |
| Mounting type: | Screw |
| Manufacturer Name: | Littelfuse |
| UNSPSC: | 39122233 |
| UPC: | 00007945829343 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1489.48 / Each
Typical price:$2933.12 / Each
Quantity:
- Littelfuse LS7R04002PS00L Disconnect Switches, Disconnect Switches, Series: LS7R, 1.5 kV DC, 400 A, Handle Actuator, Screw Mounting, -4 to 122 deg F, Plastic
LS7R04002PS00L Item Features
- The patented operation system minimizes damage caused by arcs upon disconnection to increase product reliability and longevity
- Streamline design eliminates the need for external bridging links (jumpers) to lower heat dissipation for increased energy efficiency, decreased installation and maintenance time and reduced footprint for added design flexibility
- High-level disconnection insulation provides a barrier to stop conduction when switch is in off position for added safety
- The self-cleaning blade contacts eliminate performance degradation (from increased electrical resistance over time) to ensure consistent behavior across the products lifespan
- The internally-located "sandwich-type" 2-contact symmetrical design mitigates the electromagnetic force of repulsion to offer enhanced functionality in shortcircuit conditions
- Meets UL 94 flammability requirements with selfextinguishing/non-flammable materials to prevent fires
LS7R04002PS00L Standards
UL 98B|UL 94|NEC|IEC-60947-3|CE|EAC|RoHSSKU #2405016Part Number #LS7R04002PS00LUNSPSC39122233UPC00007945829343
