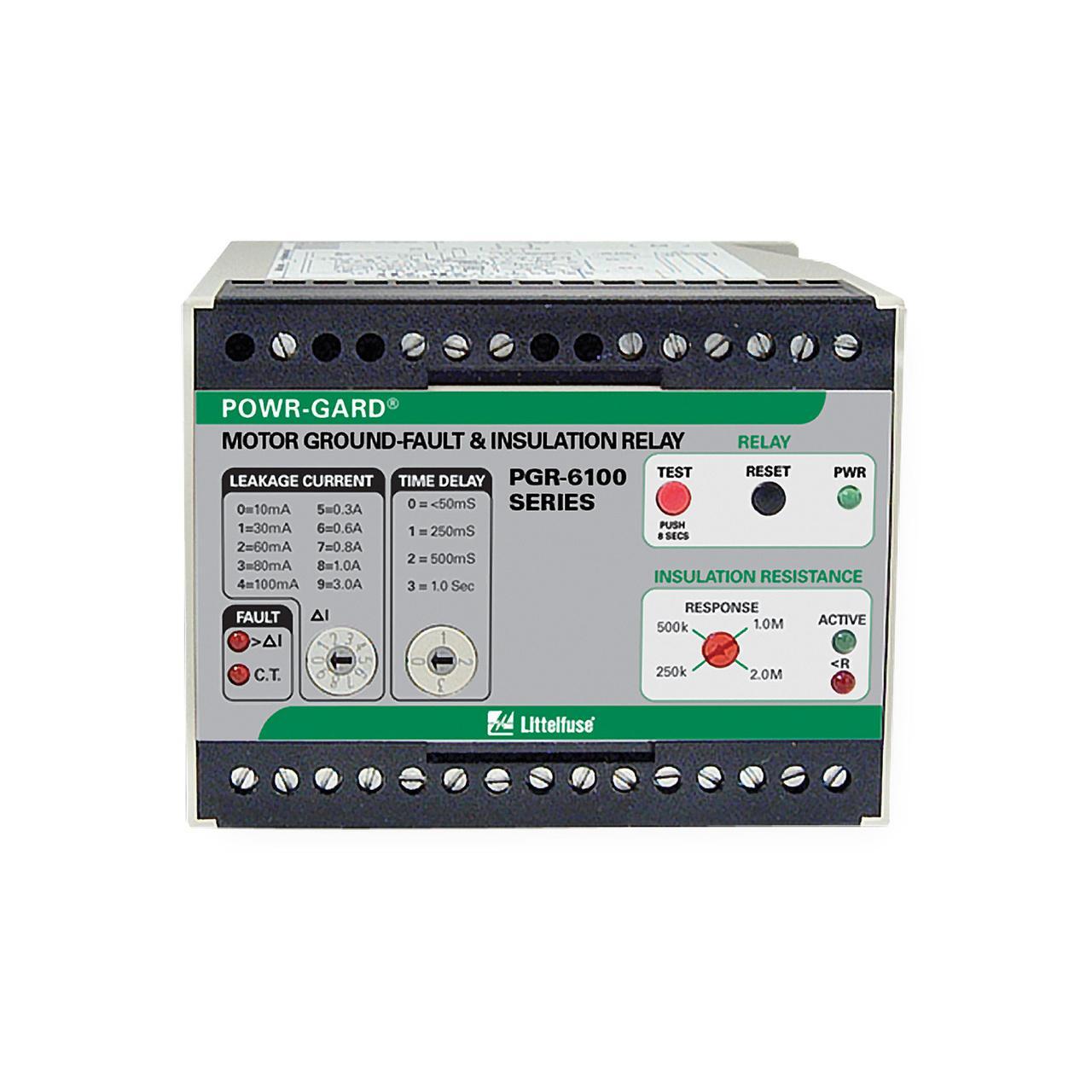

Littelfuse PGR-6100-120 POWR-GARD Ground Fault and Insulation Relay
Part Number # PGR-6100-120
SKU # 2236761
$2215.04 / Each
Typical price:$3691.74 / Each
Littelfuse PGR-6100-120 Key Features
| Brand: | Littelfuse |
|---|---|
| Part Number # : | PGR-6100-120 |
| SKU #: | 2236761 |
| Analog Output: | 0 to 1, 0 to 1 mA |
| Dimensions: | 3 in H x 3.9 in W x 4.5 in D |
| Response Delay: | <250, <250 ms |
| Series: | PGR-6100 |
| Specifications: | 1NO-1NC (2 Form C) Output Contact, 22 to 12 AWG Wire Clamping Terminal |
| Country of origin: | MX |
| Mounting type: | DIN Rail, DIN Rail/Surface |
| Manufacturer Name: | Littelfuse |
| UNSPSC: | 39122331 |
| UPC: | 00079458177503 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2215.04 / Each
Typical price:$3691.74 / Each
Quantity:
- Littelfuse POWR-GARD Ground Fault and Insulation Relay, Series: PGR-6100, 120 V AC, <250 ms Response Delay, 0 to 1 mA Analog Output, 1NO-1NC (2 Form C) Output Contact, 22 to 12 AWG Wire Clamping Terminal, DIN Rail Mount, 3 in H x 3.9 in W x 4.5 in D
PGR-6100-120 Item Features
- Adjustable GF pickup (10 mA to 3 A) trip setting provides a wide range of low level protection and system coordination
- Adjustable insulation pickup (250 to 2 MOhm)- customizable insulation resistance set point for maximum protection
- Adjustable time delay (50 ms to 1 s) -adjustable trip delay for quick-protection and system coordination
- Output contacts two form C output contacts for ground fault and insulation resistance fault
- Two analog outputs indicate insulation resistance and ground fault current
- CT-loop monitoring alarms when CT is not connected
- Selectable fail safe or non-fail safe operating modes allows connection to shunt or undervoltage breaker coil
PGR-6100-120 Standards
cULus File No. E183688|UL 508|cULus Listed|FCC ApprovedSKU #2236761Part Number #PGR-6100-120UNSPSC39122331UPC00079458177503
