Part Number # 722789
SKU # 2411977
Image Disclaimers Message
Brand: LUTZE
722789

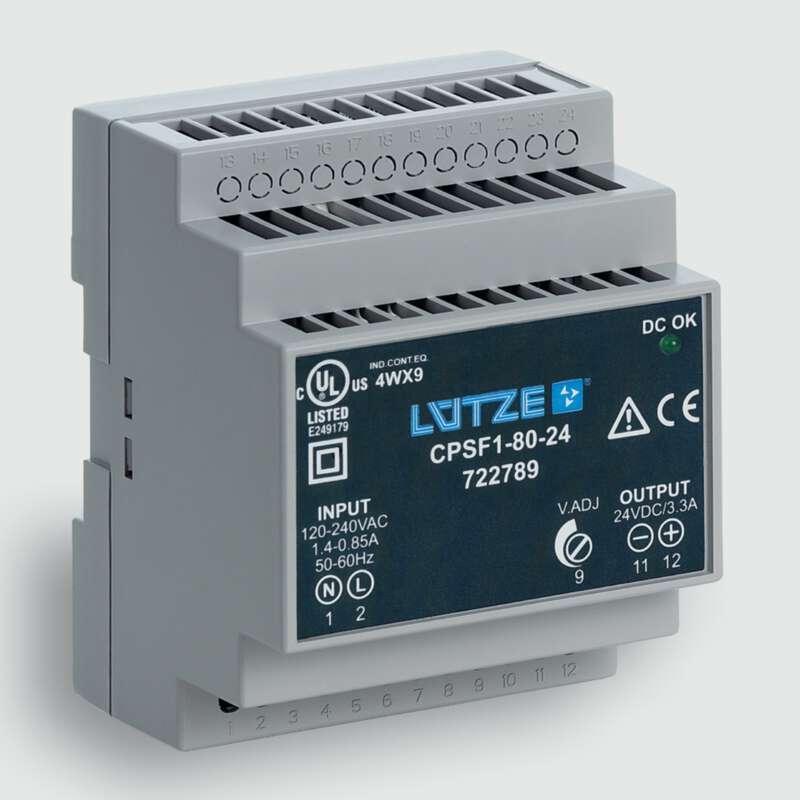

Lutze 722789 Power Supply
Part Number # 722789
SKU # 2411977
$108.24 / Each
Typical price:$141.70 / Each
LUTZE 722789 Key Features
| Brand: | LUTZE |
|---|---|
| Part Number # : | 722789 |
| SKU #: | 2411977 |
| Amperage Rating: | 3 A |
| Case Material: | Noryl |
| Frequency Rating: | 47 to 63 Hz |
| Input Voltage: | 90 to 264 V AC/100 to 345 V DC, 90 to 264 VAC/100 to 345 VDC |
| Series: | Compact |
| Type: | 1-Phase Primary Switch Mode |
| Country of origin: | TW |
| Depth: | 61.5 mm |
| Height: | 90 mm |
| Mounting type: | DIN Rail |
| Output voltage: | 24 V DC, 24 VDC |
| Width: | 72 mm |
| Manufacturer Name: | LUTZE Inc |
| UNSPSC: | 39121004 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$108.24 / Each
Typical price:$141.70 / Each
Quantity:
- LUTZE Power Supply, 1-Phase Primary Switch Mode, Series: Compact, 90 to 264 VAC/100 to 345 VDC Input, 24 V DC Output, 80 W Power, 3 A, 47 to 63 Hz Frequency, DIN Rail Mounting, Noryl Case, 72 mm Width, 61.5 mm Depth, 90 mm Height
722789 Application
For industrial applications722789 Item Features
- Suitable for industrial applications especially where high inrush power is required, as well as when compact housing or extended reliability are desired
- Short circuit and overload protection
- Adjustable output voltage
- Output alarm relay
- High efficiency
- IP20 protection class
- Parallel operation
- Extremely compact footprint
722789 Standards
cULus E249179|EN 50178/50081-1/50082-2/55011B/55022/55022 Class B/60950/61000-3-2/4-2/3/4/5/6/11/6-2/6-4|IEC 950|UL 508/60950SKU #2411977Part Number #722789UNSPSC39121004UPC
