Part Number # A4221404
SKU # 2411446
Image provided may only be a representation of
final product and may include optional equipment
A4221404

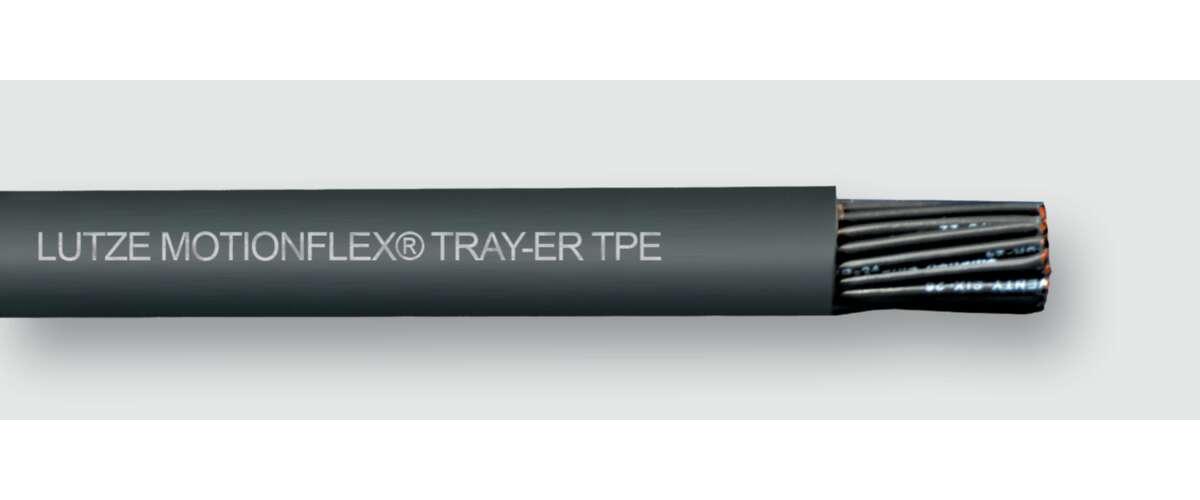

Lutze A4221404 Control Cable
Part Number # A4221404
SKU # 2411446
$1600.00 / Feet
Typical price:$2135.00 / Feet
LUTZE A4221404 Key Features
| Brand: | LUTZE |
|---|---|
| Part Number # : | A4221404 |
| SKU #: | 2411446 |
| Conductor Size: | 14 AWG |
| Conductor Type: | Stranded Bare Copper |
| Jacket Color: | Black |
| Jacket Material: | TPE |
| Number of Conductors: | 4 |
| Outside Diameter: | 0.37 in |
| Series: | MotionFlex Tray |
| Temperature Rating (Degrees F): | -5 to 90 deg C Moving, -40 to 105 deg C Fixed |
| Type: | Flexible |
| Country of origin: | US |
| Insulation material: | PVC/Nylon |
| Length: | 10 ft |
| Manufacturer Name: | LUTZE Inc |
| UNSPSC: | 26121603 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1600.00 / Feet
Typical price:$2135.00 / Feet
Quantity:
- MOTIONFLEX, A4221404, Control Cable, Flexible, Series: MotionFlex Tray, Tray Packaging, 600, 1000 V, 4 Conductors, Stranded Bare Copper Conductor, 14 AWG Conductor, 0.37 in OD, 10 ft Length, PVC/Nylon Insulation, TPE Jacket, Black Jacket, -5 to 90 deg C Moving, -40 to 105 deg C Fixed
A4221404 Application
For Multi-conductor cable suitable for continuous motion applications with repetitive movement, linear flexing, and torsional stress, Compatible with all major drag chain brands, TC-ER for use with cable trays without conduit, which can reduce material and labor costs, WTTC - wind turbine tray cable rating for use in wind power generation, Dry, damp or wet conditionsA4221404 Item Features
- Highly flexible conductor design
- Gas/vapor-tight sheath
- Crush impact resistant
- Sunlight resistant, Talc and Silicone free
- Cutting oil resistant - mineral and bio/vegetable based oils specifically tested with plant based cutting oil
- Specially formulated jacket for oil resistance and easy strip
- WTTC - wind turbine tray cable rating for use in wind power generation
- Dry, damp or wet conditions
- Flame resistant
A4221404 Standards
UL Type TC-ER|cURus|cULus|WTTC|NEC 336/392|Class I and II, Div. 2 and Class I|Zone 2 per NEC 501/502/505|C(UL) TC and CIC FT4|UL 1277|REACH|RoHS|NFPA 79SKU #2411446Part Number #A4221404UNSPSC26121603UPC
