Part Number # 01-N8073
SKU # 2457044
01-N8073
Meltric 01-N8073
Part Number # 01-N8073
SKU # 2457044
Meltric 01-N8073 Key Features
| Brand: | Meltric |
|---|---|
| Part Number # : | 01-N8073 |
| SKU #: | 2457044 |
| Amperage Rating: | 20 A |
| Dimensions: | 2.2 in Dia x 1.06 in L |
| Enclosure: | IP66/IP67 |
| Frequency Rating: | 60 Hz |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Series: | PN20 |
| Temperature Rating (Degrees F): | -40 to 140 deg F |
| Terminal Type: | Screw |
| Type: | Standard Duty |
| Country of origin: | US |
| Material: | Polyester |
| Manufacturer Name: | Meltric Corporation |
| UNSPSC: | 39121402 |
| UPC: | 00078447456546 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Meltric 01-N8073
Brand: Meltric
Part Number: 01-N8073
MELTRIC Male Inlet, Standard Duty, Series: PN20, 110/125/220/250 VAC, 20 A, 60 Hz Frequency, 3 Pole, 4 Wires, IP66/IP67 Enclosure, -40 to 140 deg F, Screw Terminal, Polyester, Blue, 2.2 in Dia x 1.06 in L Dimensions
Additional Description: MELT-01-N8073 PN20 INLET POLY BLUE SIZE 1 TYPE 4X 3P+G 20 A 250 VAC 60 Hz
Catalog Description: Inlet, Enclosure IP66/IP67, Wiring Capacity 18 To 10 AWG, Polarity 3 Pole, Ground, Standard: UL, CSA, IEC, CE, Size: 2.20 DIA X 1.06IN, Amperage Rating: 20AMP, Voltage Rating: 250V, Material: Polyester, Color: Blue, Temperature Rating: -40 to 140DEG F
01-N8073 Application
For use on small equipment and other applications where space is limited01-N8073 Item Features
- Compact yet durable device
- Spring loaded butt-style contacts ensures optimal contact force and superior electrical performance over thousands of operations
- Solid silver nickel contact surfaces provide superior conductivity, durability and corrosion resistance
- 18 to 10 AWG wiring capacity
01-N8073 Standards
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL Listed|CSA Certified|CE Certified|IEC CertifiedSKU #2457044Part Number #01-N8073UNSPSC39121402UPC00078447456546

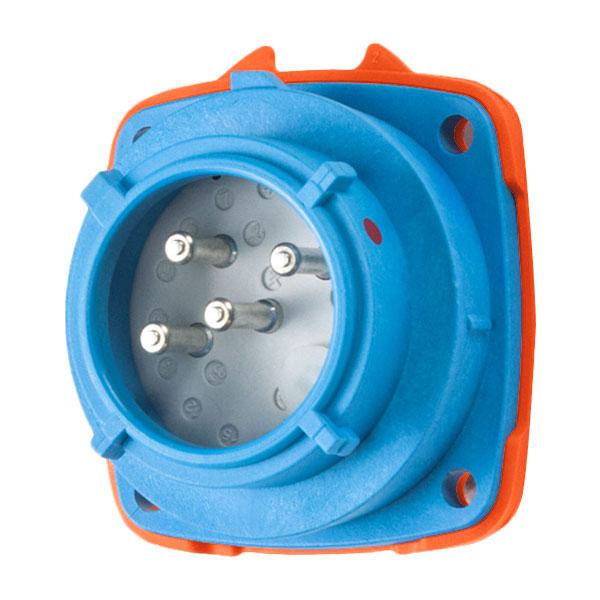

Image provided may only be a representation of final product and may include optional equipment
