22-18073

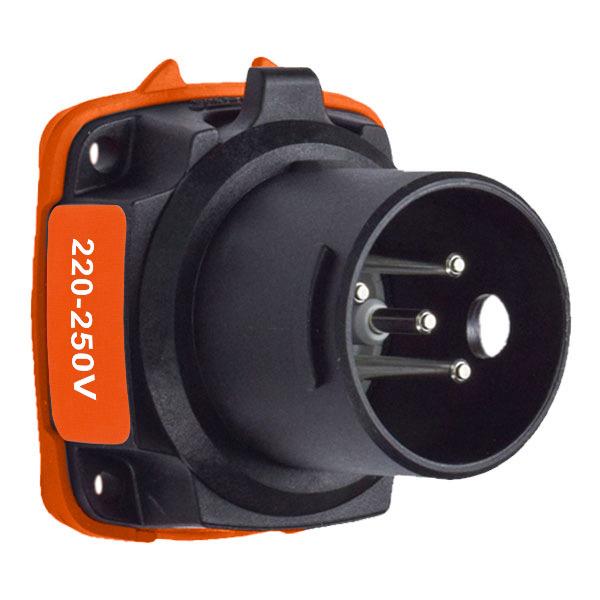

Meltric 22-18073 DECONTACTOR Male Inlet
Part Number # 22-18073
SKU # 2374150
Meltric 22-18073 Key Features
| Brand: | Meltric |
|---|---|
| Part Number # : | 22-18073 |
| SKU #: | 2374150 |
| Amperage Rating: | 20 A |
| Dimensions: | 2.24 in Dia x 1.97 in L |
| Enclosure: | IP66/IP67 |
| Frequency Rating: | 60 Hz |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Series: | DXN20 |
| Temperature Rating (Degrees F): | -40 to 140 deg F |
| Terminal Type: | Screw |
| Color: | Black |
| Country of origin: | US |
| Material: | Polyester |
| Manufacturer Name: | Meltric Corporation |
| UNSPSC: | 39121402 |
| UPC: | 00784474613675 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Meltric 22-18073 DECONTACTOR Male Inlet
Brand: Meltric
Part Number: 22-18073
MELTRIC DECONTACTOR Male Inlet, Series: DXN20, 110/125/220/250 VAC, 20 A, 60 Hz Frequency, 3 Pole, 4 Wires, IP66/IP67 Enclosure, -40 to 140 deg F, Screw Terminal, Polyester, Black, 2.24 in Dia x 1.97 in L Dimensions
Additional Description: MELT-22-18073 DXN20 INLET POLY BLACK SIZE 1 IP 66/67 3P+G 20 A 250 VAC 60 Hz 22-18073
Catalog Description: Inlet, Enclosure IP66/IP67, Wiring Capacity 20 To 10 AWG, Polarity 3 Pole, Ground, Application: Refineries, Silos, Hazardous Environment, Standard: CSA, IEC, ATEX, Size: 2.24 DIA X 1.97IN, Amperage Rating: 20AMP, Voltage Rating: 250V, Material: Polyester,
22-18073 Application
For use in hazardous environments such as refineries or silos where exposure to flammable gas or dust is a concern22-18073 Item Features
- Easy to handle due to compact, lightweight design
- CSA, ATEX and IECEx rated for use in Zone 1 and 2 (gas) and Zone 21 and 22 (dust)
- Pushbutton pawl/OFF button provides quick, safe and easy current interruption
- Spring loaded butt-style contacts ensures optimal contact force and superior electrical performance over thousands of operations
- Explosion proof arc chamber withstands internal pressure due to gas/dust ignited by arcing and isolates it from the outside environment
- Explosion proof flame path dissipates internal pressure created during arcing while also preventing any associated ignition sources from reaching the surrounding atmosphere
- 20 to 10 AWG wiring capacity
- 1/4 hp at 120 VAC 1-phase, 1 hp at 240 VAC, 3 hp at 480 VAC 3-phase horsepower rating
22-18073 Standards
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|CSA Certified|ATEX Certified|IECEx CertifiedSKU #2374150Part Number #22-18073UNSPSC39121402UPC00784474613675
