Part Number # 22-34043-972-843
SKU # 2456657
22-34043-972-843
Meltric 22-34043-972-843
Part Number # 22-34043-972-843
SKU # 2456657
$863.15 / Each
Typical price:$959.06 / Each
Meltric 22-34043-972-843 Key Features
| Brand: | Meltric |
|---|---|
| Part Number # : | 22-34043-972-843 |
| SKU #: | 2456657 |
| Dimensions: | 2.8 in Dia x 3.58 in L |
| Enclosure: | IP66/IP67 |
| Series: | DXN30 |
| Temperature Rating (Degrees F): | -40 to 140 deg F |
| Manufacturer Name: | Meltric Corporation |
| UNSPSC: | 39121406 |
| UPC: | 00078447461082 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$863.15 / Each
Typical price:$959.06 / Each
Quantity:
Meltric 22-34043-972-843
Brand: Meltric
Part Number: 22-34043-972-843
MELTRIC Female Receptacle, Series: 22-34043-972-843 DXN30, 255/277/440/480 VAC, 30 A, 5 hp, 60 Hz, 3 Pole, 4 Wires, IP66/IP67 Enclosure, -40 to 140 deg F, Screw Terminal, Polyester, Black, 2.8 in Dia x 3.58 in L
Additional Description: MELT-22-34043-972-843 DXN30 RECEPTACLE POLY BLACK SIZE 2 IP 66/67 3P+G 30 A 480 VAC 60 Hz +2 AUX PADLOCK PAWL
22-34043-972-843 Application
For use in hazardous environments such as refineries or silos where exposure to flammable gas or dust is a concern22-34043-972-843 Item Features
- Easy to handle due to compact, lightweight design
- CSA, ATEX and IECEx rated for use in Zone 1 and 2 (gas) and Zone 21 and 22 (dust)
- Hazardous location termination areas includes enhanced creepage and clearance distances and specially designed terminals to ensure perfect and permanent clamping
- Self-extinguishing, non-static, material provides outstanding resistance to mechanical abuse and chemicals
- When closed, the lid maintains IP66+IP67 protection for the receptacle after removal of the plug
- 1/2 hp at 120 VAC 1-phase, 3 hp at 240 VAC, 5 hp at 480 VAC, 7-1/2 hp at 600 VAC 3-phase horsepower rating
- https://www.youtube.com/watch?v=f5CjJ3stOho
22-34043-972-843 Standards
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|CSA Certified|ATEX Certified|IECEx CertifiedSKU #2456657Part Number #22-34043-972-843UNSPSC39121406UPC00078447461082

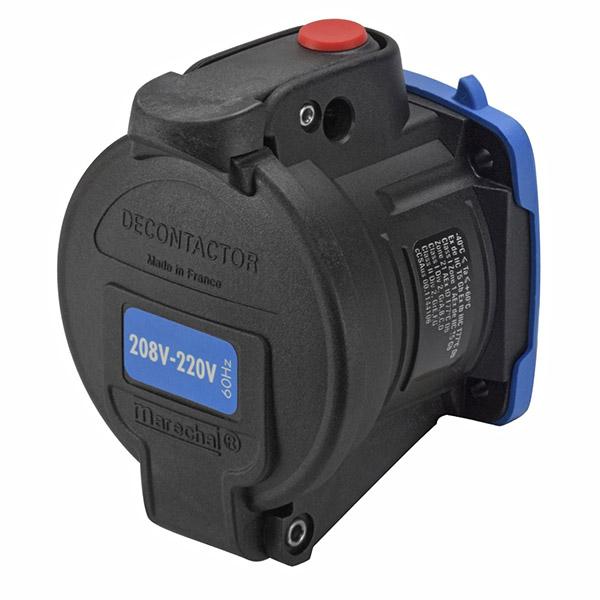

Image provided may only be a representation of final product and may include optional equipment
