Part Number # 31-14243-K04-972
SKU # 2237342
Image Disclaimers Message
31-14243-K04-972

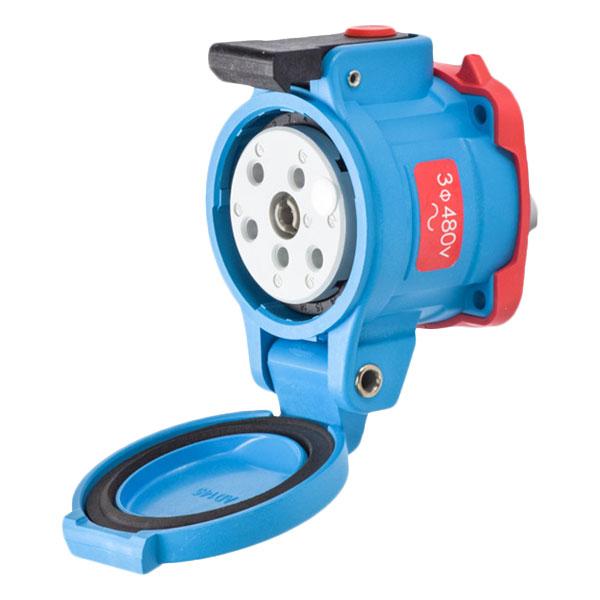

Meltric 31-14243-K04-972
Part Number # 31-14243-K04-972
SKU # 2237342
$398.70 / Each
Typical price:$443.00 / Each
Meltric 31-14243-K04-972 Key Features
| Brand: | Meltric |
|---|---|
| Part Number # : | 31-14243-K04-972 |
| SKU #: | 2237342 |
| Amperage Rating: | 30, 30 A |
| Dimensions: | 3.75 in H x 3.26 in D |
| Enclosure: | IP55 |
| Frequency Rating: | 60, 60 Hz |
| NEMA Rating: | NEMA 3R |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Series: | DR30 |
| Temperature Rating (Degrees F): | -40 to 140, -40 to 140 deg F |
| Terminal Type: | Screw |
| Type: | Female |
| Color: | Blue |
| Country of origin: | US |
| Material: | PBT |
| Manufacturer Name: | Meltric Corporation |
| UNSPSC: | 39121406 |
| UPC: | 00078447461071 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$398.70 / Each
Typical price:$443.00 / Each
Quantity:
- MELTRIC Standard Duty Receptacle, Female, Series: DR30, 255/277/440/480 V AC, 30 A, 60 Hz Frequency, 3 Poles, 4 Wires, NEMA 3R, IP55 Enclosure, -40 to 140 deg F, Screw Terminal, PBT, Blue, 3.75 in H x 3.26 in D Dimensions
31-14243-K04-972 Specifications
- Spring assisted screw terminals
- Spring loaded butt style contacts
- OFF button press to deenergize, provides push button circuit disconnection
- Dead front/safety shutter
- Fiberglass reinforced thermoplastic polyester material offers great resistance to impact, corrosion and harsh environmental conditions
- Lid provides additional protection from harsh environments
- Voltage being used when notching position is not standard
31-14243-K04-972 Application
Industrial Applications31-14243-K04-972 Item Features
- Spring assisted screw terminals
- Spring loaded butt style contacts
- OFF button press to deenergize, provides push button circuit disconnection
- Dead front/safety shutter
- Fiberglass reinforced thermoplastic polyester material offers great resistance to impact, corrosion and harsh environmental conditions
- Lid provides additional protection from harsh environments
- Voltage being used when notching position is not standard
31-14243-K04-972 Standards
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 1682|CSA C22.2 No. 182.1|IEC 60309-1SKU #2237342Part Number #31-14243-K04-972UNSPSC39121406UPC00078447461071
