Part Number # 31-18243-K04-972
SKU # 2318506
Image Disclaimers Message
31-18243-K04-972
Meltric 31-18243-K04-972
Part Number # 31-18243-K04-972
SKU # 2318506
$174.81 / Each
Typical price:$194.23 / Each
Meltric 31-18243-K04-972 Key Features
| Brand: | Meltric |
|---|---|
| Part Number # : | 31-18243-K04-972 |
| SKU #: | 2318506 |
| Amperage Rating: | 30, 30 A |
| Dimensions: | 2.79 in H x 2.55 in D |
| Enclosure: | IP54 |
| Frequency Rating: | 60, 60 Hz |
| NEMA Rating: | NEMA 3R |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Series: | DR30 |
| Temperature Rating (Degrees F): | -40 to 140, -40 to 140 deg F |
| Terminal Type: | Screw |
| Type: | Male |
| Color: | Blue |
| Country of origin: | US |
| Material: | PBT |
| Manufacturer Name: | Meltric Corporation |
| UNSPSC: | 39121402 |
| UPC: | 00078447461072 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$174.81 / Each
Typical price:$194.23 / Each
Quantity:

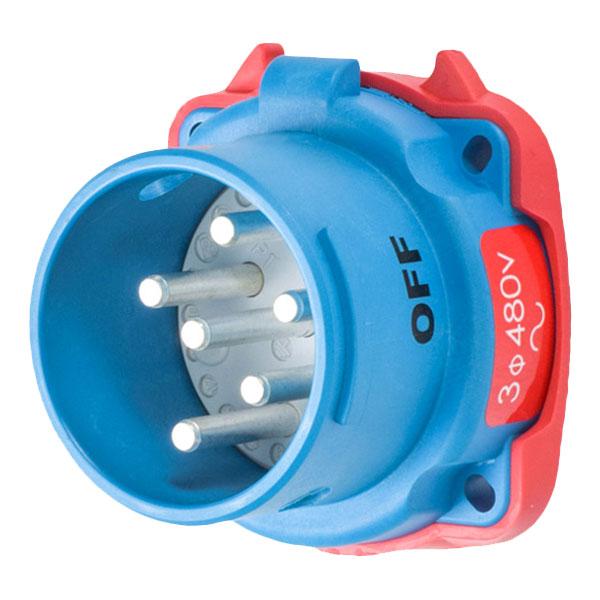

- MELTRIC Standard Duty Inlet, Male, Series: DR30, 255/277/440/480 V AC, 30 A, 60 Hz Frequency, 3 Pole, 4 Wires, NEMA 3R, IP54 Enclosure, -40 to 140 deg F, Screw Terminal, PBT, Blue, 2.79 in H x 2.55 in D Dimensions
31-18243-K04-972 Specifications
- Solid silver nickel contact surfaces provide superior conductivity, lid durability and corrosion resistance
- Fiberglass reinforced thermoplastic polyester material offers great resistance to impact, corrosion and harsh environmental conditions
- Lockout tagout capability allows plug to be easily locked out and tagged
- High amperage capacity
- Voltage being used when notching position is not standard
31-18243-K04-972 Application
Industrial Applications31-18243-K04-972 Item Features
- Solid silver nickel contact surfaces provide superior conductivity, lid durability and corrosion resistance
- Fiberglass reinforced thermoplastic polyester material offers great resistance to impact, corrosion and harsh environmental conditions
- Lockout tagout capability allows plug to be easily locked out and tagged
- High amperage capacity
- Voltage being used when notching position is not standard
31-18243-K04-972 Standards
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 1682|CSA C22.2 No. 182.1|IEC 60309-1SKU #2318506Part Number #31-18243-K04-972UNSPSC39121402UPC00078447461072
