Part Number # 31-68232-K16
SKU # 2455483
31-68232-K16
Meltric 31-68232-K16
Part Number # 31-68232-K16
SKU # 2455483
Meltric 31-68232-K16 Key Features
| Brand: | Meltric |
|---|---|
| Part Number # : | 31-68232-K16 |
| SKU #: | 2455483 |
| Amperage Rating: | 100 A |
| Dimensions: | 3.62 in Dia x 2.2 in L |
| Enclosure: | IP54/IP55 |
| Frequency Rating: | 60 Hz |
| NEMA Rating: | NEMA 3R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Series: | DR100 |
| Temperature Rating (Degrees F): | -40 to 140 deg F |
| Terminal Type: | Screw |
| Type: | Standard Duty |
| Country of origin: | US |
| Material: | Polyester |
| Manufacturer Name: | Meltric Corporation |
| UNSPSC: | 39121402 |
| UPC: | 00078447462477 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Meltric 31-68232-K16
Brand: Meltric
Part Number: 31-68232-K16

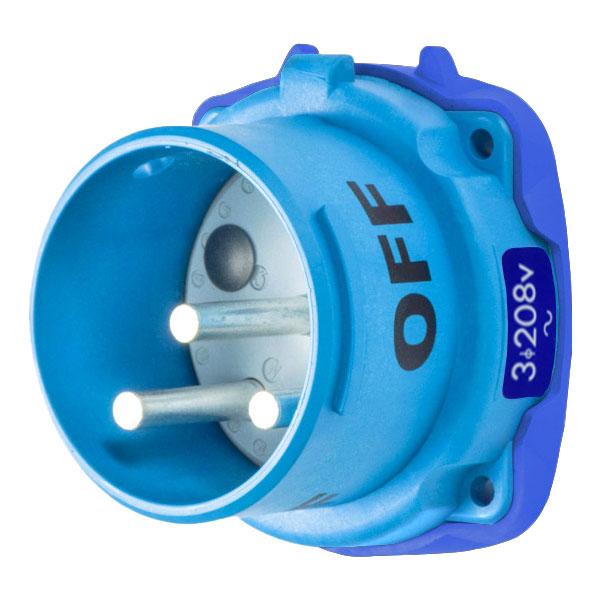

MELTRIC Male Inlet, Standard Duty, Series: DR100, 120/127/208/220 VAC, 100 A, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 3R, IP54/IP55 Enclosure, -40 to 140 deg F, Screw Terminal, Polyester, Blue, 3.62 in Dia x 2.2 in L Dimensions
Additional Description: MELT-31-68232-K16 DR100 INLET POLY BLUE SIZE 4 TYPE 4X IP 69 2P+G 100 A 208 VAC 60 Hz NO AUX
Catalog Description: Inlet, Enclosure NEMA 3R, IP54/IP55, Wiring Capacity 10 To 2 AWG, Polarity 2 Pole, Ground, Short Circuit Rating 100 KAMP, Standard: UL, CSA, IEC, CE, Size: 3.62 DIA X 2.20IN, Amperage Rating: 100AMP, Voltage Rating: 208V, Material: Polyester, Color: Blue,
31-68232-K16 Application
For applications up to 400 A31-68232-K16 Item Features
- High amperage capacity
- Up to 6 auxiliary contacts
- Fiberglass reinforced thermoplastic polyester material offers great resistance to impact, corrosion and harsh environmental conditions
- Solid silver nickel contact surfaces provide superior conductivity, durability and corrosion resistance
- 100 kA short circuit rated
- 10 to 2 AWG wiring capacity
31-68232-K16 Standards
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 1682|CSA 182.1|CE Certified|IEC CertifiedSKU #2455483Part Number #31-68232-K16UNSPSC39121402UPC00078447462477
Image provided may only be a representation of final product and may include optional equipment
