Part Number # 31-98243-K04-262
SKU # 2455478
Image Disclaimers Message
31-98243-K04-262
Meltric 31-98243-K04-262
Part Number # 31-98243-K04-262
SKU # 2455478
$703.58 / Each
Typical price:$781.76 / Each
Meltric 31-98243-K04-262 Key Features
| Brand: | Meltric |
|---|---|
| Part Number # : | 31-98243-K04-262 |
| SKU #: | 2455478 |
| Amperage Rating: | 150 A |
| Dimensions: | 4.59 in H x 5.11 in W x 4.14 in D |
| Enclosure: | IP66/IP67 |
| Frequency Rating: | 60 Hz |
| NEMA Rating: | NEMA 4X |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Series: | DR150 |
| Temperature Rating (Degrees F): | -40 to 140 deg F |
| Terminal Type: | Screw |
| Type: | Male |
| Color: | Blue |
| Country of origin: | US |
| Material: | PBT |
| Manufacturer Name: | Meltric Corporation |
| UNSPSC: | 39121402 |
| UPC: | 00078447467890 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$703.58 / Each
Typical price:$781.76 / Each
Quantity:

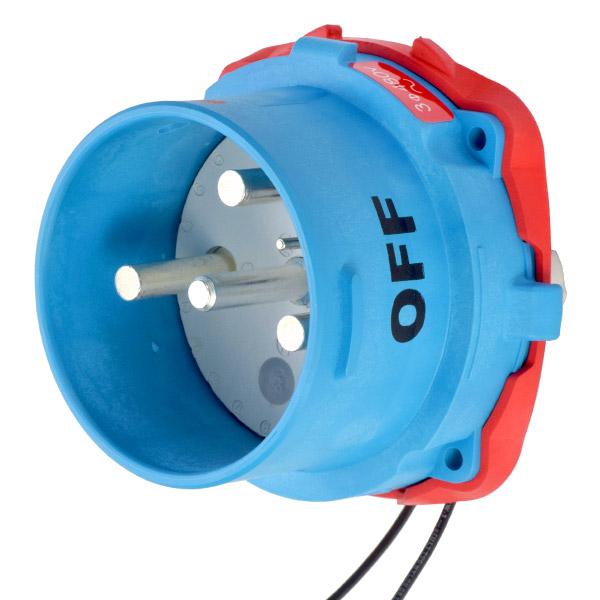

- MELTRIC Standard Duty Inlet, Male, Series: DR150, 255/277/440/480 V AC, 150 A, 60 Hz Frequency, 3 Pole, 4 Wires, NEMA 4X, IP66/IP67 Enclosure, -40 to 140 deg F, Screw Terminal, PBT, Blue, 4.59 in H x 5.11 in W x 4.14 in D Dimensions
31-98243-K04-262 Application
Industrial Applications31-98243-K04-262 Item Features
- Solid silver nickel contact surfaces provide superior conductivity, lid durability and corrosion resistance
- Fiberglass reinforced thermoplastic polyester material offers great resistance to impact, corrosion and harsh environmental conditions
- Lockout tagout capability allows plug to be easily locked out and tagged
- High amperage capacity
- Voltage being used when notching position is not standard
31-98243-K04-262 Standards
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 1682|CSA C22.2 No. 182.1|IEC 60309-1SKU #2455478Part Number #31-98243-K04-262UNSPSC39121402UPC00078447467890
