Part Number # 33-64163
SKU # 2447774
33-64163
Meltric 33-64163
Part Number # 33-64163
SKU # 2447774
Meltric 33-64163 Key Features
| Brand: | Meltric |
|---|---|
| Part Number # : | 33-64163 |
| SKU #: | 2447774 |
| Dimensions: | 3.86 in Dia x 4.06 in L |
| Enclosure: | IP54/IP55 |
| Series: | DS60 |
| Temperature Rating (Degrees F): | -40 to 140 deg F |
| Type: | Switch Rated |
| Manufacturer Name: | Meltric Corporation |
| UNSPSC: | 39121406 |
| UPC: | 00078447404426 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Meltric 33-64163
Brand: Meltric
Part Number: 33-64163

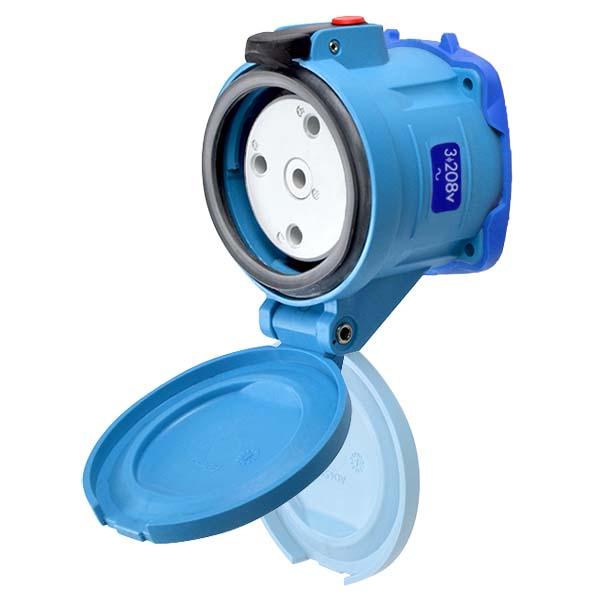

MELTRIC DECONTACTOR™ Female Receptacle, Switch Rated, Series: 33-64163 DS60, 120/127/208/220 VAC, 60 A, 3 hp, 10 hp, 60 Hz, 3 Pole, 4 Wires, NEMA 3R, IP54/IP55 Enclosure, -40 to 140 deg F, Screw Terminal, Polyester, Blue, 3.86 in Dia x 4.06 in L
Additional Description: MELT-33-64163 DS60 RECEPTACLE POLY BLUE SIZE 4 TYPE 4X IP 69 3P+G 60 A 208 VAC 60 Hz NO AUX
Catalog Description: Receptacle, With Ground, Horsepower Rating 7 1/2 HP at 208 V, Short Circuit Rating 100 KAMP, Application: Metals, Quarry, Automotive and Mining Industries, Standard: UL, CSA, NOM, IEC, CE, NFPA 70E, Number Of Poles: 3, Number Of Wires: 4, Wire Size: 10 to
33-64163 Application
Metal, Quarry, Automotive, Mining Industries, Heavy Industry and High Amperage Equipment Applications33-64163 Item Features
- Switch and hp rated (AC only)
- 65 to 100 kA short circuit rated
- Amperage rating up to 200 A
- Up to 6 auxiliary contacts
- Spring assisted screw terminals patented design assures tighten and forget confidence
- Spring loaded butt-style contacts ensures optimal contact force and superior electrical performance over thousands of operations
- Lid provides Type 3R water protection (4X optional) for additional protection in harsh environments
- OFF button press to de-energize and provides push button circuit disconnection
- Dead front/safety shutter assures safety by preventing user access to live parts
- 3 hp at 120 VAC, 5 hp at 240 VAC 1-phase, 10 hp at 208/240 VAC, 25 hp at 480/600 VAC 3-phase horsepower rating
33-64163 Standards
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 2682/1682|CSA 182.1|CE Certified|NOM Certified|IEC Certified|NFPA 70ESKU #2447774Part Number #33-64163UNSPSC39121406UPC00078447404426
Image provided may only be a representation of final product and may include optional equipment
