Part Number # 33-68076
SKU # 2464513
33-68076
Meltric 33-68076
Part Number # 33-68076
SKU # 2464513
$315.66 / Each
Typical price:$350.73 / Each
Meltric 33-68076 Key Features
| Brand: | Meltric |
|---|---|
| Part Number # : | 33-68076 |
| SKU #: | 2464513 |
| Dimensions: | 3.62 in Dia x 2.2 in L |
| Enclosure: | IP54/IP55 |
| Series: | DS60 |
| Type: | Switch Rated |
| Manufacturer Name: | Meltric Corporation |
| UNSPSC: | 39121402 |
| UPC: | 00078447401905 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$315.66 / Each
Typical price:$350.73 / Each
Quantity:

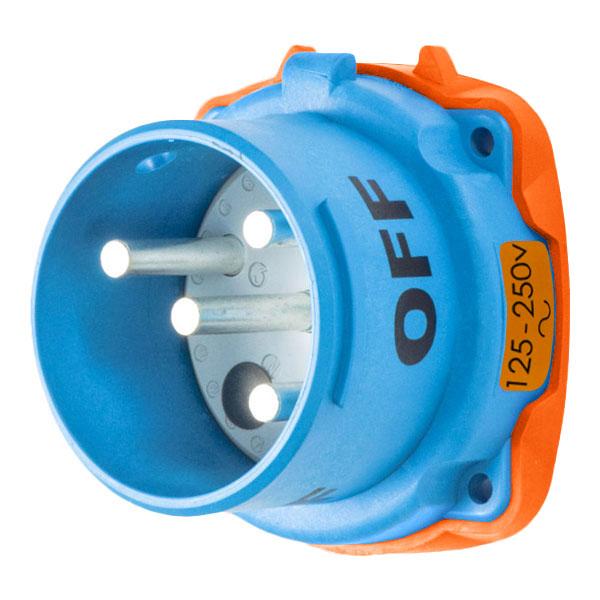

- MELTRIC DECONTACTOR Male Inlet, Switch Rated, Series: DS60, 110/125/220/250 V AC, 60 A, 60 Hz Frequency, 2 Pole, 4 Wires, NEMA 3R, IP54/IP55 Enclosure, -40 to 140 deg F, Screw Terminal, Polyester, Blue, 3.62 in Dia x 2.2 in L Dimensions
33-68076 Application
Metal, Quarry, Automotive, Mining Industries, Heavy Industry and High Amperage Equipment Applications33-68076 Item Features
- Switch and horsepower rated (AC only
- 65 to 100 kA short circuit rated
- Up to 200 A amperage rating
- Up to 4 auxiliary contacts
- Fiberglass reinforced thermoplastic polyester material offers great resistance to impact, corrosion and harsh environmental conditions
- Solid silver nickel contact surfaces provide superior conductivity, durability and corrosion resistance
- 10 to 2 AWG wiring capacity
- 3 hp at 120 VAC, 5 hp at 240 VAC 1-phase, 10 hp at 208/240 VAC, 25 hp at 480/600 VAC 3-phase horsepower rating
33-68076 Standards
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 2682|UL 1682|CSA 182.1|CE Marked|NOM Certified|IEC Certified|NFPA 70ESKU #2464513Part Number #33-68076UNSPSC39121402UPC00078447401905
Image provided may only be a representation of final product and may include optional equipment
