Part Number # 63-34072-972
SKU # 2459071
63-34072-972
Meltric 63-34072-972
Part Number # 63-34072-972
SKU # 2459071
$341.65 / Each
Typical price:$379.61 / Each
Meltric 63-34072-972 Key Features
| Brand: | Meltric |
|---|---|
| Part Number # : | 63-34072-972 |
| SKU #: | 2459071 |
| Amperage Rating: | 30 A |
| Dimensions: | 3.81 in H x 3.42 in D |
| Enclosure: | IP66/IP67/IP69k |
| Frequency Rating: | 60 Hz |
| NEMA Rating: | NEMA 4X |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Series: | DSN30 |
| Temperature Rating (Degrees F): | -40 to 140 deg F |
| Terminal Type: | Screw |
| Type: | Female |
| Material: | PBT |
| Manufacturer Name: | Meltric Corporation |
| UNSPSC: | 39121406 |
| UPC: | 00078447457341 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$341.65 / Each
Typical price:$379.61 / Each
Quantity:
Meltric 63-34072-972
Brand: Meltric
Part Number: 63-34072-972

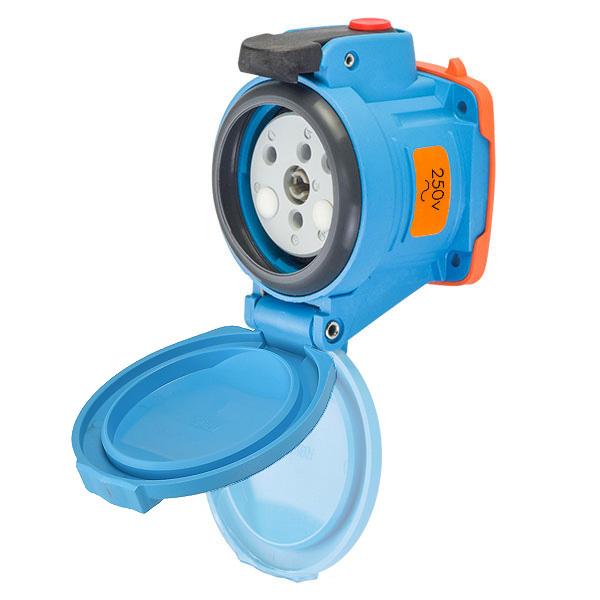

MELTRIC DECONTACTOR™ Switch Rated Receptacle, Female, Series: DSN30, 110/125/220/250 VAC, 30 A, 60 Hz Frequency, 2 Poles, 3 Wires, NEMA 4X, IP66/IP67/IP69K Enclosure, -40 to 140 deg F, Screw Terminal, PBT, Blue, 3.81 in H x 3.42 in D Dimensions
Additional Description: MELT-63-34072-972 DSN30 RECEPTACLE POLY BLUE SIZE 2 TYPE 4X IP 69 2P+G 30 A 250 VAC 60 Hz +2 AUX
63-34072-972 Application
Industrial, Wet/Washdown Environments, Plug and Play Electrical Connections63-34072-972 Item Features
- Spring assisted screw terminals
- Spring loaded butt style contacts
- Lid provides additional protection from harsh environments
- OFF button press to deenergize, provides push button circuit disconnection
- Dead front/safety shutter
- Fiberglass reinforced thermoplastic polyester material offers great resistance to impact, corrosion and harsh environmental conditions
- https://youtu.be/2mSjamIbfo0
63-34072-972 Standards
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 2682|UL 1682|CSA C22.2 No. 182.1|IEC 60309-1SKU #2459071Part Number #63-34072-972UNSPSC39121406UPC00078447457341
Image provided may only be a representation of final product and may include optional equipment
