Part Number # 63-34142
SKU # 2449069
63-34142
Meltric 63-34142
Part Number # 63-34142
SKU # 2449069
Meltric 63-34142 Key Features
| Brand: | Meltric |
|---|---|
| Part Number # : | 63-34142 |
| SKU #: | 2449069 |
| Dimensions: | 2.87 in Dia x 3.2 in L |
| Enclosure: | IP66/IP67/IP69k |
| Series: | DSN30 |
| Temperature Rating (Degrees F): | -40 to 140 deg F |
| Type: | Switch Rated |
| Manufacturer Name: | Meltric Corporation |
| UNSPSC: | 39121406 |
| UPC: | 00078447458000 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Meltric 63-34142
Brand: Meltric
Part Number: 63-34142

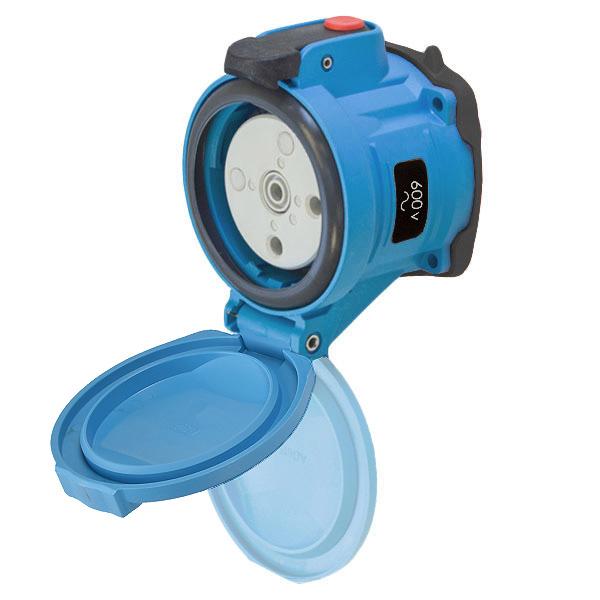

MELTRIC DECONTACTOR™ Female Receptacle, Switch Rated, Series: DSN30, 347/600 VAC, 30 A, 15 hp, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 4X NEMA Rating, IP66/IP67/IP69K Enclosure, -40 to 140 deg F, Screw Terminal, Polyester, Blue, 2.87 in Dia x 3.2 in L Dimensions
Additional Description: MELT-63-34142 DSN30 RECEPTACLE
Catalog Description: Receptacle, With Ground, Horsepower Rating 15 HP at 600 V, Short Circuit Rating 100 KAMP, Standard: UL, CSA, NOM, IEC, CE, NFPA 70E, Number Of Poles: 2, Number Of Wires: 3, Wire Size: 14 to 8AWG, Amperage Rating: 30AMP, Voltage Rating: 600V, Phase: 3PH, M
63-34142 Application
Wet or Washdown Environments, Plug and Play Electrical Connections63-34142 Item Features
- Switch and hp rated (AC only)
- 100 kA short circuit rated
- Compact, lightweight design
- Up to 4 auxiliary contacts
- Spring assisted screw terminals patented design assures tighten and forget confidence
- Spring loaded butt-style contacts ensures optimal contact force and superior electrical performance over thousands of operations
- Lid provides additional protection from harsh environments
- OFF button press to de-energize and provides push button circuit disconnection
- Dead front/safety shutter assures safety by preventing user access to live parts
- 1 hp at 120 VAC, 3 hp at 240 VAC 1-phase, 5 hp at 208/240 VAC, 10 hp at 480 VAC, 15 hp at 600 VAC 3-phase horsepower rating
63-34142 Standards
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 2682/1682|CSA 182.1|CE Certified|NOM Certified|IEC Certified|NFPA 70ESKU #2449069Part Number #63-34142UNSPSC39121406UPC00078447458000
Image provided may only be a representation of final product and may include optional equipment
