63-64072
Meltric 63-64072
Part Number # 63-64072
SKU # 2469673
Meltric 63-64072 Key Features
| Brand: | Meltric |
|---|---|
| Part Number # : | 63-64072 |
| SKU #: | 2469673 |
| Dimensions: | 3.23 in Dia x 3.83 in L |
| Enclosure: | IP66/IP67/IP69k |
| Series: | DSN60 |
| Type: | Switch Rated |
| Manufacturer Name: | Meltric Corporation |
| UNSPSC: | 39121406 |
| UPC: | 00078447454900 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

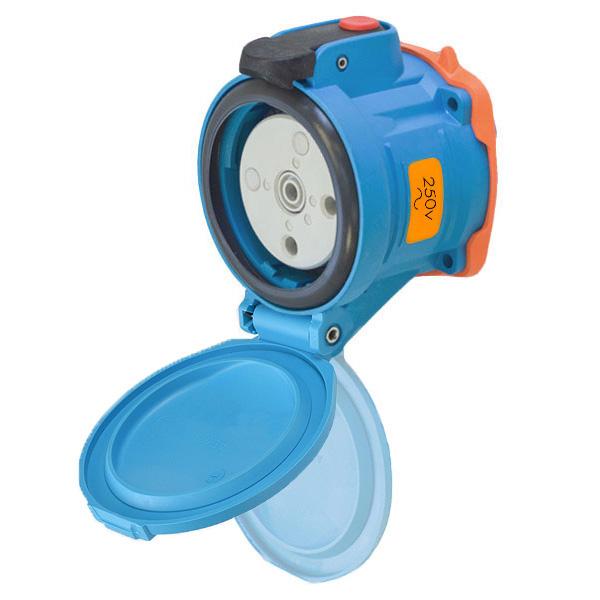

Meltric 63-64072
Brand: Meltric
Part Number: 63-64072
MELTRIC DECONTACTOR™ Female Receptacle, Switch Rated, Series: DSN60, 110/125/220/250 VAC, 60 A, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 4X NEMA Rating, IP66/IP67/IP69K Enclosure, -40 to 140 deg F, Screw Terminal, Polyester, Blue, 3.23 in Dia x 3.83 in L Dimensions
Additional Description: MELT-63-64072 DSN60 RECEPTACLE POLY BLUE SIZE 3 TYPE 4X IP 69 2P+G 60 A 250 VAC 60 Hz NO AUX
Catalog Description: Receptacle, With Ground, Short Circuit Rating 100 KAMP, Standard: UL, CSA, NOM, IEC, CE, NFPA 70E, Number Of Poles: 2, Number Of Wires: 3, Wire Size: 12 to 4AWG, Amperage Rating: 60AMP, Voltage Rating: 250V, Material: Polyester, Color: Blue, NEMA Rating:
63-64072 Application
Wet or Washdown Environments, Plug and Play Electrical Connections63-64072 Item Features
- Switch and hp rated (AC only)
- 100 kA short circuit rated
- Compact, lightweight design
- Up to 4 auxiliary contacts
- Spring assisted screw terminals patented design assures tighten and forget confidence
- Spring loaded butt-style contacts ensures optimal contact force and superior electrical performance over thousands of operations
- Lid provides additional protection from harsh environments
- OFF button press to de-energize and provides push button circuit disconnection
- Dead front/safety shutter assures safety by preventing user access to live parts
- 2 hp at 120 VAC, 3 hp at 240 VAC 1-phase, 7-1/2 hp at 208/240 VAC, 20 hp at 480/600 VAC 3-phase horsepower rating
63-64072 Standards
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 2682/1682|CSA 182.1|CE Certified|NOM Certified|IEC Certified|NFPA 70ESKU #2469673Part Number #63-64072UNSPSC39121406UPC00078447454900
Image provided may only be a representation of final product and may include optional equipment
