Part Number # 63-68043-974
SKU # 2179230
63-68043-974
Meltric 63-68043-974
Part Number # 63-68043-974
SKU # 2179230
$323.02 / Each
Typical price:$358.91 / Each
Meltric 63-68043-974 Key Features
| Brand: | Meltric |
|---|---|
| Part Number # : | 63-68043-974 |
| SKU #: | 2179230 |
| Dimensions: | 3.07 in Dia x 2.8 in L |
| Enclosure: | IP66/IP67/IP69k |
| Series: | DSN60 |
| Temperature Rating (Degrees F): | -40 to 140, -40 to 140 deg F |
| Type: | Switch Rated |
| Manufacturer Name: | Meltric Corporation |
| UNSPSC: | 39121402 |
| UPC: | 00078447454451 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$323.02 / Each
Typical price:$358.91 / Each
Quantity:
Meltric 63-68043-974
Brand: Meltric
Part Number: 63-68043-974

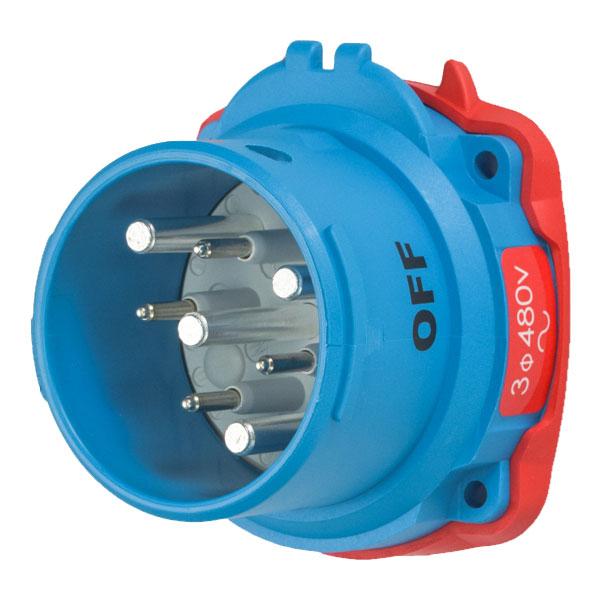

MELTRIC DECONTACTOR™ Male Inlet, Switch Rated, Series: DSN60, 255/277/440/480 VAC, 60 A, 20 hp, 60 Hz Frequency, 3 Pole, 4 Wires, NEMA 4X NEMA Rating, IP66/IP67/IP69K Enclosure, -40 to 140 deg F, Screw Terminal, Polyester, Blue, 3.07 in Dia x 2.8 in L Dimensions
Additional Description: MELT-63-68043-974 DSN60 INLET POLY BLUE SIZE 3 TYPE 4X IP 69 3P+G 60 A 480 VAC 60 Hz +4 AUX 63-68043-974
63-68043-974 Specifications
- Switch and hp rated (AC only)
- 100 kA short circuit rated
- Compact, lightweight design
- Up to 4 auxiliary contacts
- Fiberglass reinforced thermoplastic polyester material offers great resistance to impact, corrosion and harsh environmental conditions
- Solid silver nickel contact surfaces provide superior conductivity, durability and corrosion resistance
- 2 hp at 120 VAC, 3 hp at 240 VAC 1-phase, 7-1/2 hp at 208/240 VAC, 20 hp at 480/600 VAC 3-phase horsepower rating
63-68043-974 Application
Wet or Washdown Environments, Plug and Play Electrical Connections63-68043-974 Item Features
- Switch and hp rated (AC only)
- 100 kA short circuit rated
- Compact, lightweight design
- Up to 4 auxiliary contacts
- Fiberglass reinforced thermoplastic polyester material offers great resistance to impact, corrosion and harsh environmental conditions
- Solid silver nickel contact surfaces provide superior conductivity, durability and corrosion resistance
- 2 hp at 120 VAC, 3 hp at 240 VAC 1-phase, 7-1/2 hp at 208/240 VAC, 20 hp at 480/600 VAC 3-phase horsepower rating
63-68043-974 Standards
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 2682/1682|CSA 182.1|CE Certified|IEC CertifiedSKU #2179230Part Number #63-68043-974UNSPSC39121402UPC00078447454451
Image provided may only be a representation of final product and may include optional equipment
