Part Number # 63-68047-974
SKU # 2454234
Image Disclaimers Message
63-68047-974

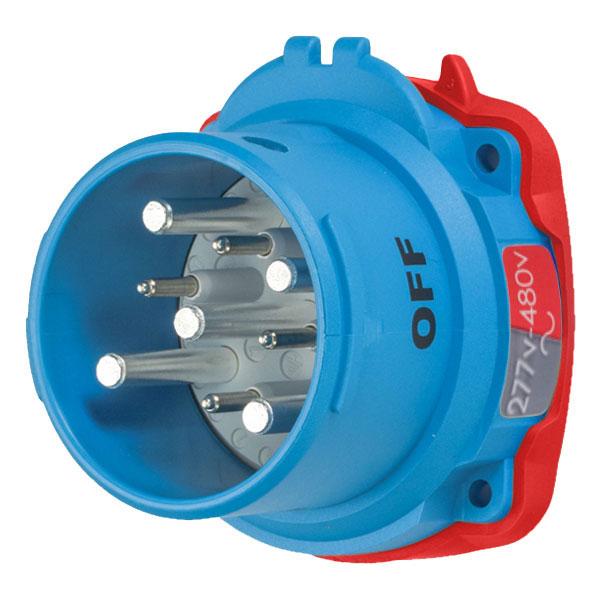

Meltric 63-68047-974
Part Number # 63-68047-974
SKU # 2454234
$361.64 / Each
Typical price:$401.82 / Each
Meltric 63-68047-974 Key Features
| Brand: | Meltric |
|---|---|
| Part Number # : | 63-68047-974 |
| SKU #: | 2454234 |
| Amperage Rating: | 60 A |
| Dimensions: | 3.07 in Dia x 2.8 in D |
| Enclosure: | IP69K |
| Frequency Rating: | 60 Hz |
| Horsepower: | 20 hp |
| NEMA Rating: | NEMA 4X |
| Number of Poles: | 4 |
| Number of Wires: | 5 |
| Series: | DSN |
| Temperature Rating (Degrees F): | -40 to 140 deg F |
| Terminal Type: | Screw |
| Type: | Male |
| Color: | Blue |
| Country of origin: | US |
| Material: | PBT |
| Manufacturer Name: | Meltric Corporation |
| UNSPSC: | 39121402 |
| UPC: | 00078447463964 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$361.64 / Each
Typical price:$401.82 / Each
Quantity:
- MELTRIC DECONTACTOR Switch Rated Inlet, Male, Series: DSN, 255/277/440/480 V AC, 60 A, 20 hp, 60 Hz Frequency, 4 Pole, 5 Wires, NEMA 4X, IP69K Enclosure, -40 to 140 deg F, Screw Terminal, PBT, Blue, 3.07 in Dia x 2.8 in D Dimensions
63-68047-974 Application
Industrial, Wet/Washdown Environments, Plug and Play Electrical Connections63-68047-974 Item Features
- Compact and lightweight design
- Automatic type 4X/IP69k watertightness
- Solid silver nickel contact surfaces provide superior conductivity, lid durability and corrosion resistance
- Fiberglass reinforced thermoplastic polyester material offers great resistance to impact, corrosion and harsh environmental conditions
- Spring assisted screw terminal patented design assures "Tighten and Forget" confidence
- Lockout tagout provisions allows plug to be easily locked out and tagged
- 20 hp at 480 VAC 3-phase horsepower rating
63-68047-974 Standards
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 2682|UL 1682|CSA C22.2 No. 182.1SKU #2454234Part Number #63-68047-974UNSPSC39121402UPC00078447463964
