Part Number # 63-68165
SKU # 2450648
Image Disclaimers Message
63-68165

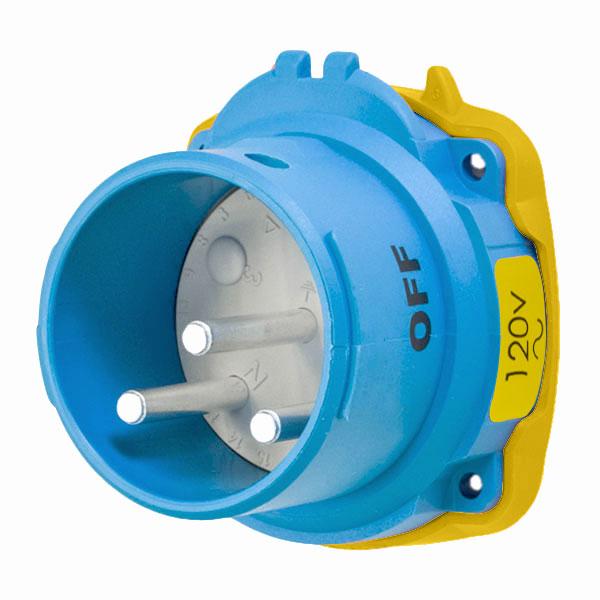

Meltric 63-68165
Part Number # 63-68165
SKU # 2450648
$215.46 / Each
Typical price:$239.40 / Each
Meltric 63-68165 Key Features
| Brand: | Meltric |
|---|---|
| Part Number # : | 63-68165 |
| SKU #: | 2450648 |
| Amperage Rating: | 60 A |
| Dimensions: | 3.07 in Dia x 2.8 in D |
| Enclosure: | IP69K |
| Frequency Rating: | 60 Hz |
| Horsepower: | 2 hp |
| NEMA Rating: | NEMA 4X |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Series: | DSN |
| Temperature Rating (Degrees F): | -40 to 140 deg F |
| Terminal Type: | Screw |
| Type: | Male |
| Color: | Blue |
| Country of origin: | US |
| Material: | PBT |
| Manufacturer Name: | Meltric Corporation |
| UNSPSC: | 39121402 |
| UPC: | 00078447403530 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$215.46 / Each
Typical price:$239.40 / Each
Quantity:
- MELTRIC DECONTACTOR Switch Rated Inlet, Male, Series: DSN, 120/127/208/220 V AC, 60 A, 2 hp, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 4X, IP69K Enclosure, -40 to 140 deg F, Screw Terminal, PBT, Blue, 3.07 in Dia x 2.8 in D Dimensions
63-68165 Application
Industrial, Wet/Washdown Environments, Plug and Play Electrical Connections63-68165 Item Features
- Compact and lightweight design
- Automatic type 4X/IP69k watertightness
- Solid silver nickel contact surfaces provide superior conductivity, lid durability and corrosion resistance
- Fiberglass reinforced thermoplastic polyester material offers great resistance to impact, corrosion and harsh environmental conditions
- Spring assisted screw terminal patented design assures "Tighten and Forget" confidence
- Lockout tagout provisions allows plug to be easily locked out and tagged
- 2 hp at 120 VAC 1-phase horsepower rating
63-68165 Standards
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 2682|UL 1682|CSA C22.2 No. 182.1SKU #2450648Part Number #63-68165UNSPSC39121402UPC00078447403530
