Part Number # 63-98143-262
SKU # 2457768
Image Disclaimers Message
Brand: Meltric
63-98143-262
Meltric 63-98143-262
Part Number # 63-98143-262
SKU # 2457768
$933.03 / Each
Typical price:$1036.70 / Each
Meltric 63-98143-262 Key Features
| Brand: | Meltric |
|---|---|
| Part Number # : | 63-98143-262 |
| SKU #: | 2457768 |
| Amperage Rating: | 150 A |
| Dimensions: | 4.59 in H x 5.11 in W x 4.14 in D |
| Enclosure: | IP69K |
| Frequency Rating: | 60 Hz |
| Horsepower: | 75 hp |
| NEMA Rating: | NEMA 4X |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Series: | DSN |
| Temperature Rating (Degrees F): | -40 to 140 deg F |
| Terminal Type: | Screw |
| Type: | Male |
| Country of origin: | US |
| Material: | PBT |
| Manufacturer Name: | Meltric Corporation |
| UNSPSC: | 39121402 |
| UPC: | 00078447402549 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$933.03 / Each
Typical price:$1036.70 / Each
Quantity:
Meltric 63-98143-262
Brand: Meltric
Part Number: 63-98143-262

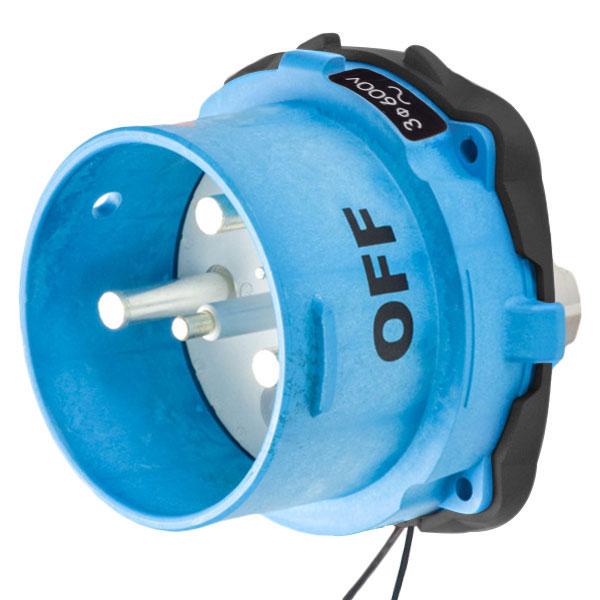

MELTRIC DECONTACTOR™ Switch Rated Inlet, Male, Series: DSN, 347/600 VAC, 150 A, 75 hp, 60 Hz Frequency, 3 Pole, 4 Wires, NEMA 4X, IP69K Enclosure, -40 to 140 deg F, Screw Terminal, PBT, Blue, 4.59 in H x 5.11 in W x 4.14 in D Dimensions
Additional Description: MELT-63-98143-262 DSN150 INLET POLY BLUE SIZE 5 TYPE 4X IP 69 3P+G 150 A 600 VAC 60 Hz +2 AUX
63-98143-262 Application
Industrial, Wet/Washdown Environments, Plug and Play Electrical Connections63-98143-262 Item Features
- Compact and lightweight design
- Automatic type 4X/IP69k watertightness
- Solid silver nickel contact surfaces provide superior conductivity, lid durability and corrosion resistance
- Fiberglass reinforced thermoplastic polyester material offers great resistance to impact, corrosion and harsh environmental conditions
- Spring assisted screw terminal patented design assures "Tighten and Forget" confidence
- Lockout tagout provisions allows plug to be easily locked out and tagged
- 75 hp at 600 VAC 3-phase horsepower rating
63-98143-262 Standards
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 2682|UL 1682|CSA C22.2 No. 182.1SKU #2457768Part Number #63-98143-262UNSPSC39121402UPC00078447402549
