Brand: Mersen
30323

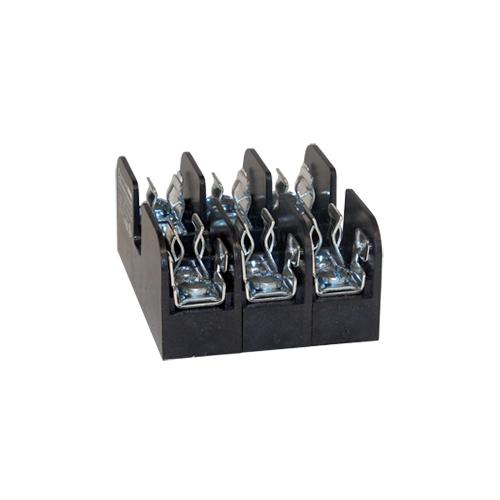

Mersen 30323 Fuse Block
Part Number # 30323
SKU # 31959
$147.00 / 5Each
Typical price:$338.73 / Each
Mersen 30323 Key Features
| Brand: | Mersen |
|---|---|
| Part Number # : | 30323 |
| SKU #: | 31959 |
| Amperage Rating: | 30, 30 A |
| Class: | Midget |
| Dimensions: | 2.35 in W x 1.31 in D x 3.04 in H, 3.04 in H x 2.35 in W x 1.31 in D |
| Fuse Diameter: | 13/32, 13/32 in |
| Fuse Length: | 1-1/2, 1-1/2 in |
| Number of Phases: | 3 |
| Number of Poles: | 3 |
| Series: | 303 |
| Suitable For Use With: | ATQ, ATM, A6Y-2B, A25Z-2, TRM, OTM, A15QS-2, GFN, GGU, A60Q-2, DCT Series Fuse, ATQ/ATM/A6Y-2B/A25Z-2/TRM/OTM/A15QS-2/GFN/GGU/A60Q-2/DCT Series Fuse |
| Temperature Rating (Degrees F): | 125, 125 deg C |
| Type: | Open Style |
| Wire Size: | 14 to 10, 14 to 10 AWG |
| Connection type: | Pressure Plate/Double Quick-Connect |
| Country of origin: | MX |
| Material: | Glass Reinforced Polycarbonate |
| Mounting type: | DIN Rail/Threaded |
| Manufacturer Name: | MERSEN |
| UNSPSC: | 39121629 |
| UPC: | 00782001758264 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$147.00 / 5Each
Typical price:$338.73 / Each
Quantity:
- Mersen Fuse Block, Open Style, Series: 303, 600 V AC/DC, 30 A, 3 Pole, 3 ph, Class: Midget, Pressure Plate/Double Quick-Connect Connection, 14 to 10 AWG Wire, DIN Rail/Threaded Mounting, 1-1/2 in Fuse Length, 13/32 in Diameter Fuse, 125 deg C, For Use With: ATQ, ATM, A6Y-2B, A25Z-2, TRM, OTM, A15QS-2, GFN, GGU, A60Q-2, DCT Series Fuse, Glass Reinforced Polycarbonate, 2.35 in W x 1.31 in D x 3.04 in H Dimensions
30323 Item Features
- 20 in-lb torque rating
- Tin-plated copper contact
30323 Standards
RoHS Compliant|UL 4248-14 Guide IZLT File no. E52283|CSA C22.2 Class 6225/32169SKU #31959Part Number #30323UNSPSC39121629UPC00782001758264
