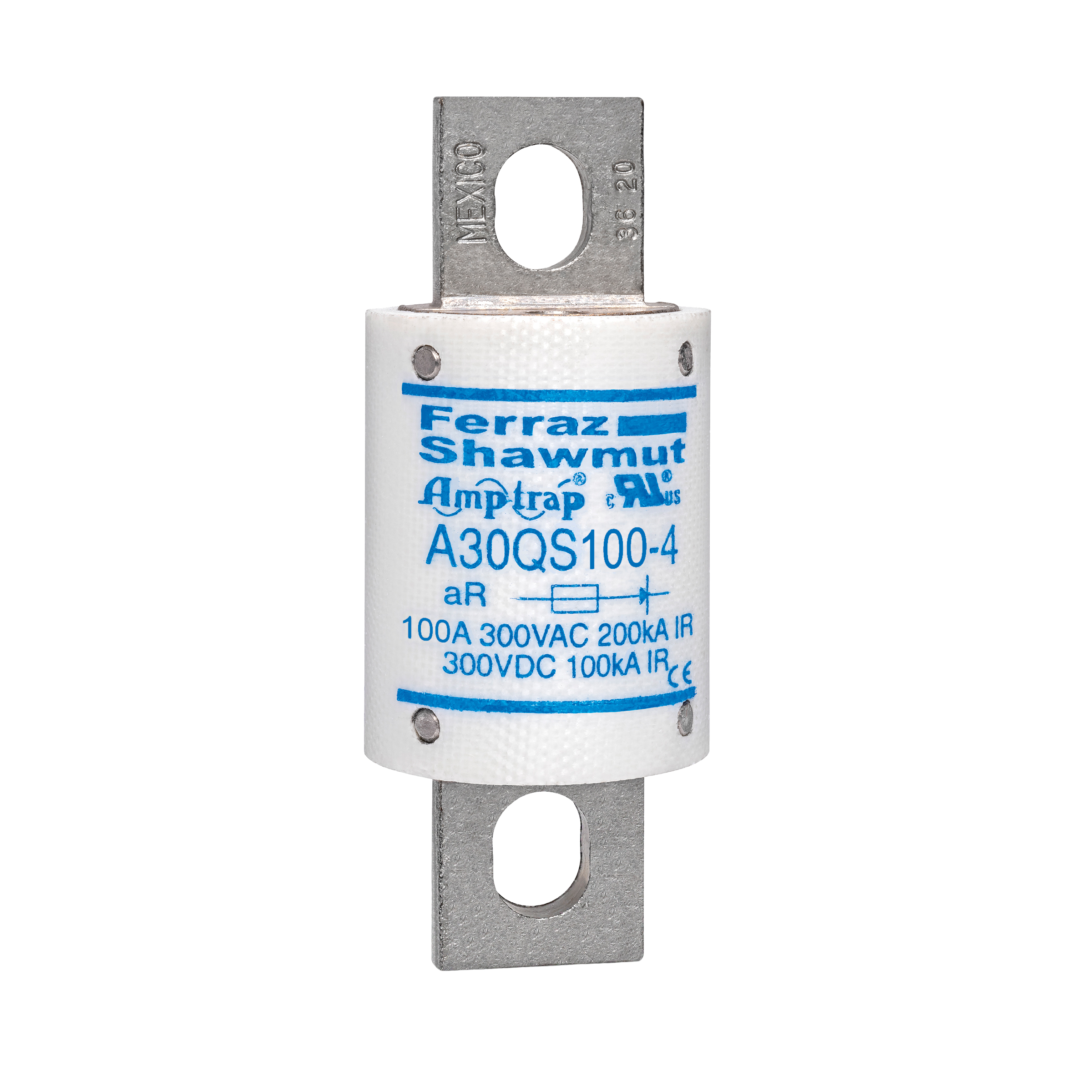

Part #:A30QS100-4
SKU #: 2149140
$1173.70/10EA
Key Features
Part #:A30QS100-4
SKU #: 2149140
Brand: Mersen
Amperage Rating: 100, 100 A
Body Type: Cylindrical
Interrupt Rating: 200/100, 200/100 kA
Rejection/Non-Rejection: Non-Rejection
Response Time: 10, 10 ms
$1173.70/10EA
- Low I2T minimizes damage to protected components on short circuit
- Controlled arc voltage reduces stress to circuit components during fuse clearing
- Choice of mounting types helps in equipment design
- Superior DC capabilities
- Tin-plated brass, silver-plated copper, silver-plated brass contact
- North American round style
Specifications
Brand: Mersen
Amperage Rating: 100, 100 A
Body Type: Cylindrical
Interrupt Rating: 200/100, 200/100 kA
Rejection/Non-Rejection: Non-Rejection
Response Time: 10, 10 ms
Series: A30QS
Terminal Type: Blade
Type: Current Limiting Fast Acting High Speed
Voltage Rating: 300, 300 VAC/VDC
Country of origin: MX
Material: Ceramic
Mounting type: Bolt
Manufacturer Name: MERSEN
UNSPSC: 39121628
UPC: 00782001280741
Item FeaturesFor protection of AC/DC drives, UPS and other equipment of 300 V or less
Item Features
Item FeaturesRoHS Compliant|UL File No. E60314|UL Guide No.JFHR2
