Brand: Mersen
A331154

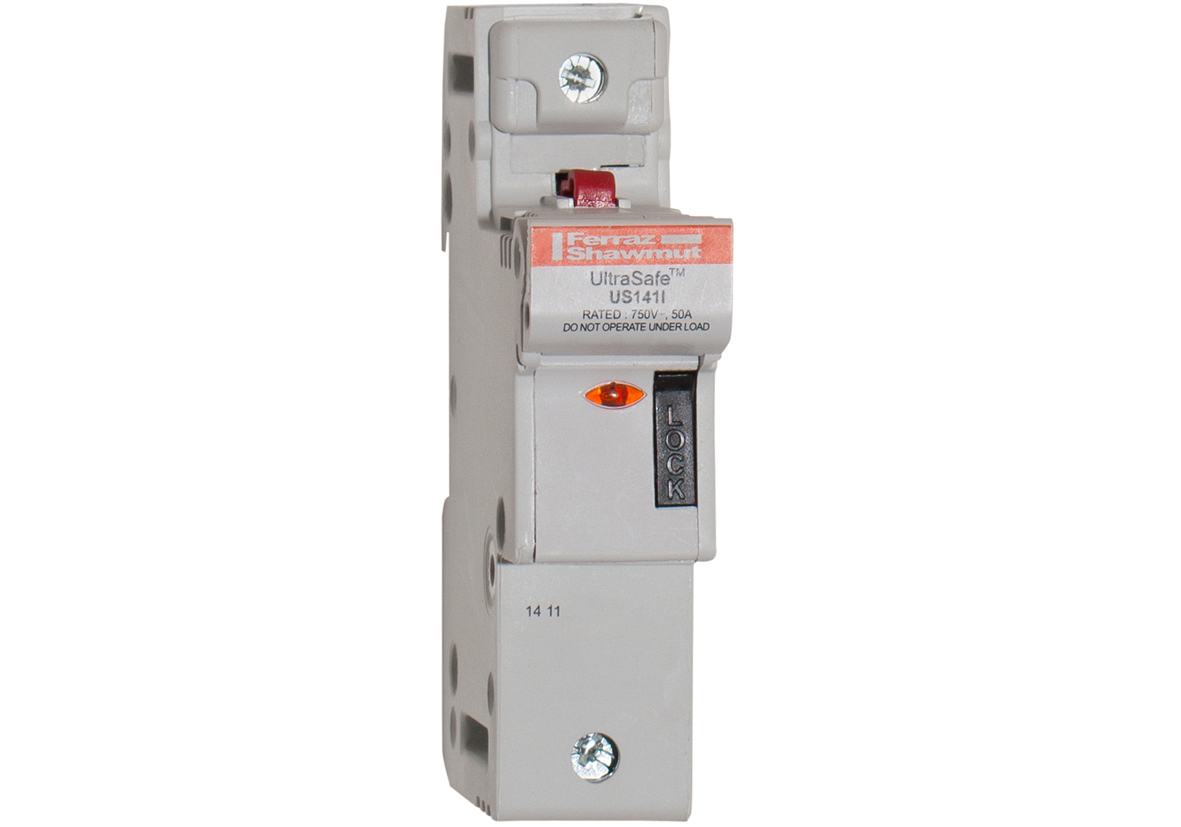

Mersen A331154 UltraSafe Modular Fuse Holder
Part Number # A331154
SKU # 2338520
$531.30 / 6Each
Typical price:$979.26 / Each
Mersen A331154 Key Features
| Brand: | Mersen |
|---|---|
| Part Number # : | A331154 |
| SKU #: | 2338520 |
| Amperage Rating: | 50, 50 A |
| Dimensions: | 107 mm H x 26.5 mm W x 94 mm D, 26.5 mm W x 94 mm D x 107 mm H |
| Fuse Diameter: | 14, 14 mm |
| Fuse Length: | 51, 51 mm |
| Number of Phases: | 1 |
| Number of Poles: | 1 |
| Series: | US14 |
| Suitable For Use With: | 14 x 51 mm Cylindrical Fuse Link, Cylindrical Fuse Link |
| Temperature Rating (Degrees F): | -25 to 60, -25 to 60 deg C |
| Wire Size: | 14 to 2, 14 to 2 AWG |
| Connection type: | Pressure Plate |
| Country of origin: | TN |
| Material: | Thermoplastic |
| Mounting type: | DIN Rail |
| Manufacturer Name: | MERSEN |
| UNSPSC: | 39121624 |
| UPC: | 00782001310967 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$531.30 / 6Each
Typical price:$979.26 / Each
Quantity:
- Mersen UltraSafe Modular Fuse Holder, Series: US14, 750 V AC/DC, 50 A, 5 W Power, 1 Pole, 1 ph, Pressure Plate Connection, 14 to 2 AWG Wire, DIN Rail Mounting, 51 mm Fuse Length, 14 mm Diameter Fuse, -25 to 60 deg C, For Use With: 14 x 51 mm Cylindrical Fuse Link, Thermoplastic, 26.5 mm W x 94 mm D x 107 mm H Dimensions
A331154 Application
For all circuits up to 750 V requiring semiconductor fuses for protection of small inverters, UPS systems and motor drivesA331154 Item Features
- Fingersafe IP20 protection
- Lockable and sealable in closed and open position
- Flame-retardant materials with glow wire flammability index to 960 deg C
- Fingersafe optional blown fuse indicator lights optional microswitches
- DIN-rail mount compact footprint quick, easy fuse change outs
A331154 Standards
CE Marking|CSA C22.2 Class 6225 File No. 32169|IEC 60269-2-1/60947-3|RoHS Compliant|UL 4248-1 IZLT2 File No. E52283SKU #2338520Part Number #A331154UNSPSC39121624UPC00782001310967
