Mersen A6D300RN A6D-R Current Limiting Low Voltage North American Time Delay Fuse, 300 A, 600 VAC/VDC, 200 kA Interrupt, Class: Class RK1, Cylindrical Body
Part Number # A6D300RN
SKU # 2433854

A6D300RN
Mersen A6D300RN A6D-R Current Limiting Low Voltage North American Time Delay Fuse, 300 A, 600 VAC/VDC, 200 kA Interrupt, Class: Class RK1, Cylindrical Body
Part Number # A6D300RN
SKU # 2433854
Mersen A6D300RN Key Features
| Brand: | Mersen |
|---|---|
| Part Number # : | A6D300RN |
| SKU #: | 2433854 |
| UNSPSC: | 39121604 |
| UPC: | 00782001504847 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Mersen A6D300RN A6D-R Current Limiting Low Voltage North American Time Delay Fuse, 300 A, 600 VAC/VDC, 200 kA Interrupt, Class: Class RK1, Cylindrical Body
Brand: Mersen
Part Number: A6D300RN
Mersen, A6D300RN, Fuse, Current Limiting Low Voltage North American Time Delay, Series: A6D-R, Non-Indicating, Rejection, 300 A, 600 V AC/DC, 200 kA Interrupt, Class: Class RK1, 50 to 60 Hz Frequency, Blade Terminal, Clip Mounting, Cylindrical Body, Dual Element, Fiber Glass, 11-5/8 in L x 2-9/16 in Dia Body
Additional Description: MERS-A6D300RN 600V 300A RK1 TD FUSE NON IND Indicating
Catalog Description: Fuse A6D-R - Class RK1 - Time-Delay 600VAC 600VDC 300A Blade Amp-Trap 2000®
A6D300RN Application
For Motors Safety switches, Transformers, Branch circuit protection, Disconnects, Control panels, All general-purpose circuitsA6D300RN Item Features
- Amp-Trap 2000 time-delay A2D-R fuses provide IEC Type 2 no damage protection to existing mains, feeders, and branch circuits serving motor and non-motor loads
- A2D-R fuses will open fast enough under extreme fault conditions for maximum short circuit protection to prevent damage to motor starters, switches, and other circuit components, yet also provide the time-delay needed for motor in-rush currents
- A2D-R fuses can be used to replace older 250V Class H, K or RK5 fuses already installed in the field
- Time-delay for motor starting and transformer inrush currents without nuisance opening
- Extremely current-limiting for low peak let-thru current
- High-visibility orange label gives instant brand recognition
- Reduced inventory by taking the place of class RK5, K, and H fuses
- Metal-embossed date and catalog number for easier traceability and lasting identification
A6D300RN Standards
Class RK1|UL Listed to Standard 248-12 File E2137|DC Listed to UL Standard 248|CSA Certified to Standard C22.2 No. 248.12|RoHS CompliantSKU #2433854Part Number #A6D300RNUNSPSC39121604UPC00782001504847

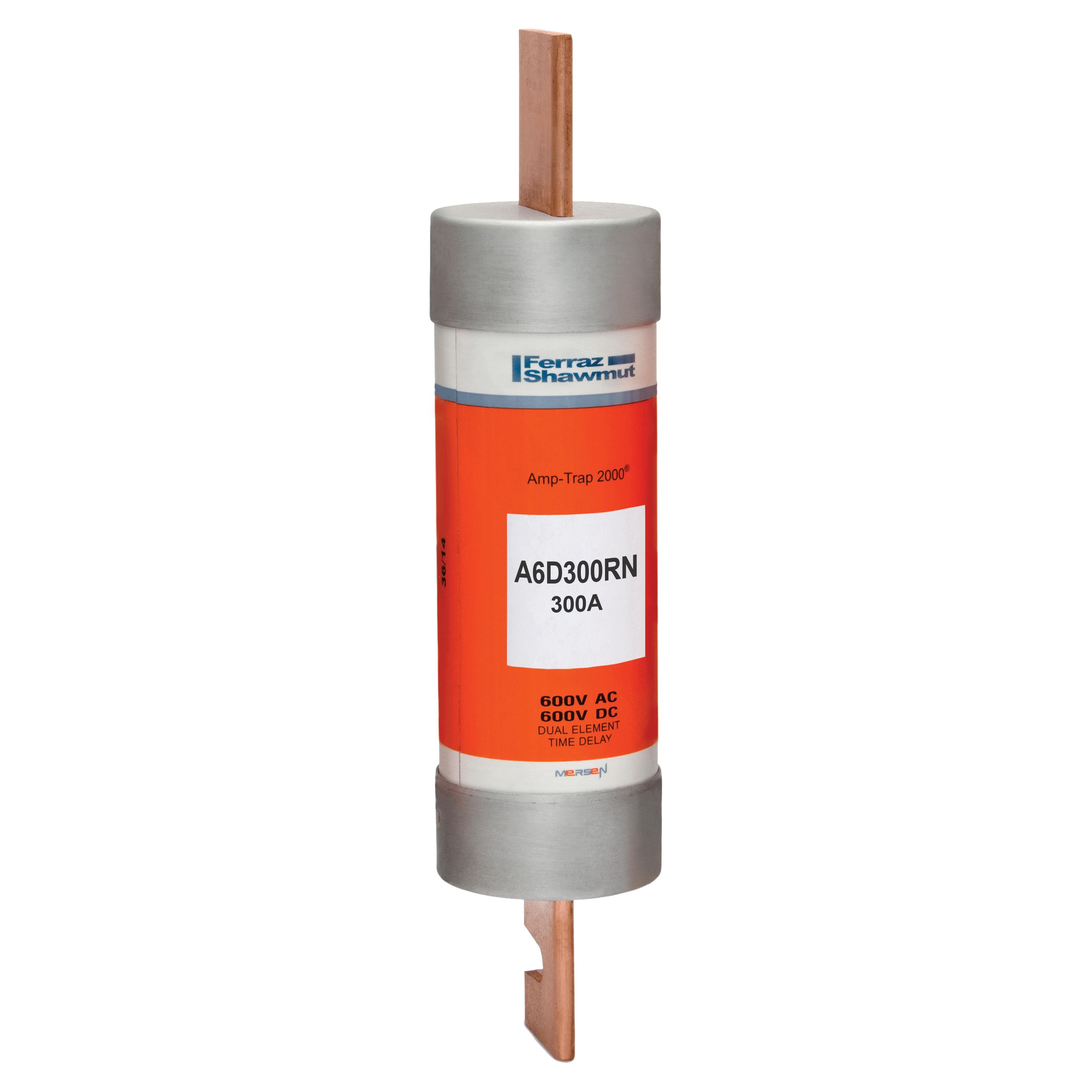

Image provided may only be a representation of final product and may include optional equipment
