Mersen AJT12ID
Part Number # AJT12ID
SKU # 32119

AJT12ID
Mersen AJT12ID
Part Number # AJT12ID
SKU # 32119
Mersen AJT12ID Key Features
| Brand: | Mersen |
|---|---|
| Part Number # : | AJT12ID |
| SKU #: | 32119 |
| UNSPSC: | 39121604 |
| UPC: | 00782001518899 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Mersen AJT12ID
Brand: Mersen
Part Number: AJT12ID
Mersen AMP-TRAP 2000 SmartSpot Power Fuse, Current Limiting Low Voltage North American Time Delay, Series: AJT, Indicating, Rejection, 12 A, 600 V AC, 200 kA Interrupt, Class: J, Ferrule Terminal, Clip Mounting, Cylindrical Body, Dual Element, Fiberglass, 13/16 in Dia x 2-1/4 in L Body
Additional Description: MERS-AJT12ID 600V 12A CLASS J TD FUSE 600VAC 500VDC 12A FERRULE INDICATING VERSION
Catalog Description: Fuse AJT - Class J - Time-delay 600VAC 400VDC 12A Ferrule SmartSpot® Amp-Trap 2000®
AJT12ID Application
Motor Circuits, Mains, Feeders, Branch Circuits, Lighting, Heaters, Transformers, Control Panels, Circuit Breaker Back-Up, Bus Duct and Load Centers ApplicationsAJT12ID Item Features
- Solid state SmartSpot indicator
- Time delay for motor starting and transformer inrush
- 300 kA interrupting rating, self certified (UL witnessed)
- Extremely current limiting for low peak let-thru current
- Most current limiting UL class fuse
- Small footprint requires less mounting space and allows smaller, more economical fuse blocks
- Easy 2-to-1 selectivity for prevention of nuisance shutdowns
- Unique class J dimensions prevent replacement errors
- High visibility orange label gives instant recognition
- Metal embossed date and catalog number for traceability and lasting identification
- Fiberglass body provides dimensional stability in harsh industrial settings
- High grade silica filler ensures fast arc quenching
- Tin-plated copper, silver-plated copper contact
AJT12ID Standards
CSA C22.2 No. 248.8|DC Listed|IEC 269-2-1|RoHS Compliant|UL 248|UL 248-8 File No. E2137SKU #32119Part Number #AJT12IDUNSPSC39121604UPC00782001518899

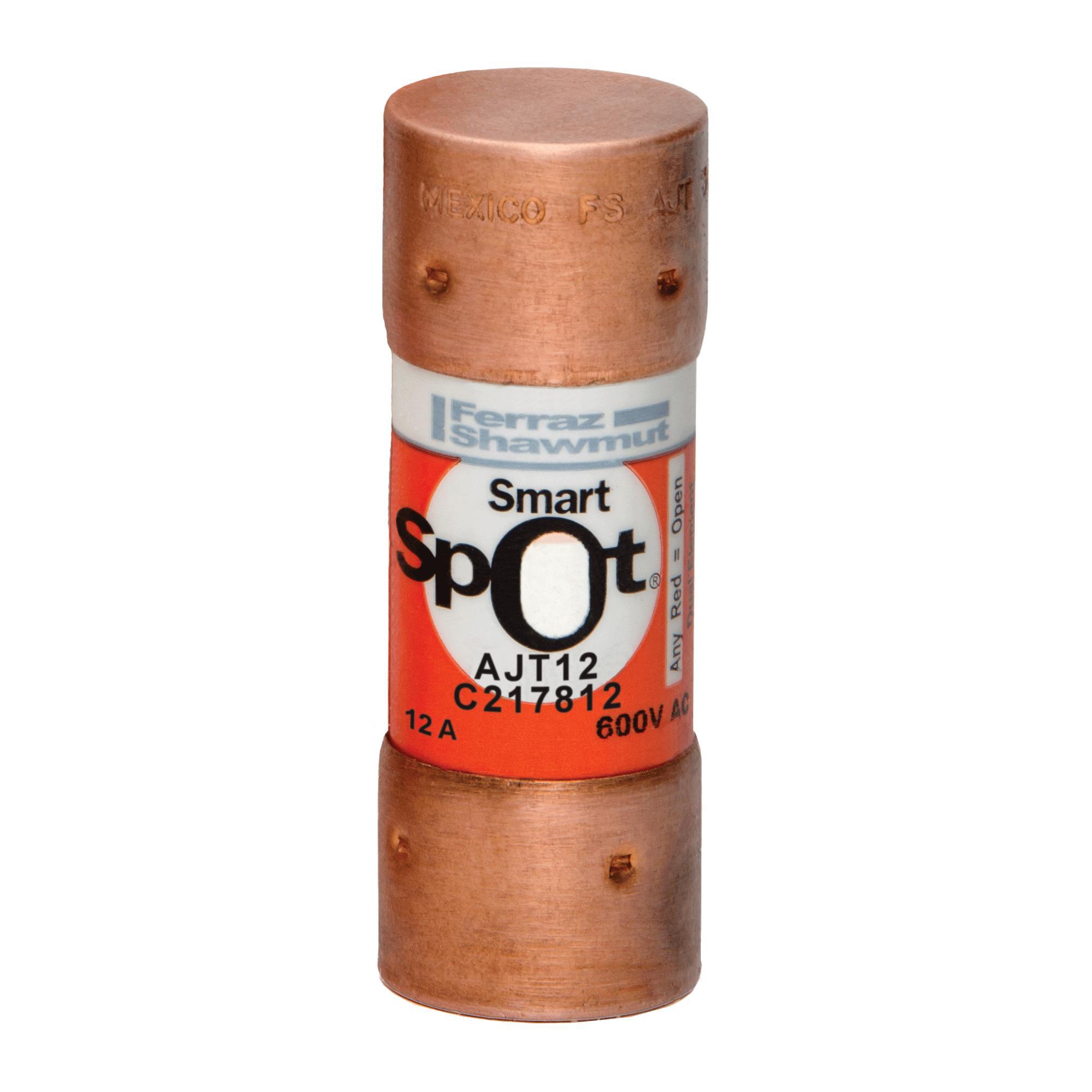

Image provided may only be a representation of final product and may include optional equipment
