Part Number # AJT20ID
SKU # 32123
AJT20ID
Mersen AJT20ID
Part Number # AJT20ID
SKU # 32123
Mersen AJT20ID Key Features
| Brand: | Mersen |
|---|---|
| Part Number # : | AJT20ID |
| SKU #: | 32123 |
| Series: | AJT |
| UNSPSC: | 39121604 |
| UPC: | 00782001518837 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Mersen AJT20ID
Brand: Mersen
Part Number: AJT20ID

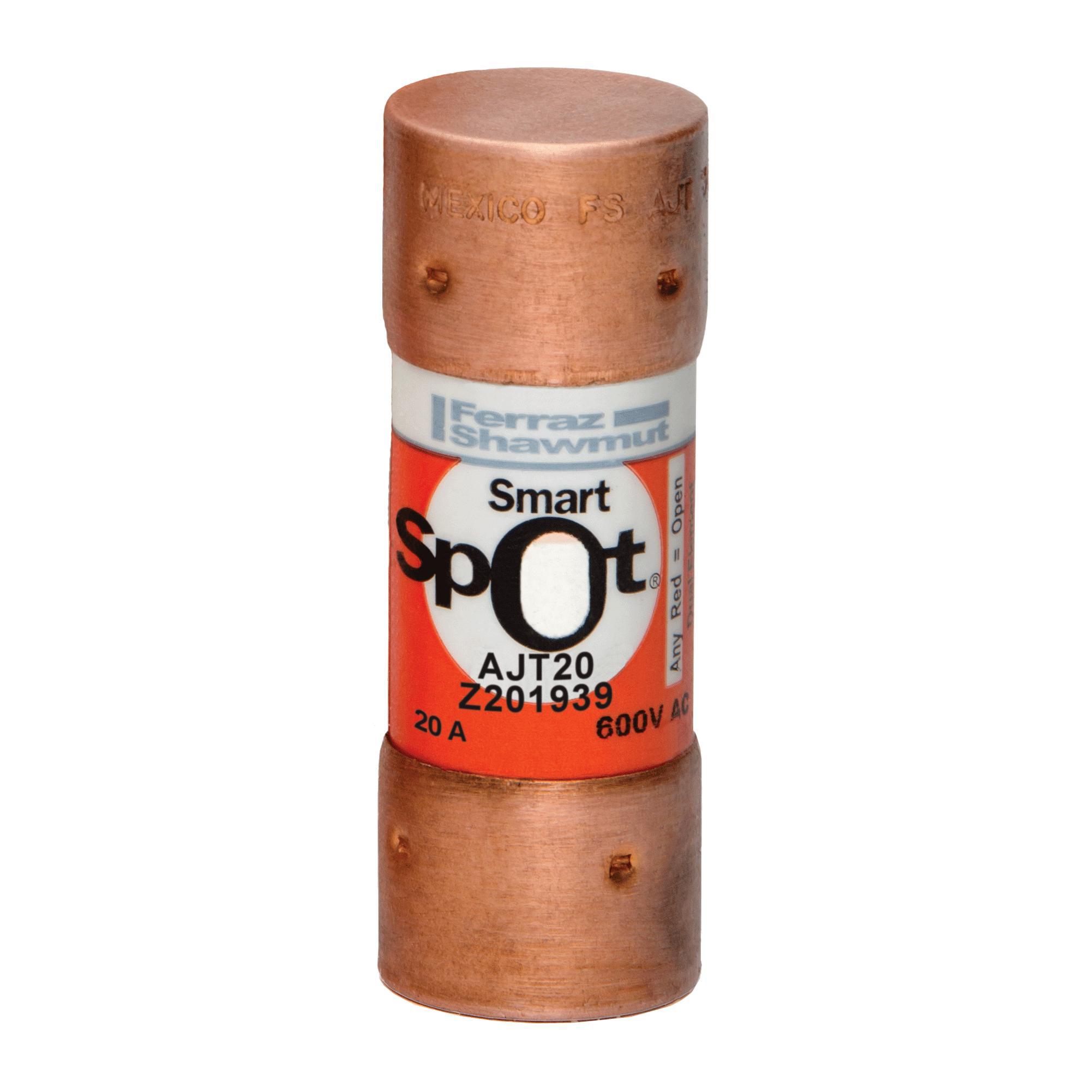

Mersen AMP-TRAP 2000 SmartSpot Power Fuse, Current Limiting Low Voltage North American Time Delay, Series: AJT, Indicating, Rejection, 20 A, 600 V AC, 200 kA Interrupt, Class: J, Ferrule Terminal, Clip Mounting, Cylindrical Body, Dual Element, Fiberglass, 13/16 in Dia x 2-1/4 in L Body
Additional Description: MERS-AJT20ID J TD FUSE 600V 20A AJT 600VAC 400VDC 20A FERRULE INDICATING VERSION
Catalog Description: Fuse AJT - Class J - Time-delay 600VAC 400VDC 20A Ferrule Amp-Trap 2000®
AJT20ID Application
Motor Circuits, Mains, Feeders, Branch Circuits, Lighting, Heaters, Transformers, Control Panels, Circuit Breaker Back-Up, Bus Duct and Load Centers ApplicationsAJT20ID Item Features
- Solid state SmartSpot indicator
- Time delay for motor starting and transformer inrush
- 300 kA interrupting rating, self certified (UL witnessed)
- Extremely current limiting for low peak let-thru current
- Most current limiting UL class fuse
- Small footprint requires less mounting space and allows smaller, more economical fuse blocks
- Easy 2-to-1 selectivity for prevention of nuisance shutdowns
- Unique class J dimensions prevent replacement errors
- High visibility orange label gives instant recognition
- Metal embossed date and catalog number for traceability and lasting identification
- Fiberglass body provides dimensional stability in harsh industrial settings
- High grade silica filler ensures fast arc quenching
- Tin-plated copper, silver-plated copper contact
AJT20ID Standards
CSA C22.2 No. 248.8|DC Listed|IEC 269-2-1|RoHS Compliant|UL 248|UL 248-8 File No. E2137SKU #32123Part Number #AJT20IDUNSPSC39121604UPC00782001518837
Image provided may only be a representation of final product and may include optional equipment
