Mersen AJT225ID
Part Number # AJT225ID
SKU # 2155990

AJT225ID
Mersen AJT225ID
Part Number # AJT225ID
SKU # 2155990
Mersen AJT225ID Key Features
| Brand: | Mersen |
|---|---|
| Part Number # : | AJT225ID |
| SKU #: | 2155990 |
| UNSPSC: | 39121604 |
| UPC: | 00782001518493 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Mersen AJT225ID
Brand: Mersen
Part Number: AJT225ID

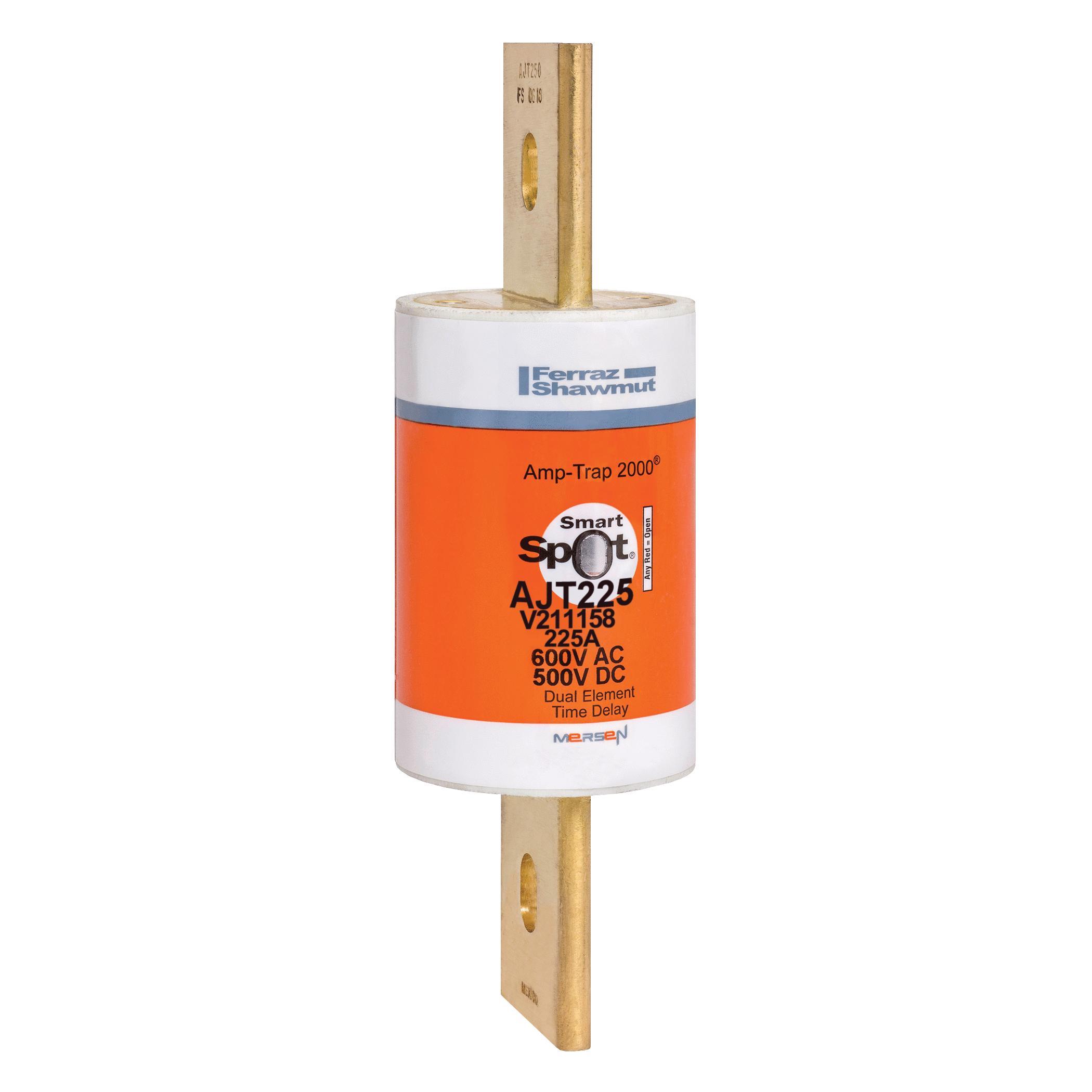

Mersen AMP-TRAP 2000 SmartSpot Power Fuse, Current Limiting Low Voltage North American Time Delay, Series: AJT, Indicating, Rejection, 225 A, 600 V AC, 200 kA Interrupt, Class: J, Blade Terminal, Clip Mounting, Cylindrical Body, Dual Element, Fiberglass, 2-1/8 in Dia x 7-1/8 in L Body
Additional Description: MERS-AJT225ID 600V 225A CLASS J TD FUSE 600VAC 500VDC 225A BLADE SMARTSPOT INDICATING VERSION
Catalog Description: Fuse AJT - Class J - Time-delay 600VAC 400VDC 225A Blade SmartSpot® Amp-Trap 2000®
AJT225ID Application
Motor Circuits, Mains, Feeders, Branch Circuits, Lighting, Heaters, Transformers, Control Panels, Circuit Breaker Back-Up, Bus Duct and Load Centers ApplicationsAJT225ID Item Features
- Solid state SmartSpot indicator
- Time delay for motor starting and transformer inrush
- 300 kA interrupting rating, self certified (UL witnessed)
- Extremely current limiting for low peak let-thru current
- Most current limiting UL class fuse
- Small footprint requires less mounting space and allows smaller, more economical fuse blocks
- Easy 2-to-1 selectivity for prevention of nuisance shutdowns
- Unique class J dimensions prevent replacement errors
- High visibility orange label gives instant recognition
- Metal embossed date and catalog number for traceability and lasting identification
- Fiberglass body provides dimensional stability in harsh industrial settings
- High grade silica filler ensures fast arc quenching
- Tin-plated copper, silver-plated copper contact
AJT225ID Standards
CSA C22.2 No. 248.8|DC Listed|IEC 269-2-1|RoHS Compliant|UL 248|UL 248-8 File No. E2137SKU #2155990Part Number #AJT225IDUNSPSC39121604UPC00782001518493
Image provided may only be a representation of final product and may include optional equipment
