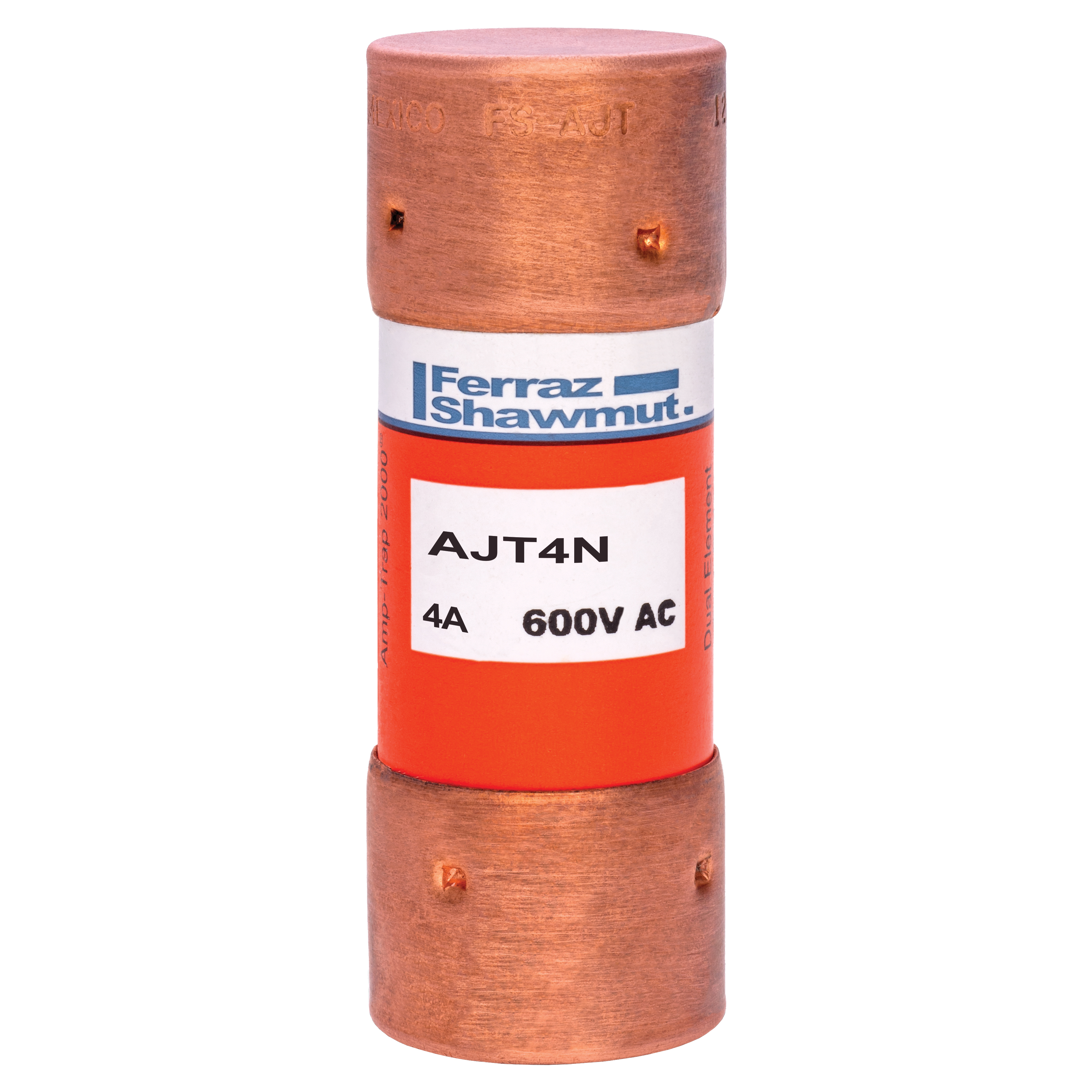

Mersen AJT4N Time Delay Fuse
Part Number # AJT4N
SKU # 2374787
$476.40 / 10Each
Typical price:$1140.31 / Each
Mersen AJT4N Key Features
| Brand: | Mersen |
|---|---|
| Part Number # : | AJT4N |
| SKU #: | 2374787 |
| Amperage Rating: | 4 A |
| Class: | J |
| Frequency Rating: | 50/60 Hz |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 100 kA at 500 VDC, 200 kA at 600 VAC |
| Rejection/Non-Rejection: | Non-Rejection |
| Series: | AJT |
| Terminal Type: | Ferrule |
| Color: | Orange |
| Country of origin: | MX |
| Material: | Fiberglass, GMG |
| Mounting type: | Clip |
| Manufacturer Name: | MERSEN |
| UNSPSC: | 39121604 |
| UPC: | 00782001498085 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$476.40 / 10Each
Typical price:$1140.31 / Each
Quantity:
- Mersen, AJT4N, Time Delay Fuse, Series: AJT, Non-Indicating, Non-Rejection, 4 A, 600 V AC/500 V DC, 100 kA at 500 VDC, 200 kA at 600 VAC Interrupt, Class: J, 50/60 Hz Frequency, Ferrule Terminal, Clip Mounting, Dual Element, GMG, Orange, 13/16 in Dia x 2-1/4 in L Body
AJT4N Application
Motor Circuit, Main, Feeder, Branch Circuit, Lighting, Heating and General Load, Transformer, Control Panel, Circuit Breaker Back Up, Bus Duct and Load Center ApplicationsAJT4N Item Features
- Non-indicating or solid state smartspot visual blown fuse indicator
- Time delay for motor starting and transformer inrush
- 300 kA interrupting rating self certified, UL witnessed tests
- Extremely current limiting for low peak let thru current
- Non-indicating fuses suitable for use in NEC class I division 2 hazardous locations
- Recommended for arc flash energy reduction
- Small footprint requires less mounting space and allows smaller, more economical fuse blocks
- Easy 2 to 1 selectivity for prevention of nuisance shutdowns
- Unique class J dimensions prevent replacement errors
- High visibility orange label gives instant brand recognition
- Metal embossed date and catalog number for traceability and lasting identification
- Fiberglass body provides dimensional stability in harsh environments
- High-grade silica filler ensures fast arc quenching
AJT4N Standards
CSA Certified|IEC 60269-2-1|RoHS Compliant|UL 248-7 File No. E2137SKU #2374787Part Number #AJT4NUNSPSC39121604UPC00782001498085
