Mersen AJT5
Part Number # AJT5
SKU # 2374790

AJT5
Mersen AJT5
Part Number # AJT5
SKU # 2374790
Mersen AJT5 Key Features
| Brand: | Mersen |
|---|---|
| Part Number # : | AJT5 |
| SKU #: | 2374790 |
| UNSPSC: | 39121604 |
| UPC: | 00782001963088 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Mersen AJT5
Brand: Mersen
Part Number: AJT5

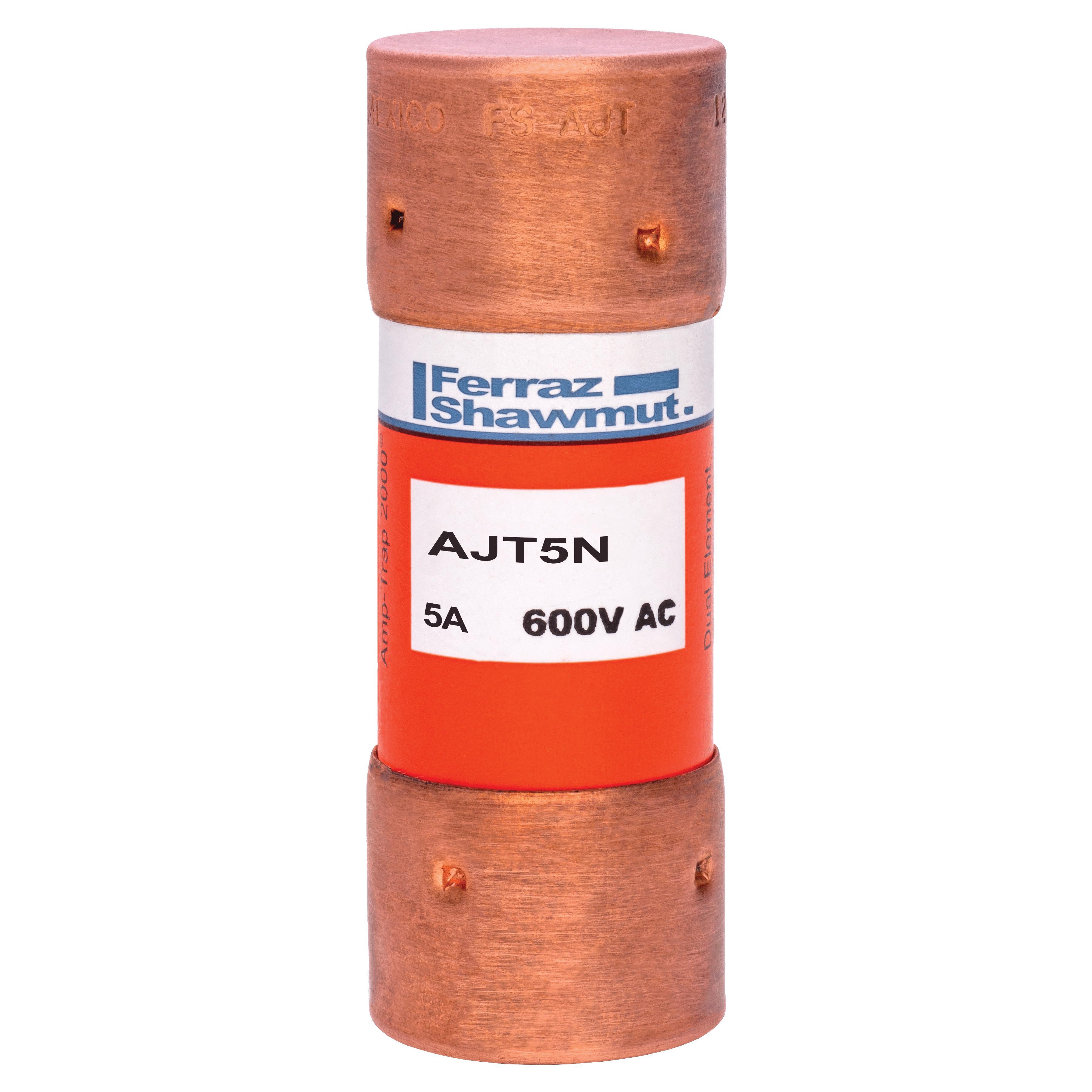

Mersen Time Delay Fuse, Series: AJT, Non-Indicating, Non-Rejection, 5 A, 600 V AC/500 V DC, 100 kA at 500 VDC, 200 kA at 600 VAC Interrupt, Class: J, 50/60 Hz Frequency, Ferrule Terminal, Clip Mounting, Dual Element, GMG, Orange, 13/16 in Dia x 2-1/4 in L Body
Additional Description: MERS-AJT5 600V 5A J TD NON-IND 600VAC 500VDC 5A FERRULE NON-INDICATING VERSIONS
Catalog Description: Fuse AJT - Class J - Time-delay 600VAC 500VDC 5A Ferrule Amp-Trap 2000®
AJT5 Application
Motor Circuit, Main, Feeder, Branch Circuit, Lighting, Heating and General Load, Transformer, Control Panel, Circuit Breaker Back Up, Bus Duct and Load Center ApplicationsAJT5 Item Features
- Non-indicating or solid state smartspot visual blown fuse indicator
- Time delay for motor starting and transformer inrush
- 300 kA interrupting rating self certified, UL witnessed tests
- Extremely current limiting for low peak let thru current
- Non-indicating fuses suitable for use in NEC class I division 2 hazardous locations
- Recommended for arc flash energy reduction
- Small footprint requires less mounting space and allows smaller, more economical fuse blocks
- Easy 2 to 1 selectivity for prevention of nuisance shutdowns
- Unique class J dimensions prevent replacement errors
- High visibility orange label gives instant brand recognition
- Metal embossed date and catalog number for traceability and lasting identification
- Fiberglass body provides dimensional stability in harsh environments
- High-grade silica filler ensures fast arc quenching
AJT5 Standards
CSA Certified|IEC 60269-2-1|RoHS Compliant|UL 248-7 File No. E2137SKU #2374790Part Number #AJT5UNSPSC39121604UPC00782001963088
Image provided may only be a representation of final product and may include optional equipment
