Brand: Mersen

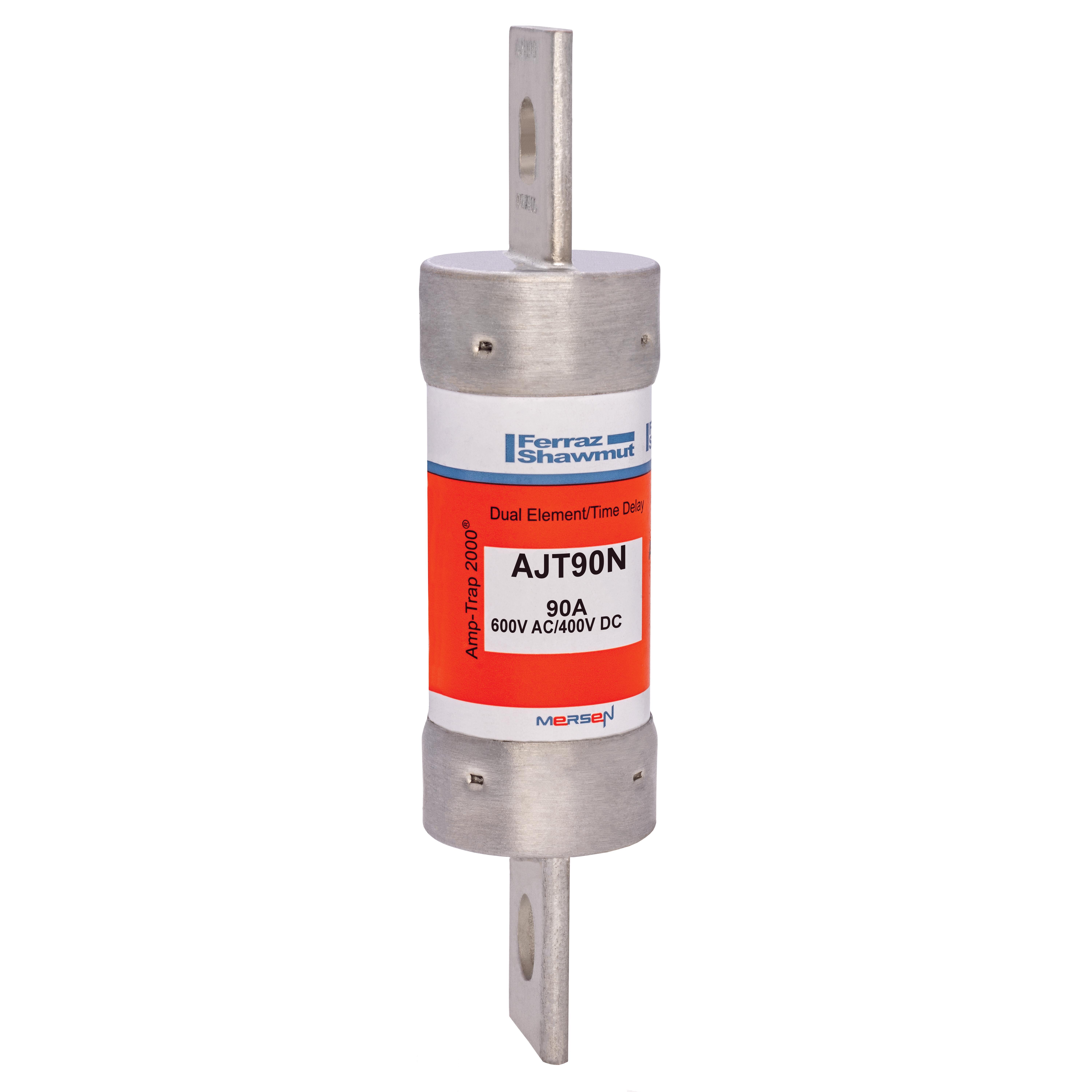

Mersen AJT90N Amp-Trap 2000 Power Fuse
Image Disclaimers Message
Brand: Mersen
Mersen AJT90N Amp-Trap 2000 Power Fuse
Brand: Mersen
Mersen AJT90N Amp-Trap 2000 Power Fuse
Part #:AJT90N
SKU #: 2374798
$683.40/5EA
Key Features
Part #:AJT90N
SKU #: 2374798
Brand: Mersen
Amperage Rating: 90 A
Body Type: Cylindrical
Class: J
Frequency Rating: 50/60 Hz
Indicating/Non-Indicating: Non-Indicating
$683.40/5EA
- Non-indicating or solid state SmartSpot visual blown fuse indicator
- Time delay for motor starting and transformer inrush
- 300 kA interrupting rating - self-certified, UL witnessed tests
- Extremely current limiting for low peak let-thru current
- Non-indicating fuses suitable for use in NEC class I division 2 hazardous locations
- Recommended for Arc Flash energy reduction
- Small footprint requires less mounting space and allows smaller, more economical fuse blocks
- Easy 2-to-1 selectivity for prevention of nuisance shutdowns
- Unique Class J dimensions prevent replacement errors
- High-visibility orange label gives instant brand recognition
- Metal-embossed date and catalog number for traceability and lasting identification
- Fiberglass body provides dimensional stability in harsh industrial settings
- High-grade silica filler ensures fast arc quenching
- Silver-plated copper terminal
Specifications
Brand: Mersen
Amperage Rating: 90 A
Body Type: Cylindrical
Class: J
Frequency Rating: 50/60 Hz
Indicating/Non-Indicating: Non-Indicating
Interrupt Rating: 200 kA AC/100 kA DC
Rejection/Non-Rejection: Non-Rejection
Series: AJT
Terminal Type: Blade
Type: Low Voltage Time Delay
Voltage Rating: 600 VAC/500 VDC
Country of origin: MX
Material: Glass Melamine Laminate
Mounting type: Bolted/Clip
Manufacturer Name: MERSEN
UNSPSC: 39121604
UPC: 00782001497811
Mersen AJT90N Amp-Trap 2000 Power Fuse
Mersen Amp-Trap 2000 Power Fuse, Low Voltage Time Delay, Series: AJT, Non-Indicating, Non-Rejection, 90 A, 600 VAC/500 VDC, 200 kA AC/100 kA DC Interrupt, Class: J, 50/60 Hz Frequency, Blade Terminal, Bolted/Clip Mounting, Cylindrical Body, Dual Element, Glass Melamine Laminate, 1-1/16 in Dia x 4-5/8 in L Body
Additional Description: MERS-AJT90N 600V 90A J TD NON-IND 600VAC 400VDC 90A BLADE
Catalog Description: Fuse AJT - Class J - Time-delay 600VAC 400VDC 90A Blade Amp-Trap 2000®
Item FeaturesMotor Circuits, Mains, Feeders, Branch Circuits, Lighting, Heating and General Loads, Transformers, Control Panels, Circuit Breaker Back-Up, Bus Duct and Load Centers
Item Features
Item FeaturesIEC 60269-2-1|CSA C22.2 No. 248.8|CSA Class 1422-02 Guide 012636|DC Listed to UL 248|RoHS Compliant|UL 248-8 File No. E2137
