Part Number # FSPDB1A
SKU # 1277107
Image Disclaimers Message
FSPDB1A

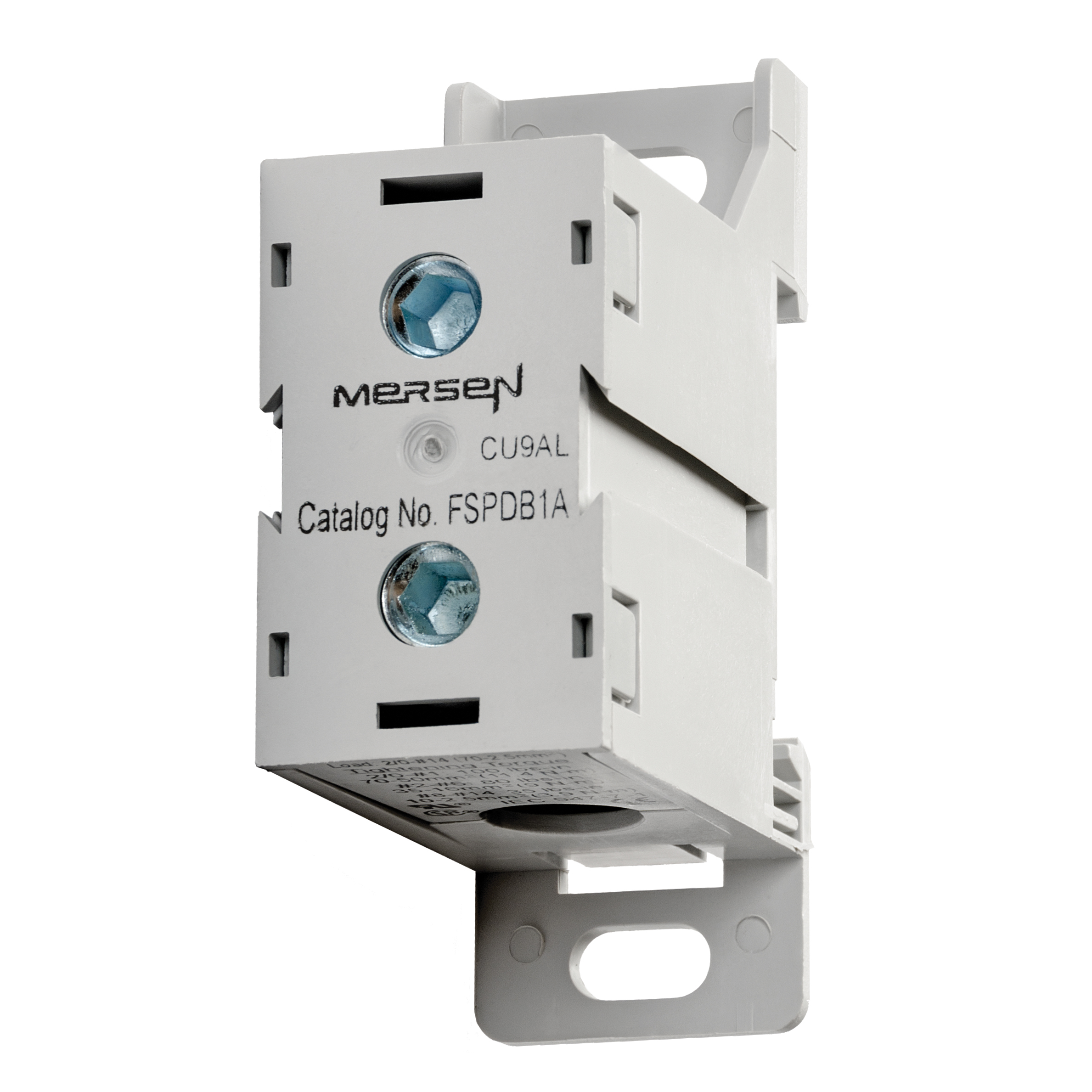

Mersen FSPDB1A Power Distribution Block
Part Number # FSPDB1A
SKU # 1277107
$111.09 / 3Each
Typical price:$255.98 / Each
Mersen FSPDB1A Key Features
| Brand: | Mersen |
|---|---|
| Part Number # : | FSPDB1A |
| SKU #: | 1277107 |
| Amperage Rating: | 175, 175 A |
| Dimensions: | 2.86 in H x 1 in W x 1.95 in D |
| Finish: | Tin Plated |
| Number of Poles: | 1 |
| Short Circuit Current Rating (kA): | 100, 100 kA |
| Type: | Finger Safe |
| Wire Size: | 14 to 2/0, 14 to 2/0 AWG |
| Color: | Gray |
| Country of origin: | MX |
| Manufacturer Name: | MERSEN |
| UNSPSC: | 39121410 |
| UPC: | 00782001319588 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$111.09 / 3Each
Typical price:$255.98 / Each
Quantity:
- Mersen Power Distribution Block, Finger Safe, 600 V AC, 175 A, 1 Pole, 1 Primary Connections/Pole, 1 Secondary Connection/Pole, 14 to 2/0 AWG Wire, 100 kA Short Circuit Current Rating, Tin Plated, Gray, 2.86 in H x 1 in W x 1.95 in D
FSPDB1A Item Features
- Finger-safe protection fully insulated block ensures that no one can touch live parts
- Recessed termination screws and wire openings provide IP20 grade protection and qualify as finger-safe per IEC 529
- Compact modularity single or multiple pole configurations in the most compact footprint
- Allows users to build smaller or higher density panels
- Snap on DIN-rail mounting sizes 1 to 4 feature integral DIN rail adaptors allowing for quick and easy installations on 35 mm DIN rail yielding lower installed costs
- Captive termination screws unique channel design ensures captive metric wire termination screws
- Tin-plated aluminum contact
- Box connection terminal
- DIN/screw mount
FSPDB1A Standards
RoHS Compliant|UL Guide XCFR2|UL File No. E73571|CSA Class 6228/6936|CE Certified|IEC 947-7-1/529/68-2-6SKU #1277107Part Number #FSPDB1AUNSPSC39121410UPC00782001319588
