Part Number # FSPDB5A
SKU # 2141395
FSPDB5A

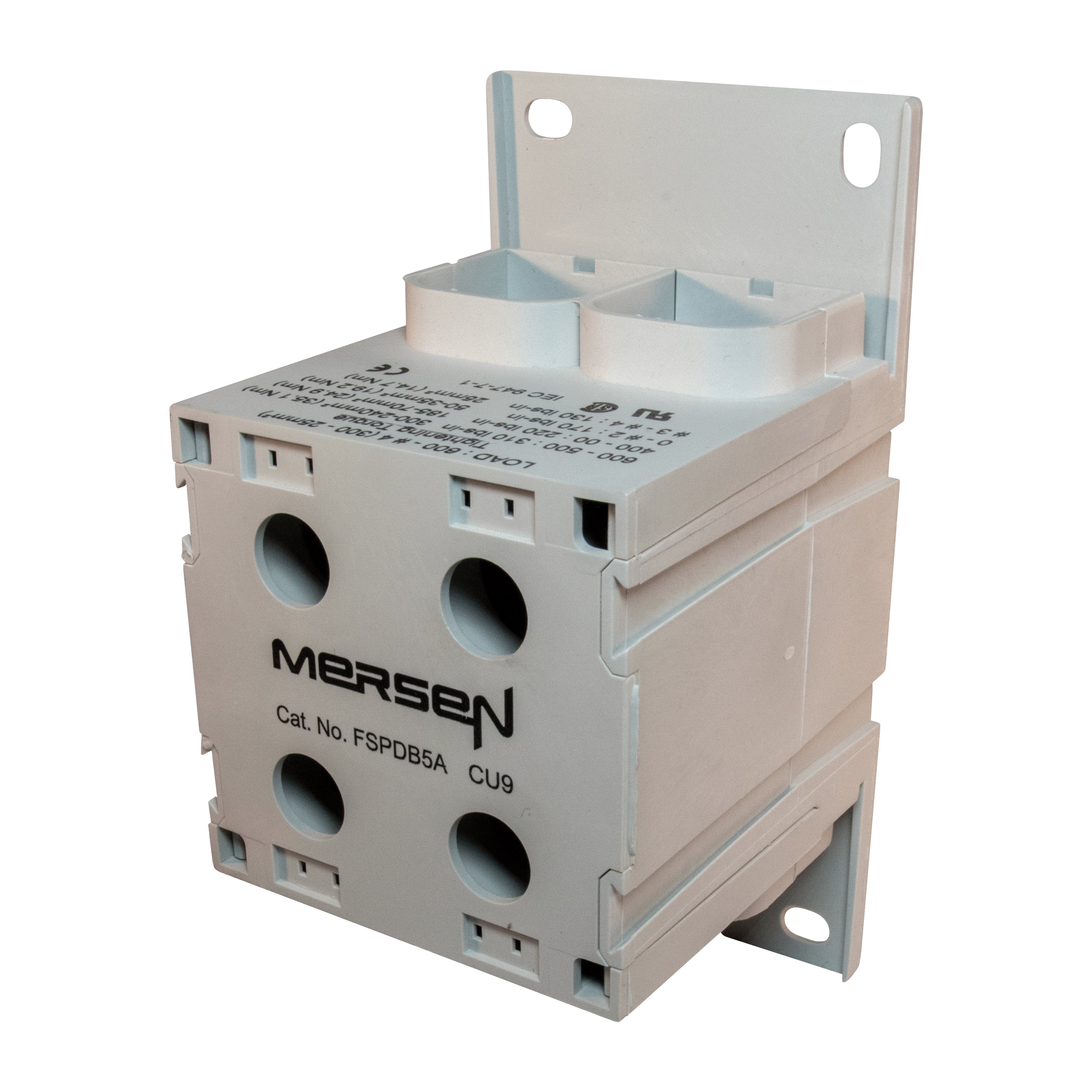

Mersen FSPDB5A Power Distribution Block
Part Number # FSPDB5A
SKU # 2141395
Mersen FSPDB5A Key Features
| Brand: | Mersen |
|---|---|
| Part Number # : | FSPDB5A |
| SKU #: | 2141395 |
| Amperage Rating: | 840 |
| Dimensions: | 5.71 in H x 2.84 in W x 3.15 in D |
| Type: | Finger Safe |
| Wire Size: | 4 AWG to 600 kcmil |
| UNSPSC: | 39121410 |
| UPC: | 00782001319663 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Mersen FSPDB5A Power Distribution Block
Brand: Mersen
Part Number: FSPDB5A
Mersen Power Distribution Block, Finger Safe, 600 VAC, 840 A, 1 Pole, 2 Primary Connections/Pole, 2 Secondary Connection/Pole, 4 AWG to 600 kcmil Wire, 100 kA Short Circuit Current Rating, Tin Plated, Gray, 5.71 in H x 2.84 in W x 3.15 in D
Additional Description: MERS-FSPDB5A Finger safe Al PDB (2) 600kcmi 840A Tin-plated Aluminum 1-Pole 2 - 2
Catalog Description: FSPDB Series UL 1059 Finger-Safe Power Distribution Block 600V 840A - 840A Tin-plated Aluminum 1-Pole 2 - 2 openings; 600 - #4 --- 600 - #4
FSPDB5A Item Features
- Finger-safe protection fully insulated block ensures that no one can touch live parts
- Recessed termination screws and wire openings provide IP20 grade protection and qualify as finger-safe per IEC 529
- Compact modularity single or multiple pole configurations in the most compact footprint
- Allows users to build smaller or higher density panels
- Snap on DIN-rail mounting sizes 1 to 4 feature integral DIN rail adaptors allowing for quick and easy installations on 35 mm DIN rail yielding lower installed costs
- Captive termination screws unique channel design ensures captive metric wire termination screws
- Tin-plated aluminum contact
- Box connection terminal
- DIN/screw mount
FSPDB5A Standards
RoHS Compliant|UL Guide XCFR2|UL File No. E73571|CSA Class 6228/6936|CE Certified|IEC 947-7-1/529/68-2-6SKU #2141395Part Number #FSPDB5AUNSPSC39121410UPC00782001319663
Image provided may only be a representation of final product and may include optional equipment
