Part Number # 60307T
SKU # 2466288
Brand: Mersen
60307T
Mersen Fuses 60307T
Part Number # 60307T
SKU # 2466288
$320.50 / 5Each
Typical price:$738.43 / Each
Mersen 60307T Key Features
| Brand: | Mersen |
|---|---|
| Part Number # : | 60307T |
| SKU #: | 2466288 |
| Amperage Rating: | 30 A |
| Class: | T |
| Dimensions: | 3.13 in H x 1.84 in W x 1.56 in D |
| Number of Phases: | 2 |
| Number of Poles: | 2 |
| Suitable For Use With: | A3T/A6T Fuse |
| Temperature Rating (Degrees F): | 125 deg C |
| Type: | Open Style |
| Wire Size: | 14 to 2 AWG |
| Connection type: | Box |
| Country of origin: | MX |
| Material: | GFPC |
| Mounting type: | DIN Rail/Threaded |
| Manufacturer Name: | MERSEN |
| UNSPSC: | 39121629 |
| UPC: | 00782001675516 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$320.50 / 5Each
Typical price:$738.43 / Each
Quantity:
Mersen Fuses 60307T
Brand: Mersen
Part Number: 60307T

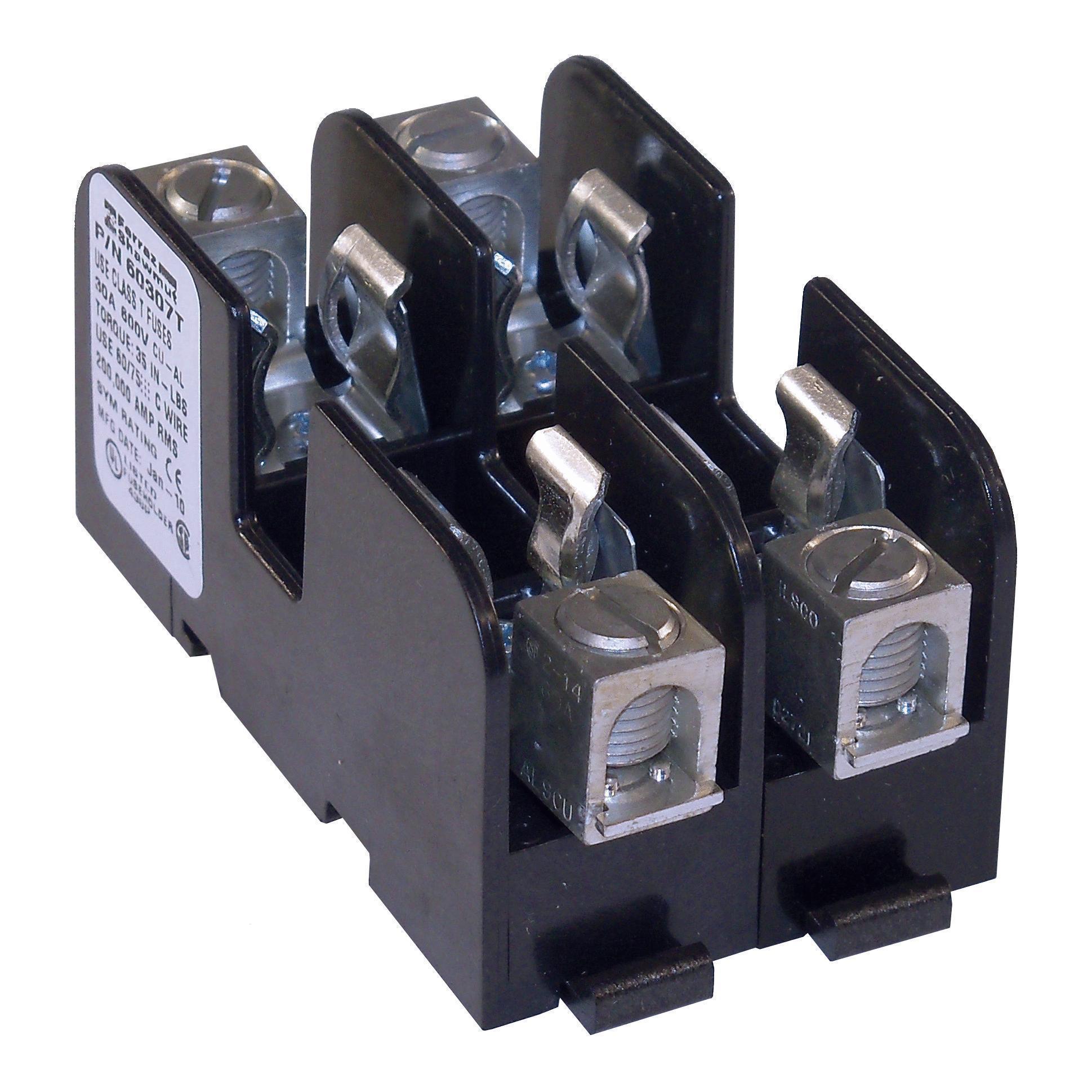

Ferraz Shawmut Fuse Block, Open Style, 600 VAC/300 VDC, 30 A, 2 Pole, 2 ph, Class: T, Box Connection, 14 to 2 AWG Wire, DIN Rail/Threaded Mounting, 125 deg C, For Use With: A3T/A6T Fuse, GFPC, 3.13 in H x 1.84 in W x 1.56 in D Dimensions
Additional Description: MERS-60307T 67551-FB 2P 600V-30A AL BOX
Catalog Description: Fuse Block 600VAC 600VDC Class T 30A 2-Pole Box with Reinforced Clip
60307T Item Features
- Unique integral DIN rail adapters for 600 VAC, 30 and 60 A blocks
- Full barrier design (30 and 60 A) increases pole to pole safety
- Unique adder block design (30 and 60 A) for design flexibility
- Spring reinforcing standard for all 30 and 60 A clips
- Features high conductivity copper alloy fuse clips
- Cool running high amperage (100 to 600 A) connectors
60307T Standards
RoHS Compliant|UL 4248-15 Guide IZLT File No. E52283|UL 4248-15 Guide IZLT2 File No. E52283 Recognized|CSA C22.2 Class 6225-01 File No. 32169_0_000|CE CertifiedSKU #2466288Part Number #60307TUNSPSC39121629UPC00782001675516
