Part Number # A70P900-4
SKU # 2448792
Image Disclaimers Message
A70P900-4
Mersen Fuses A70P900-4
Part Number # A70P900-4
SKU # 2448792
$1352.92 / Each
Typical price:$3238.58 / Each
Mersen A70P900-4 Key Features
| Brand: | Mersen |
|---|---|
| Part Number # : | A70P900-4 |
| SKU #: | 2448792 |
| Amperage Rating: | 900 A |
| Body Type: | Cylindrical |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 100 kA |
| Rejection/Non-Rejection: | Non-Rejection |
| Response Time: | 10 ms |
| Series: | A70P |
| Terminal Type: | Bolted |
| Type: | Current Limiting High Speed |
| Country of origin: | MX |
| Material: | Fiber |
| Mounting type: | Bolt |
| Manufacturer Name: | MERSEN |
| UNSPSC: | 0 |
| UPC: | 00782001947538 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1352.92 / Each
Typical price:$3238.58 / Each
Quantity:

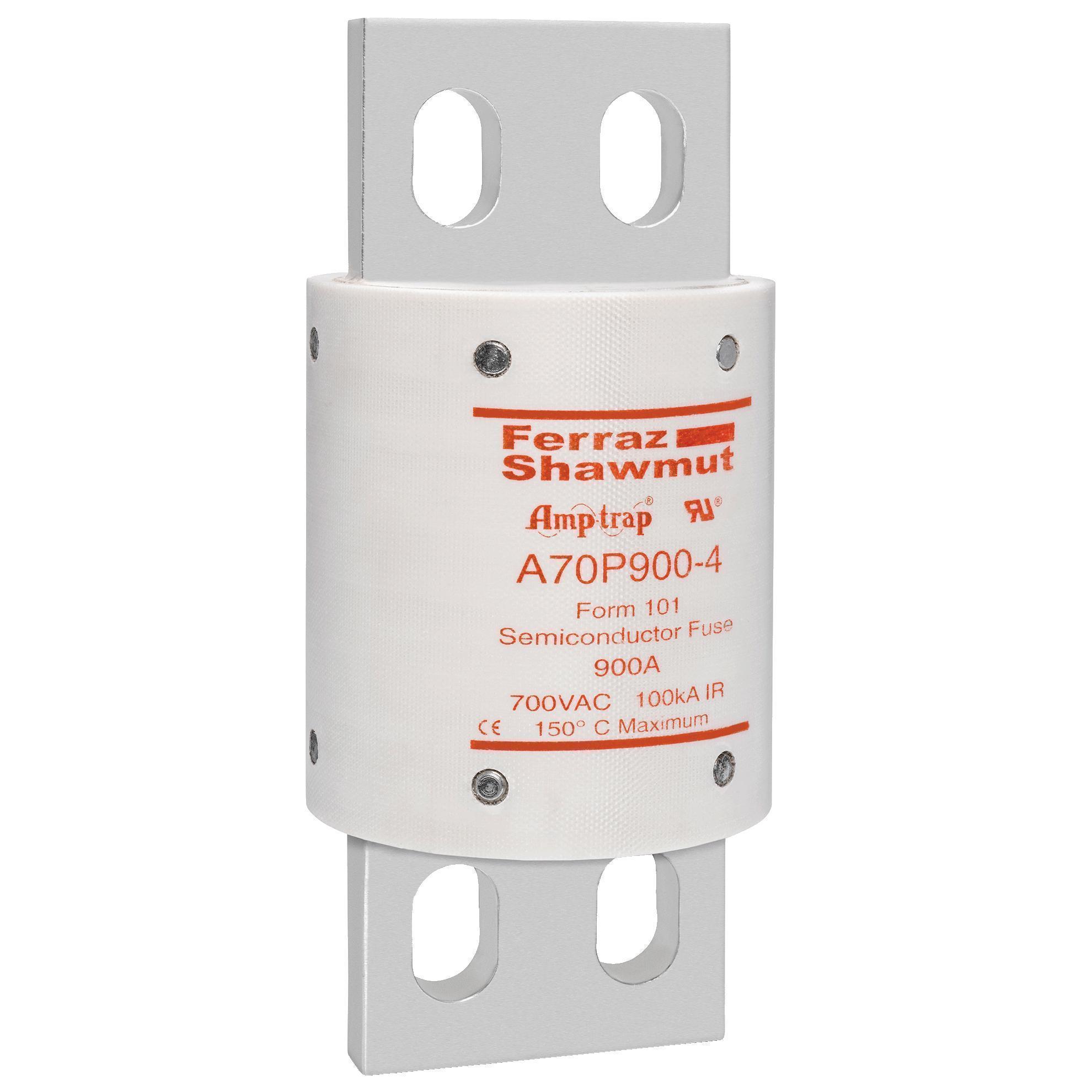

- Mersen AMP-TRAP Semiconductor Fuse, Current Limiting High Speed, Series: A70P, Non-Indicating, Non-Rejection, 900 A, 700 V AC/650 V DC, 100 kA Interrupt, 10 ms Response, Bolted Terminal, Bolt Mounting, Cylindrical Body, Fiber, 3.5 in Dia x 7.59 in L Body
A70P900-4 Application
For protection of 700 V or less DC drives, UPS, inverters and reduced voltage startersA70P900-4 Item Features
- Low I2T minimizes damage to protected components on short circuit
- Controlled arc voltage reduces stress to circuit components during fuse clearing
- Choice of mounting types helps in equipment design
- Very fast acting
- North American round style
- Tin-plated copper, tin-plated brass and silver-plated copper contact
A70P900-4 Standards
RoHS Compliant|UL File No. E60314|UL Guide No.JFHR2|UL 198L Parameters (10-800A)SKU #2448792Part Number #A70P900-4UNSPSC0UPC00782001947538
