Part Number # FEB-81-81-BA
SKU # 2459382
FEB-81-81-BA
Mersen Fuses FEB-81-81-BA
Part Number # FEB-81-81-BA
SKU # 2459382
$2259.80 / 10Each
Typical price:$4165.35 / Each
Mersen FEB-81-81-BA Key Features
| Brand: | Mersen |
|---|---|
| Part Number # : | FEB-81-81-BA |
| SKU #: | 2459382 |
| Class: | Midget |
| Dimensions: | 9 in L |
| Fuse Diameter: | 13/32 in |
| Fuse Length: | 1-1/2 in |
| Series: | FEB |
| Suitable For Use With: | ATQ, ATM, TRM, OTM, GGU, GFN, A13X-2, A25Z-2, A60Q-2, A6Y-2B Series Midget Fuse |
| Temperature Rating (Degrees F): | 155 deg C |
| Type: | Breakaway |
| Wire Size: | 12 to 2 AWG |
| Connection type: | Single Setscrew |
| Mounting type: | In-Line |
| UNSPSC: | 39121624 |
| UPC: | 00782001300937 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2259.80 / 10Each
Typical price:$4165.35 / Each
Quantity:

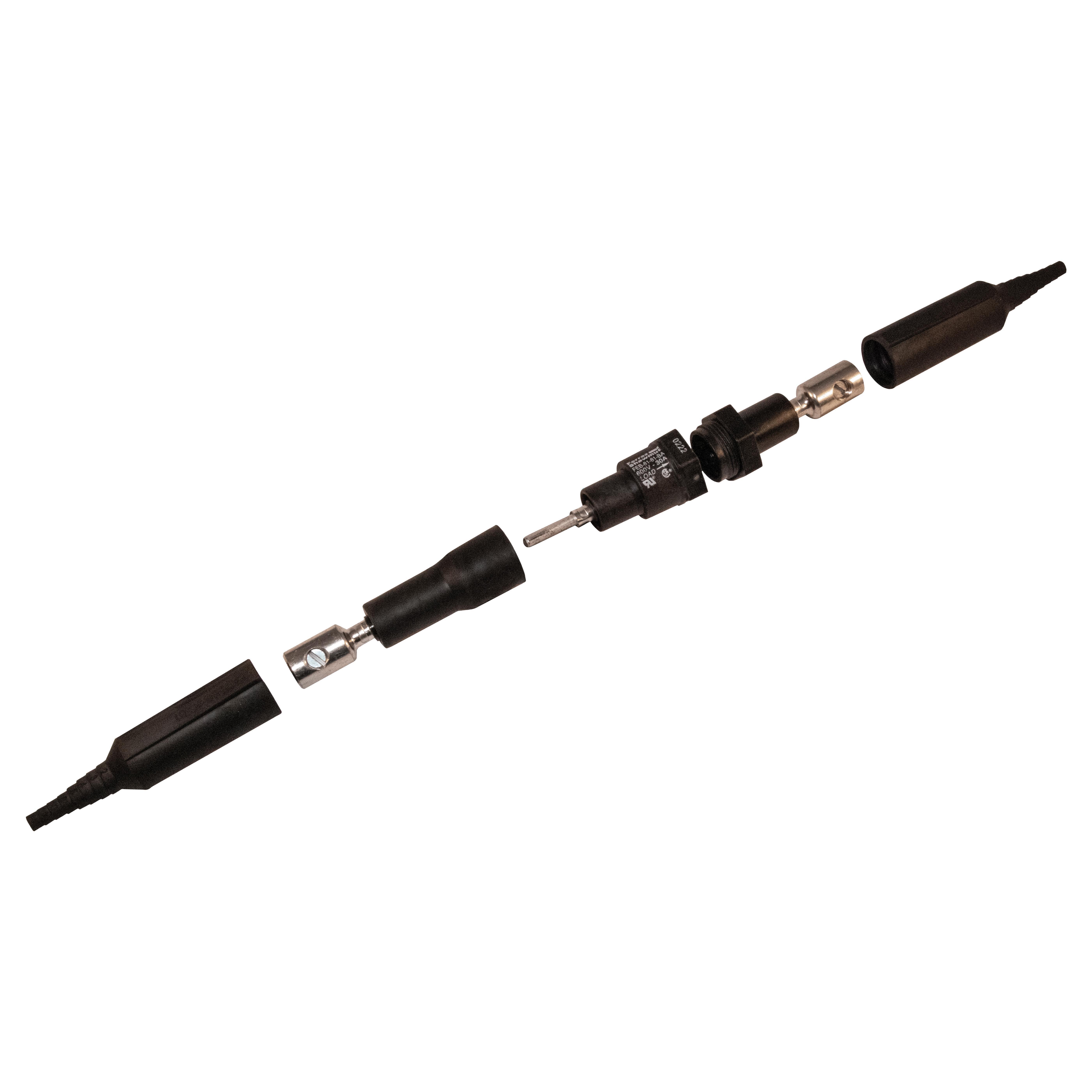

- Mersen Fuse Holder, Breakaway, Series: FEB, 600 V AC/DC, 30 A, 1 Poles, 1 Phase, Class: Midget, Single Setscrew, 12 to 2 AWG Wire, In-Line Mount, 1-1/2 in Fuse Length, 13/32 in Fuse Dia, 155 deg C, For Use With: ATQ, ATM, TRM, OTM, GGU, GFN, A13X-2, A25Z-2, A60Q-2, A6Y-2B Series Midget Fuse, Polyethylene, 9 in L
FEB-81-81-BA Application
Street Lighting, Parking Lot Lighting, Traffic Signaling, Sports Lighting, Boats and Marinas and Humid/Corrosive EnvironmentsFEB-81-81-BA Item Features
- Breakaway version quickly disconnects line side during pole knockdown in compliance with state and federal highway commission standards
- (3) O-rings per pole for watertight applications
- Colored O-rings for quick detection
- Accepts midget or class CC fuses
- Wide assortment of terminal variations
- High heat, impact resistant insulator
- Captive nut or screw for quick installations
- Polarized dual pole provides simultaneous disconnection
- Tulip fuse clip for improved contact and low losses
- Permanently installed neutral versions quickly identified by white nuts
- Environmentally friendly no-lead solder used
- Highly visible catalog number even with insulation boots installed
- Wire gauge size identified on insulation boots for quick, accurate trimming
- (1) 12 to 2 AWG solid/stranded single set screw copper terminal type 81 wire size
FEB-81-81-BA Standards
RoHS Compliant|UL Listed|UL Recognized|UL 4248-4 IZLT2 File No. E52283|CSA Certified|CSA C22.2 Class 6225 File No. 32169SKU #2459382Part Number #FEB-81-81-BAUNSPSC39121624UPC00782001300937
Image provided may only be a representation of final product and may include optional equipment
