MPDB66053
Mersen Fuses MPDB66053
Part Number # MPDB66053
SKU # 2467182
$1337.90 / 2Each
Typical price:$3082.54 / Each
Mersen MPDB66053 Key Features
| Brand: | Mersen |
|---|---|
| Part Number # : | MPDB66053 |
| SKU #: | 2467182 |
| Dimensions: | 5.28 in W x 5 in D x 3.25 in H |
| Series: | MPDB |
| Type: | Intermediate Open Style |
| Manufacturer Name: | MERSEN |
| UNSPSC: | 39121410 |
| UPC: | 00782001453596 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1337.90 / 2Each
Typical price:$3082.54 / Each
Quantity:

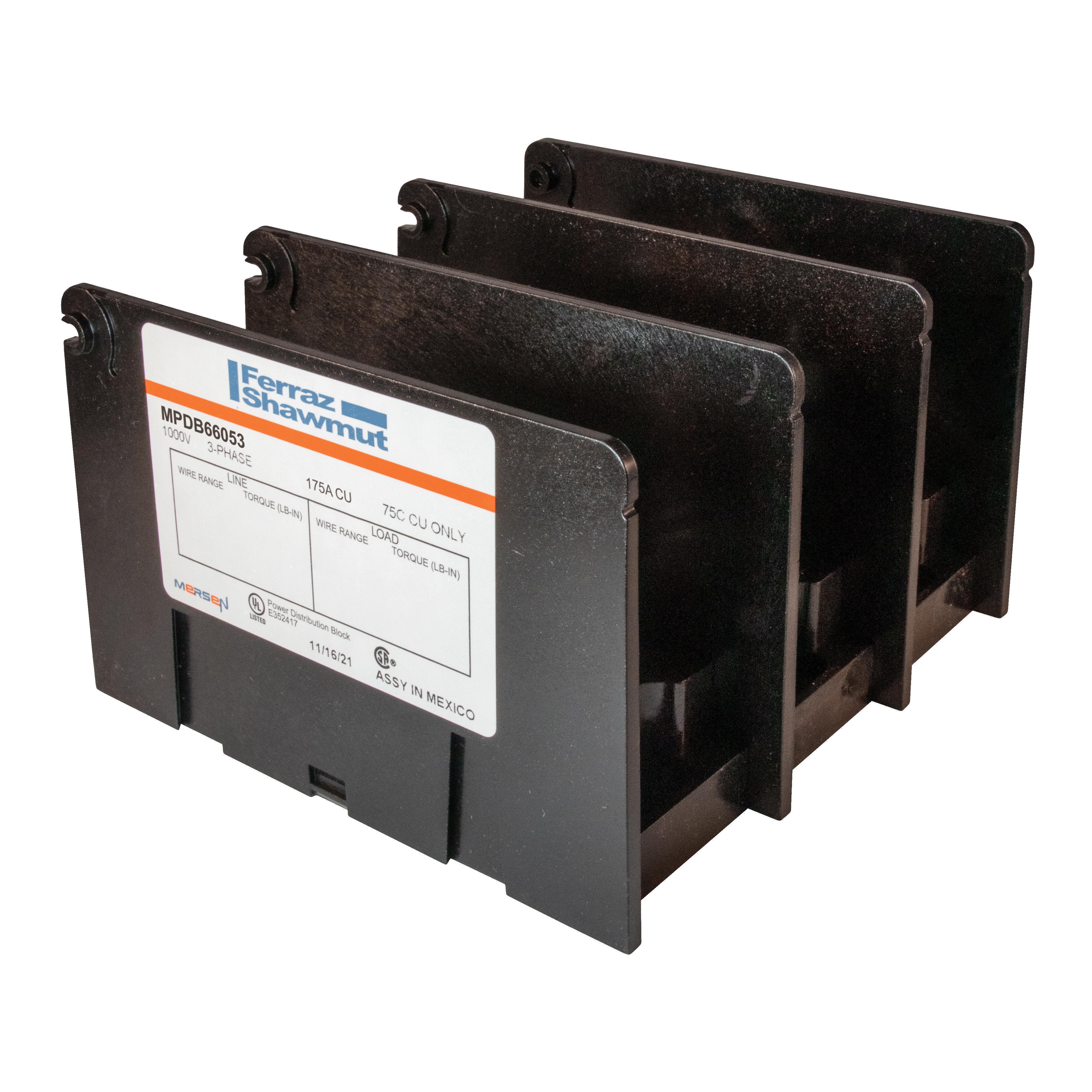

- Mersen Power Distribution Block, Intermediate Open Style, Series: MPDB, 600 V AC, 175 A, 3 Pole, 1 Primary Connections/Pole, 1 Secondary Connection/Pole, 14 to 2/0 AWG Wire, 100 kA Short Circuit, Polycarbonate, TiN Coated, Black, 5.28 in W x 5 in D x 3.25 in H Dimensions
MPDB66053 Application
Cable Splicing, Splitting Primary Power into Secondary Circuits, Fixed Junction and Tap-Off Point ApplicationsMPDB66053 Item Features
- Aluminum connectors accept both aluminum or copper wire while copper connectors accept copper wire only and all 1-piece tin plated
- Connectors are all 1-piece tin-plated
- Insulators are virtually unbreakable, made of glass-filled polycarbonate
- See-through, hinged safety covers provide a greater degree of safety and shock resistance where required
- Hinged covers can be installed without tools
- 1 in through air and 2 in over surface between uninsulated live parts of opposite polarity meets requirements for feeder and branch circuit applications of UL508A
- Polycarbonate safety covers provide dead-front protection
- One cover is needed for each pole
- Each cover has a test probe hole in the center for circuit checking
- 14 to 2/0 AWG Cu line/load
MPDB66053 Standards
RoHS Compliant|UL File No. E352417|CSA Class 6228-01 File No. 069363_0_000|CE Marked|UL94-V0SKU #2467182Part Number #MPDB66053UNSPSC39121410UPC00782001453596
Image provided may only be a representation of final product and may include optional equipment
