Part Number # MPDB66261
SKU # 2457807

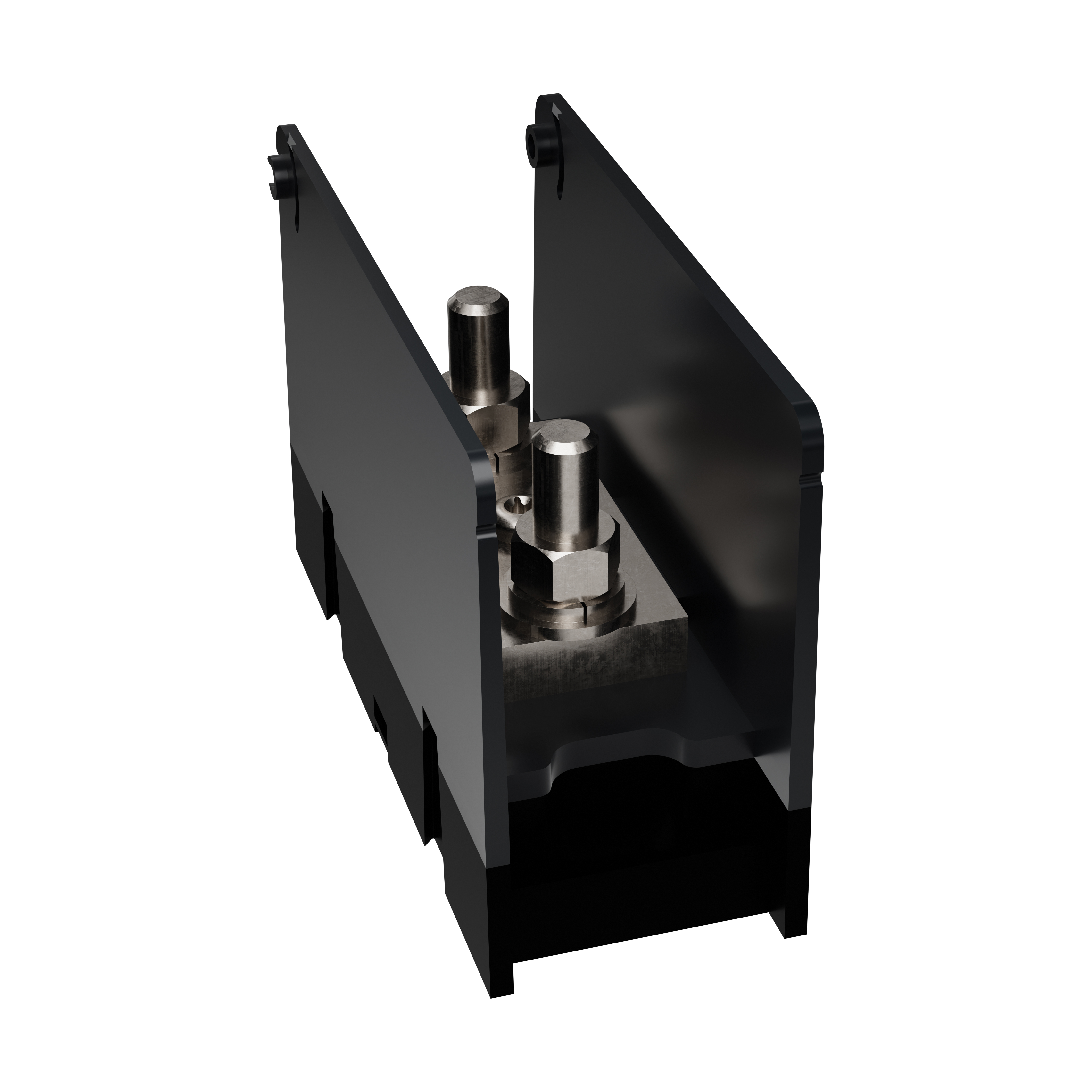

Image provided may only be a representation of
final product and may include optional equipment
MPDB66261
Mersen Fuses MPDB66261
Part Number # MPDB66261
SKU # 2457807
Mersen MPDB66261 Key Features
| Brand: | Mersen |
|---|---|
| Part Number # : | MPDB66261 |
| SKU #: | 2457807 |
| Amperage Rating: | 400 A |
| Dimensions: | 3.25 in H x 1.85 in W x 5 in D |
| Number of Poles: | 1 |
| Series: | MPDB |
| Short Circuit Current Rating (kA): | 100 kA |
| Type: | Intermediate Open Style |
| Wire Size: | 3/8-16 x 1-1/8 in |
| Country of origin: | MX |
| Material: | Polycarbonate |
| Manufacturer Name: | MERSEN |
| UNSPSC: | 39121410 |
| UPC: | 00782001451462 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Mersen Fuses MPDB66261
Brand: Mersen
Part Number: MPDB66261
Ferraz Shawmut Power Distribution Block, Intermediate Open Style, Series: MPDB, 600 VAC, 400 A, 1 Pole, 1 Primary Connections/Pole, 1 Secondary Connection/Pole, 3/8-16 x 1-1/8 in Wire, 100 kA Short Circuit Current, Polycarbonate, Black, 3.25 in H x 1.85 in W x 5 in D
Additional Description: MERS-MPDB66261 PWR DIS BLK CU INT 400A 1P 1S
Catalog Description: Open-Style PDB UL 1953 1000V Tin-plated Copper - 400A 1-Pole 1 - 1 openings; 3/8-16 x 1-1/8 --- 3/8-16 x 1-1/8 Stud to Stud
MPDB66261 Application
Cable Splicing, Splitting Primary Power into Secondary Circuits, Fixed Junction Tap-Off PointsMPDB66261 Item Features
- Aluminum connectors accept both aluminum or copper wire while copper connectors accept copper wire only
- Connectors are all 1-piece tin plated
- Insulators are virtually unbreakable, made of glass-filled polycarbonate
- See-through, hinged safety covers provide a greater degree of safety and shock resistance where required
- Hinged covers can be installed without tools
- 1 in through air and 2 in over surface between uninsulated live parts of opposite polarity meets requirements for feeder and branch circuit applications of UL 508A
- Polycarbonate safety covers provide dead-front protection
- One cover is needed for each pole
- Each cover has a test probe hole in the center for circuit checking
- 3/8-16 x 1-1/8 in Cu line/load
MPDB66261 Standards
RoHS Compliant|UL File No. E352417|CSA Class 6228-01, File No. 069363_0_000|CE Certified|UL94-V0 FlammabilitySKU #2457807Part Number #MPDB66261UNSPSC39121410UPC00782001451462
