Part Number # MPDB66263
SKU # 2457809

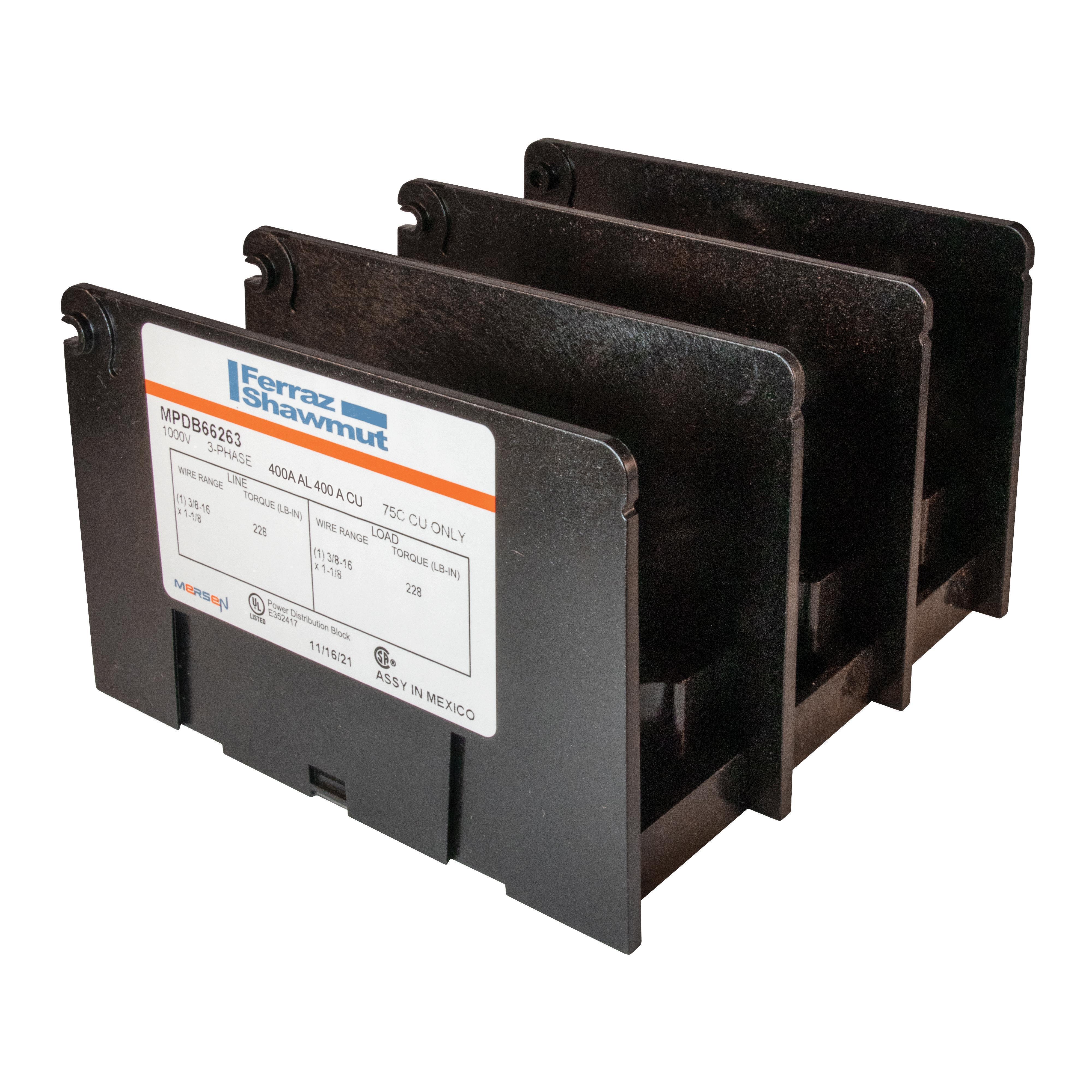

Image provided may only be a representation of
final product and may include optional equipment
MPDB66263
Mersen Fuses MPDB66263
Part Number # MPDB66263
SKU # 2457809
Mersen MPDB66263 Key Features
| Brand: | Mersen |
|---|---|
| Part Number # : | MPDB66263 |
| SKU #: | 2457809 |
| Amperage Rating: | 400 A |
| Dimensions: | 5.28 in W x 5 in D x 3.25 in H |
| Finish: | TiN Coated |
| Number of Poles: | 3 |
| Series: | MPDB |
| Short Circuit Current Rating (kA): | 100 kA |
| Type: | Intermediate Open Style |
| Country of origin: | MX |
| Material: | Polycarbonate |
| Manufacturer Name: | MERSEN |
| UNSPSC: | 39121410 |
| UPC: | 00782001451486 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Mersen Fuses MPDB66263
Brand: Mersen
Part Number: MPDB66263
Ferraz Shawmut Power Distribution Block, Intermediate Open Style, Series: MPDB, 600 VAC, 400 A, 3 Pole, 1 Primary Connections/Pole, 1 Secondary Connection/Pole, 100 kA Short Circuit, Polycarbonate, TiN Coated, Black, 5.28 in W x 5 in D x 3.25 in H Dimensions
Additional Description: MERS-MPDB66263 PWR DIS BLK CU INT 400A 3P 1S
Catalog Description: Open-Style PDB UL 1953 1000V Tin-plated Copper - 400A 3-Pole 1 - 1 openings; 3/8-16 x 1-1/8 --- 3/8-16 x 1-1/8 Stud to Stud
MPDB66263 Application
Cable Splicing, Splitting Primary Power into Secondary Circuits, Fixed Junction and Tap-Off Point ApplicationsMPDB66263 Item Features
- Adder poles can be stacked to form multi-pole units in the field without the use of tools, adder poles allow for customization of primary and secondary wire combinations
- Aluminum connectors accept both aluminum or copper wire while copper connectors accept copper wire only and all 1-piece tin plated
- Insulators are virtually unbreakable, made of glass-filled polycarbonate, see-through hinged safety covers are optional and provide a greater deg of safety and shock resistance where required, hinged covers can be installed without tools
- 1 in through air and 2 in over surface between uninsulated live parts of opposite polarity meets requirements for feeder and branch circuit applications of UL508A
- Polycarbonate safety covers provide dead-front protection
- Each cover has a test probe hole in the center for circuit checking
- Tin plated copper contact
- One cover is needed for each pole
MPDB66263 Standards
RoHS Compliant|UL 1953 File No. E352417|CSA Class 6228-01SKU #2457809Part Number #MPDB66263UNSPSC39121410UPC00782001451486
