Part Number # MPDB66273
SKU # 2458967
Brand: Mersen
MPDB66273
Mersen Fuses MPDB66273
Part Number # MPDB66273
SKU # 2458967
$240.78 / Each
Typical price:$554.75 / Each
Mersen MPDB66273 Key Features
| Brand: | Mersen |
|---|---|
| Part Number # : | MPDB66273 |
| SKU #: | 2458967 |
| Amperage Rating: | 155 A |
| Dimensions: | 3.25 in H x 5.28 in W x 5 in D |
| Number of Poles: | 3 |
| Series: | MPDB |
| Short Circuit Current Rating (kA): | 100 kA |
| Type: | Intermediate Open Style |
| Wire Size: | 1/4-20 x 1-5/16 in |
| Country of origin: | MX |
| Material: | Polycarbonate |
| Manufacturer Name: | MERSEN |
| UNSPSC: | 39121410 |
| UPC: | 00782001454098 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$240.78 / Each
Typical price:$554.75 / Each
Quantity:

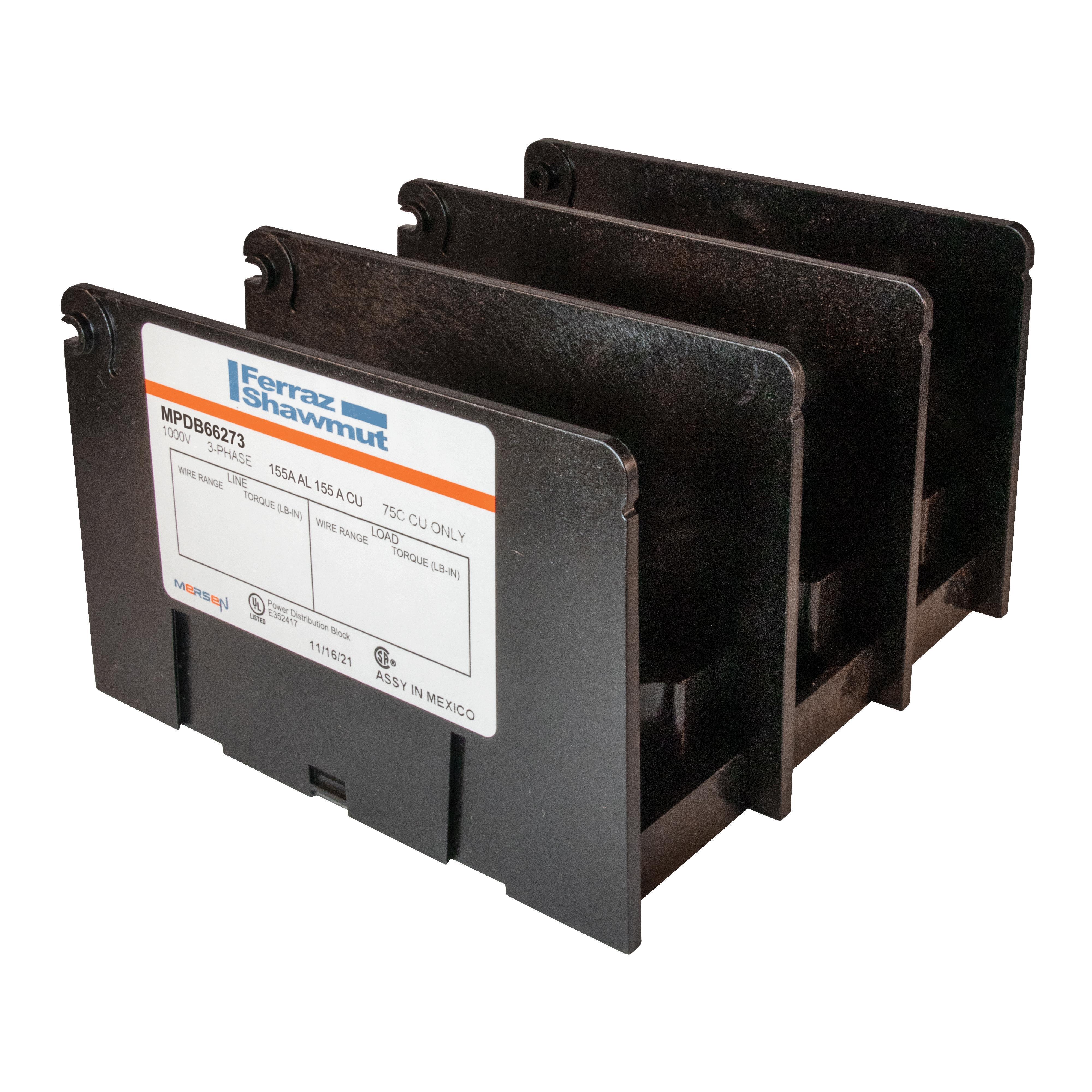

- Mersen Power Distribution Block, Intermediate Open Style, Series: MPDB, 600 V AC, 155 A, 3 Poles, 1 Primary Connections/Pole, 1 Secondary Connection/Pole, 1/4-20 x 1-5/16 in Wire, 100 kA Short Circuit Current, Polycarbonate, Black, 3.25 in H x 5.28 in W x 5 in D
MPDB66273 Application
Cable Splicing, Splitting Primary Power into Secondary Circuits, Fixed Junction Tap-Off PointsMPDB66273 Item Features
- Aluminum connectors accept both aluminum or copper wire while copper connectors accept copper wire only
- Connectors are all 1-piece tin plated
- Insulators are virtually unbreakable, made of glass-filled polycarbonate
- See-through, hinged safety covers provide a greater degree of safety and shock resistance where required
- Hinged covers can be installed without tools
- 1 in through air and 2 in over surface between uninsulated live parts of opposite polarity meets requirements for feeder and branch circuit applications of UL 508A
- Polycarbonate safety covers provide dead-front protection
- One cover is needed for each pole
- Each cover has a test probe hole in the center for circuit checking
MPDB66273 Standards
RoHS Compliant|UL File No. E352417|CSA Class 6228-01, File No. 069363_0_000|CE Certified|UL94-V0 FlammabilitySKU #2458967Part Number #MPDB66273UNSPSC39121410UPC00782001454098
Image provided may only be a representation of final product and may include optional equipment
